OPERATION DETAILED CONTROLS AND GAUGES
3-107

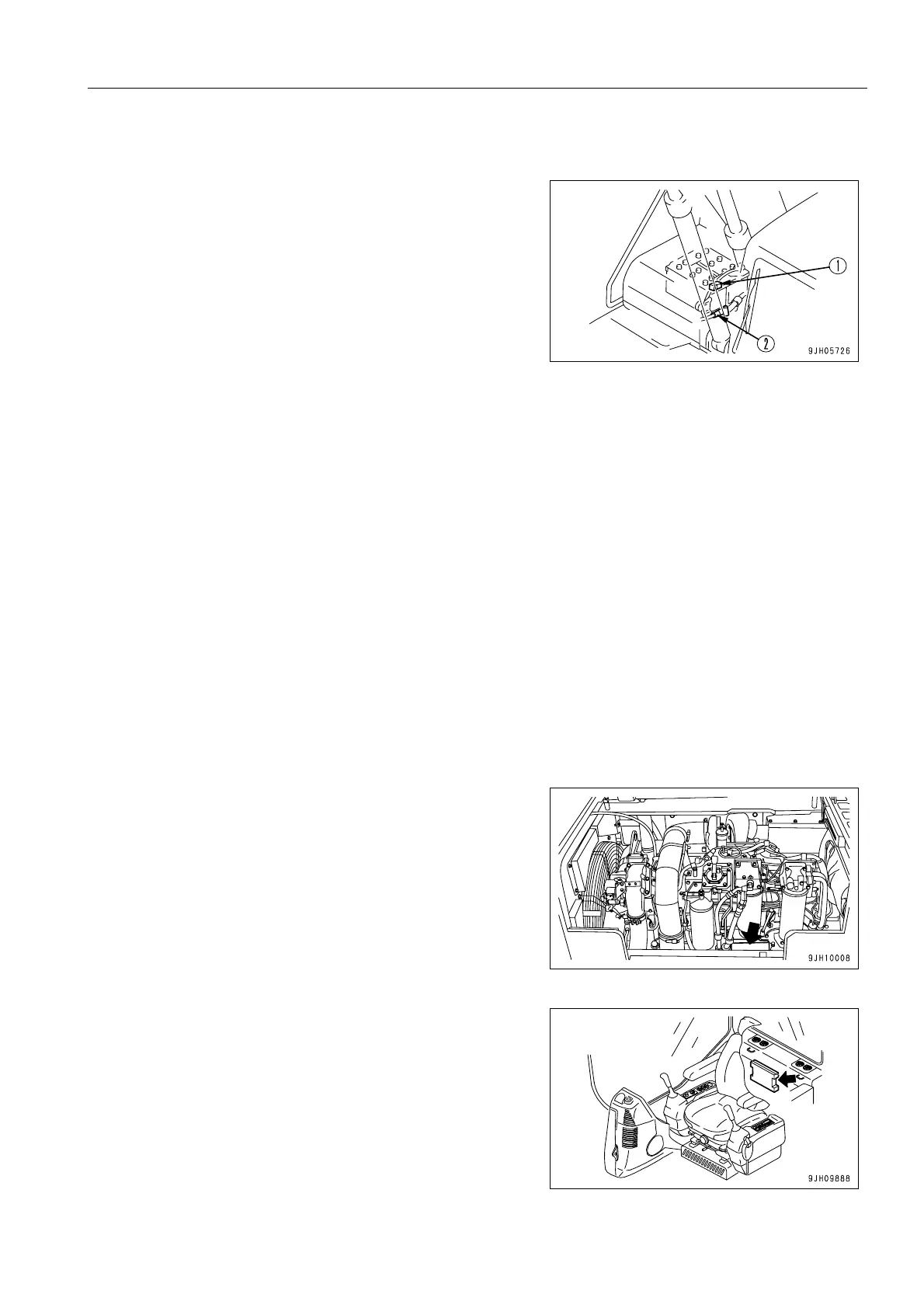

FUSIBLE LINK 3
If the starting motor does not turn when the starting switch is
turned to the START position, there is probably a disconnection
in fusible link (1) or (2). Open the battery box cover on the right
side of the chassis, then check and replace the fusible link.
(1): Fusible link for 24V power supply
(2): Fusible link for 24V permanent power supply
Fusible link (2) is taped to the nearby wiring harness. When
carrying out inspection or replacement, check the wiring har-
ness number.
REMARK
A fusible link refers to the large-sized fuse wiring installed in the high current flow portion of the circuit to protect
electrical components and wiring from burning, in the same way as an ordinary fuse.
CONTROLLER 3
Controller installed.
NOTICE
q Be careful not to get water, mud, or juice on the controller. This will cause failure.
q The engine controller has been given moisture prevention treatment, so there is no problem if rain
gets on it, but do not spray it with water when washing the machine.
q If any abnormality occurs in the controller, do not disassemble it yourself. Contact your Komatsu dis-
tributor for repairs.
q Engine controller
Open the front engine hood. It is under the fuel pre-filter.
q Pump controller
This is on the right side at the rear of the operator's seat.
