OPERATION MACHINE VIEW ILLUSTRATIONS
3-3

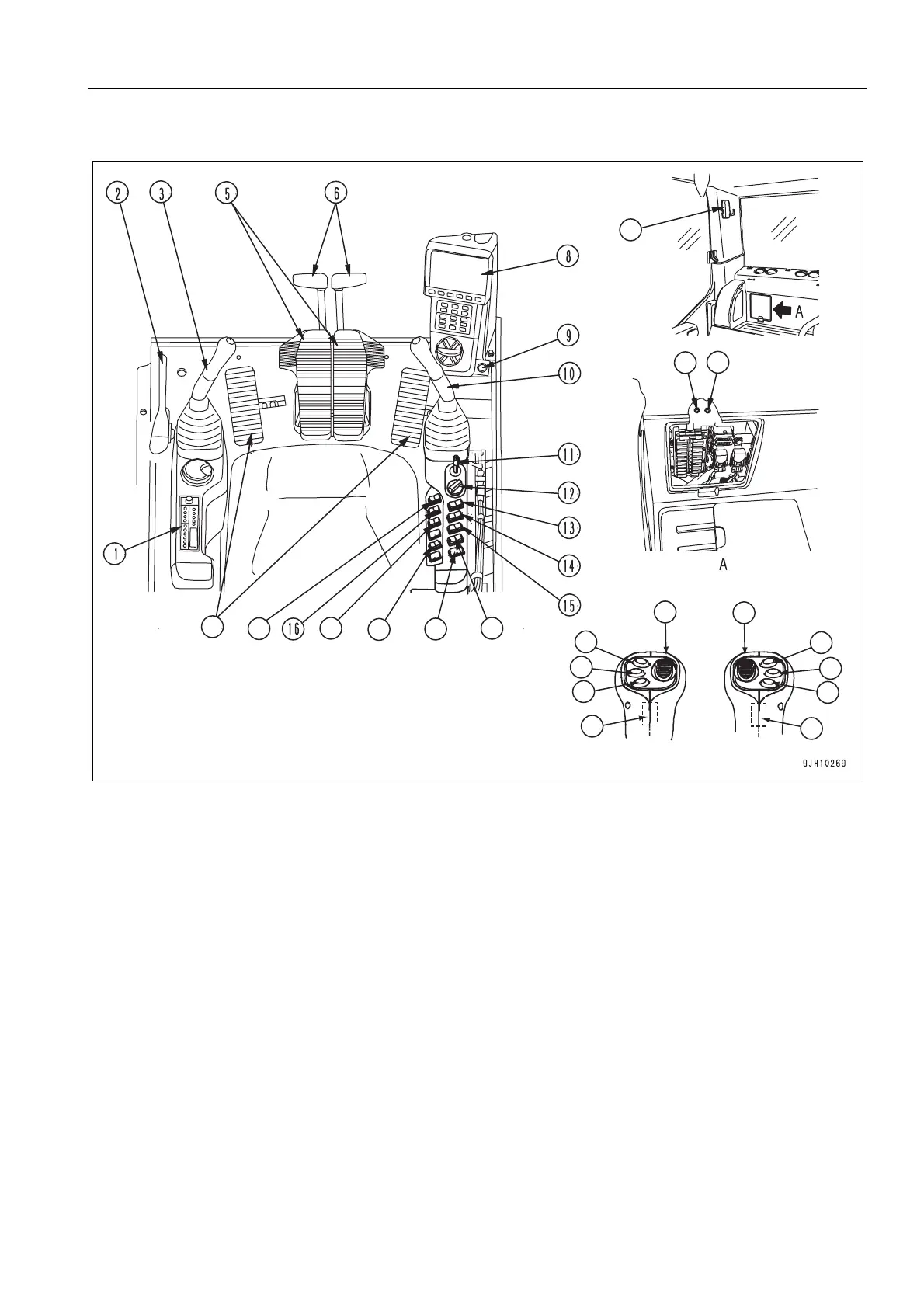

CONTROLS AND GAUGES 3
a
22
24
25
17
18
19
20
21
23
4
28
29
27
30
26
31
32
7
33
(1) Radio (18) Attachment control pedal (if equipped)
(2) Lock lever (19) Room lamp switch
(3) Left work equipment control lever (20) Emergency pump drive switch
(4) One-touch power max. switch (21) Swing parking brake release switch
(5) Travel pedals (22) Lower wiper switch
(6) Travel levers (23) Roof wiper switch (if equipped)
(7) Horn switch (24) Quick coupler switch
(8) Machine monitor (25) Additional lamp switch
(9) Cigarette Lighter (26) 2nd attachment proportional control switch
(10) Right work equipment control lever (27) Quick coupler switch
(11) Starting switch (28) Spare
(12) Fuel control dial (29) Spare (back of lever)
(13) Lamp switch (30) 1st attachment proportional control switch
(14) Swing lock switch (31) Breaker
(15) Machine push-up switch (32) Spare
(16) Heated operator seat switch (33) Spare (back of lever)
(17) Revolving warning lamp switch (if equipped)
To Next Page
