OPERATION DETAILED CONTROLS AND GAUGES
3-5
DETAILED CONTROLS AND GAUGES 3
The following is an explanation of devices needed for operating the machine.
To perform suitable operations correctly and safely, it is important to completely understand methods of operating
the equipment, and the meanings of the displays.
MONITORING SYSTEM 3

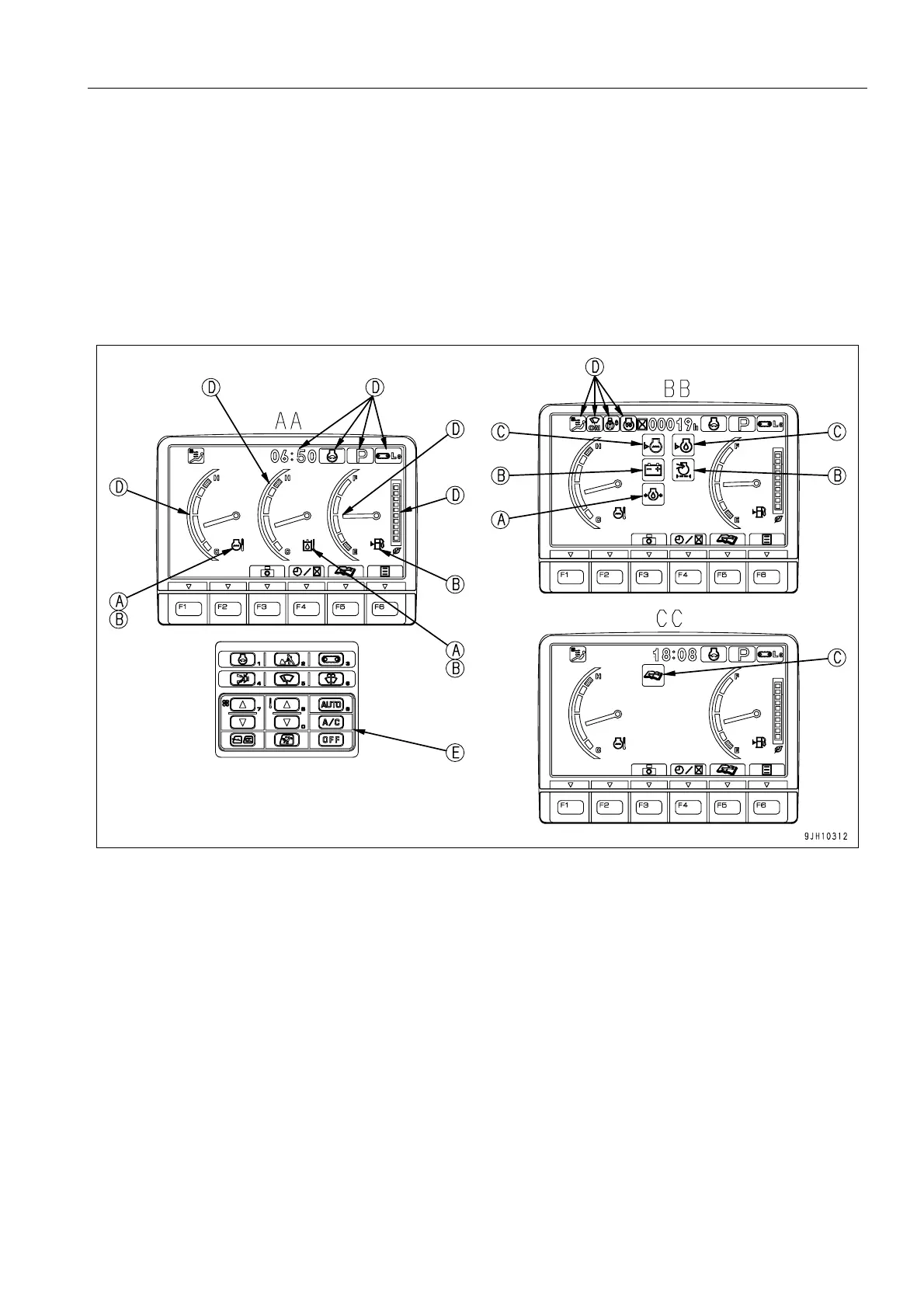

AA: Screen for standard
BB: Screen with all lamps lighted up
CC: Maintenance time warning screen
REMARK
One of the features of liquid crystal display panels is that there may be black spots (spots that do not light up) or
white spots (spots that stay lighted up) on the screen. If there are fewer than 10 black or white spots, this is not a
failure or a defect.
(A) Emergency monitors (D) Meter display portion, pilot display
(B) Caution monitors (E) Monitor switches portion
(C) Basic check monitors
