3. On the 2-Way Attachment Oil Flow Setting menu, it is pos-
sible to change the oil flow setting.

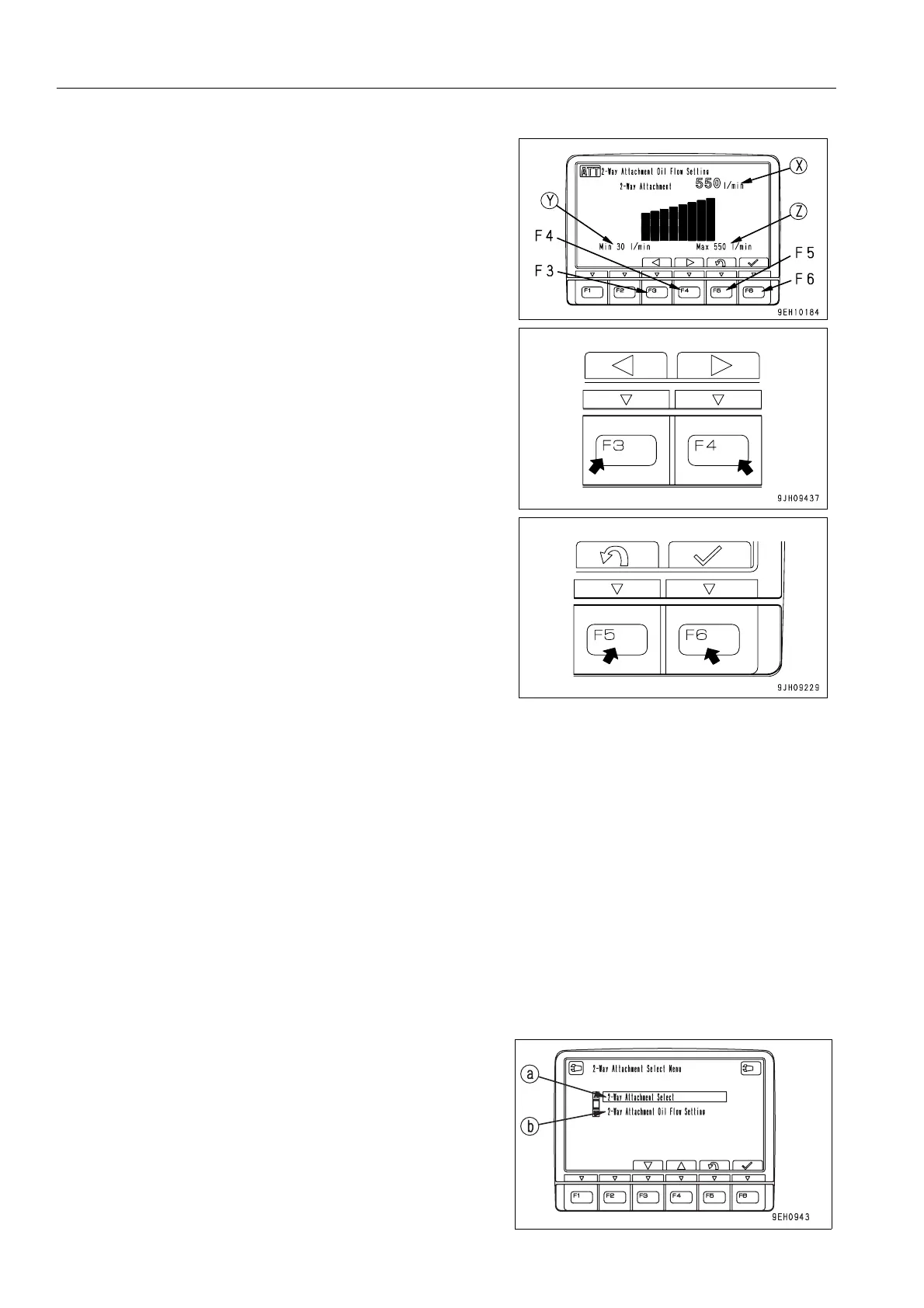

q After using switches F3 or F4 to change to a suitable
oil flow, press switch F6 to accept the change in the oil
flow and return to the previous screen.
q When switch F5 is pressed, no change is made in the
oil flow and the screen returns to the previous screen.
(X): Present oil flow setting
(Y): Min. adjusted oil flow
(Z): Max. adjusted oil flow
Attachment 2 Setting 3
Note - If installing 2nd attachment line as a field kit ask distribu-
tor to change monitor setting to allow 2 attachments (as shown
below).
On machines equipped with 2 attachment lines it is possible on
the attachment 2 settings menu to adjust the oil flow in ATT
mode to match the attachment installed.
Changing Attachment 2 Mode Setting
1. On the standard screen, press switch F6.
2. Select Attachment 2 settings on the user menu, then press
switch F6.
3. The screen switches to the 2-Way Attachment Select
menu.
Q 2-Way Attachment Select
In 2-Way Attachment Select (a), the oil flow to be set in
ATT mode can be set to one of two set values.
Q 2-Way Attachment Oil Flow Setting menu
In 2-Way Attachment Oil Flow Setting (b), it is possible
to change the oil flow setting for the ATT mode.
