DETAILED CONTROLS AND GAUGES OPERATION
3-18
Meter Display Portion 3
Pilot Display 3
q The pilot display at the top of the screen consists of the pilot lamps to confirm the actuation of each function.
q When the starting switch is turned ON, the pilot lamp lights up when the display items are functioning.
Engine Pre-heating Monitor
This monitor (1) lights up when the engine preheating electric
heater is actuated. When the ambient temperature is low and
the starting switch is set to the ON position, the lamp lights up,
and when the preheating is completed, it goes out.
The preheating time differs according to the ambient tempera-
ture.

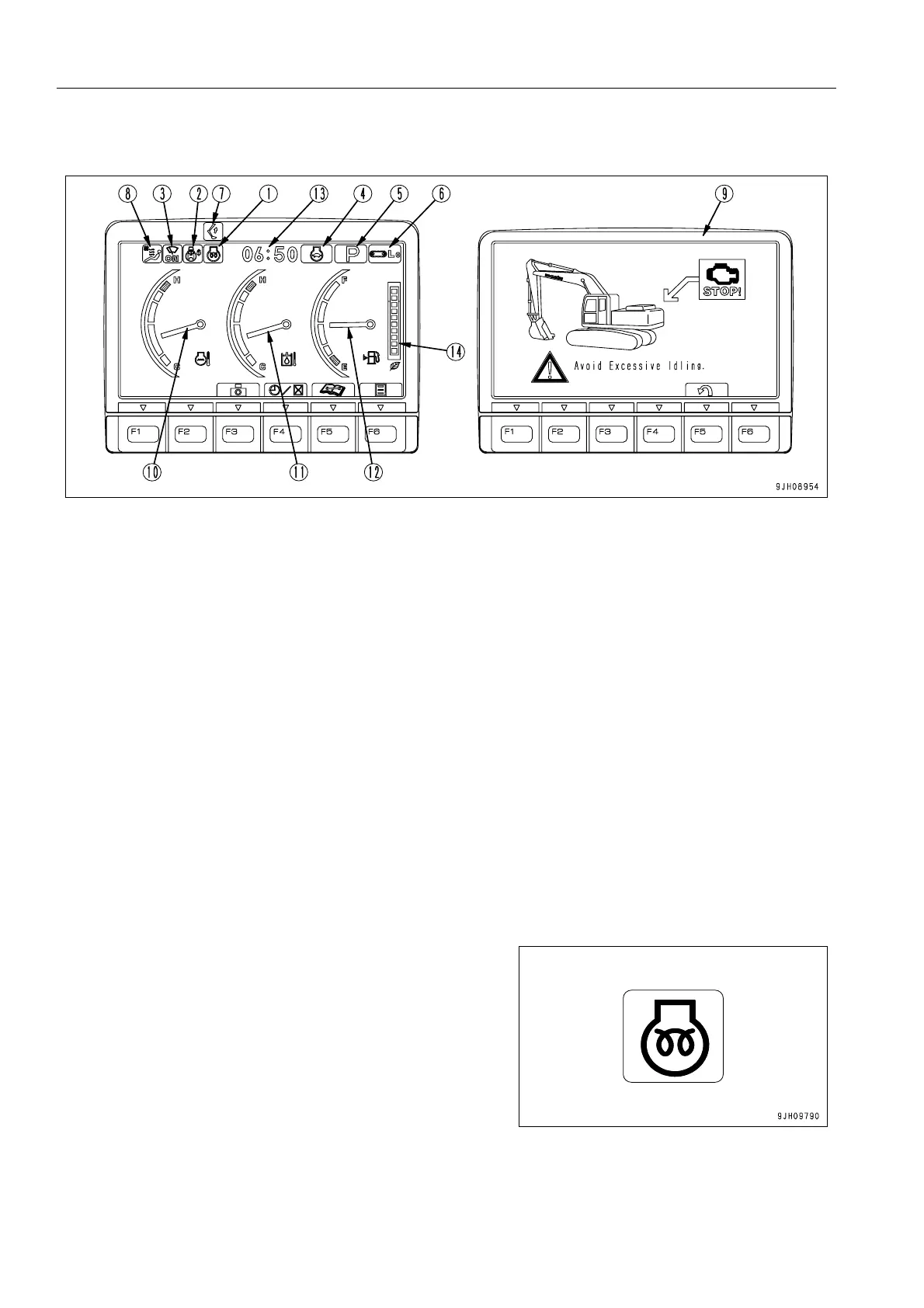

Pilot display Gauge and Meter
(1) Engine pre-heating monitor (10) Engine coolant temperature gauge
(2) Swing lock monitor (11) Hydraulic oil temperature gauge
(3) Wiper monitor (12) Fuel gauge
(4) Auto-deceleration monitor (13) Service meter, clock
(5) Working mode monitor (14) ECO gauge
(6) Travel speed monitor
(7) One-touch power max. monitor
(8) Air conditioner monitor
(9) Idle stop guidance
