Komatsu PC5500-6 - Machines Equipped with Kmg Control System

OPERATION 3.13 WORKING WITH THE ATTACHMENT
253
3.13.2 MACHINES EQUIPPED WITH ”KMG” CONTROL SYSTEM
N
OTICE

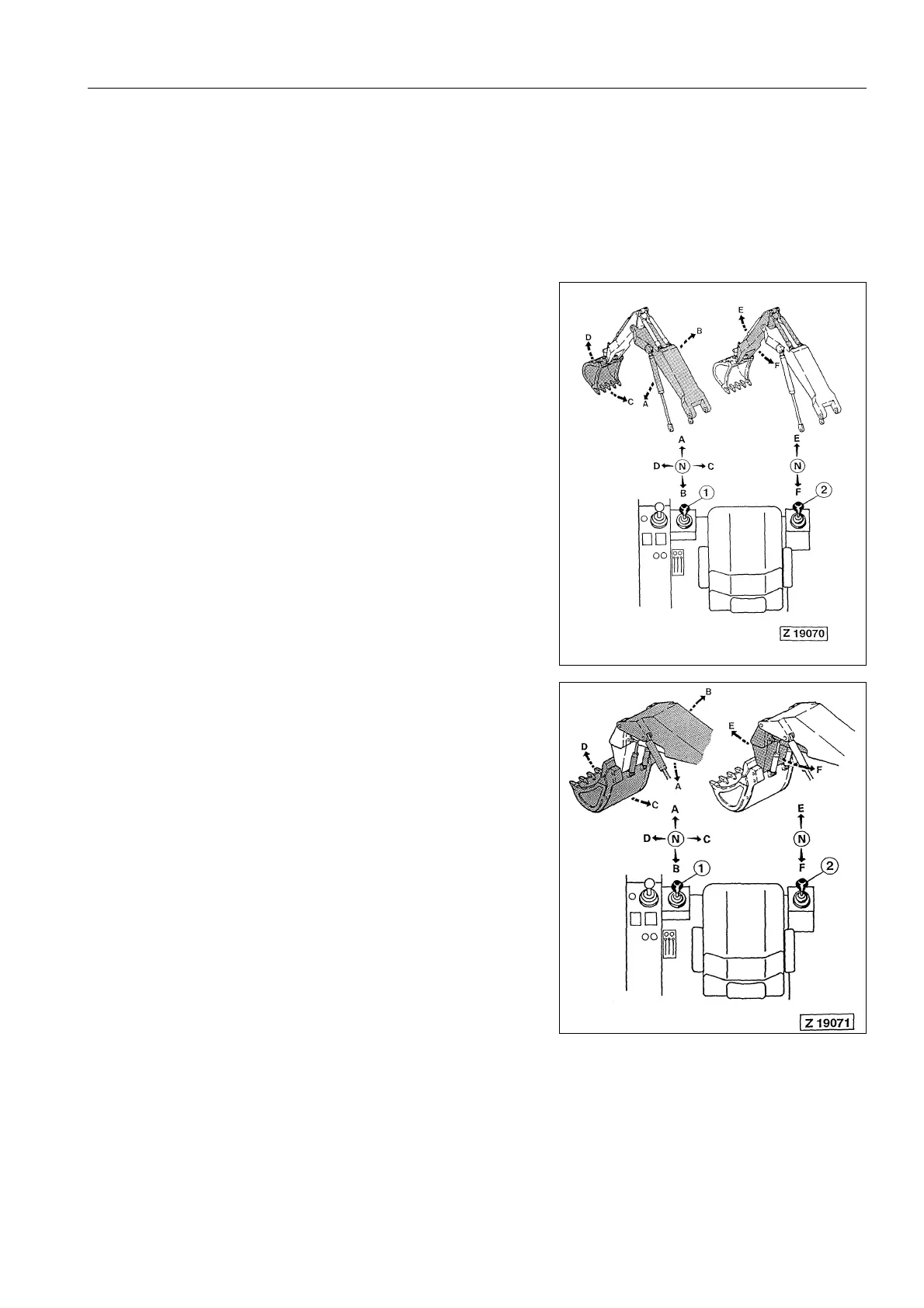

The illustrations show a typical construction of control stand
and working attachment.
However, the shown operation - and working movements
apply to this machine.
BACKHOE
FACE SHOVEL
N
OTICE
The raised working attachment can also be lowered with the
engine at standstill. If, for example, the engine stalls with the
working attachment in a raised position, lowering of the
working attachment is possible by moving control lever (1) to
position (A). The necessary oil pressure for shifting the
spools of the main control valves is provided by a pressure
accumulator in the pilot oil circuit. After stopping the engine,
relieve the pressure in the hydraulic system.
For more information → See "STOPPING THE ENGINES"
on page 264.
L.H. control lever (1) R.H. control lever (2)
A Lowering boom E Extending stick
B Lifting boom F Retracting stick
C
Filling bucket
(roll back)
D
Emptying bucket
(roll forward)
L.H. control lever (1) R.H. control lever (2)
A Lowering boom E Extending stick
B Lifting boom F Retracting stick
C
Emptying bucket
(roll back)
D
Filling bucket
(roll forward)
