OPERATING THE MACHINE
5-26
REMOVING THE WORK UNIT
1. Lower the work unit onto level ground.

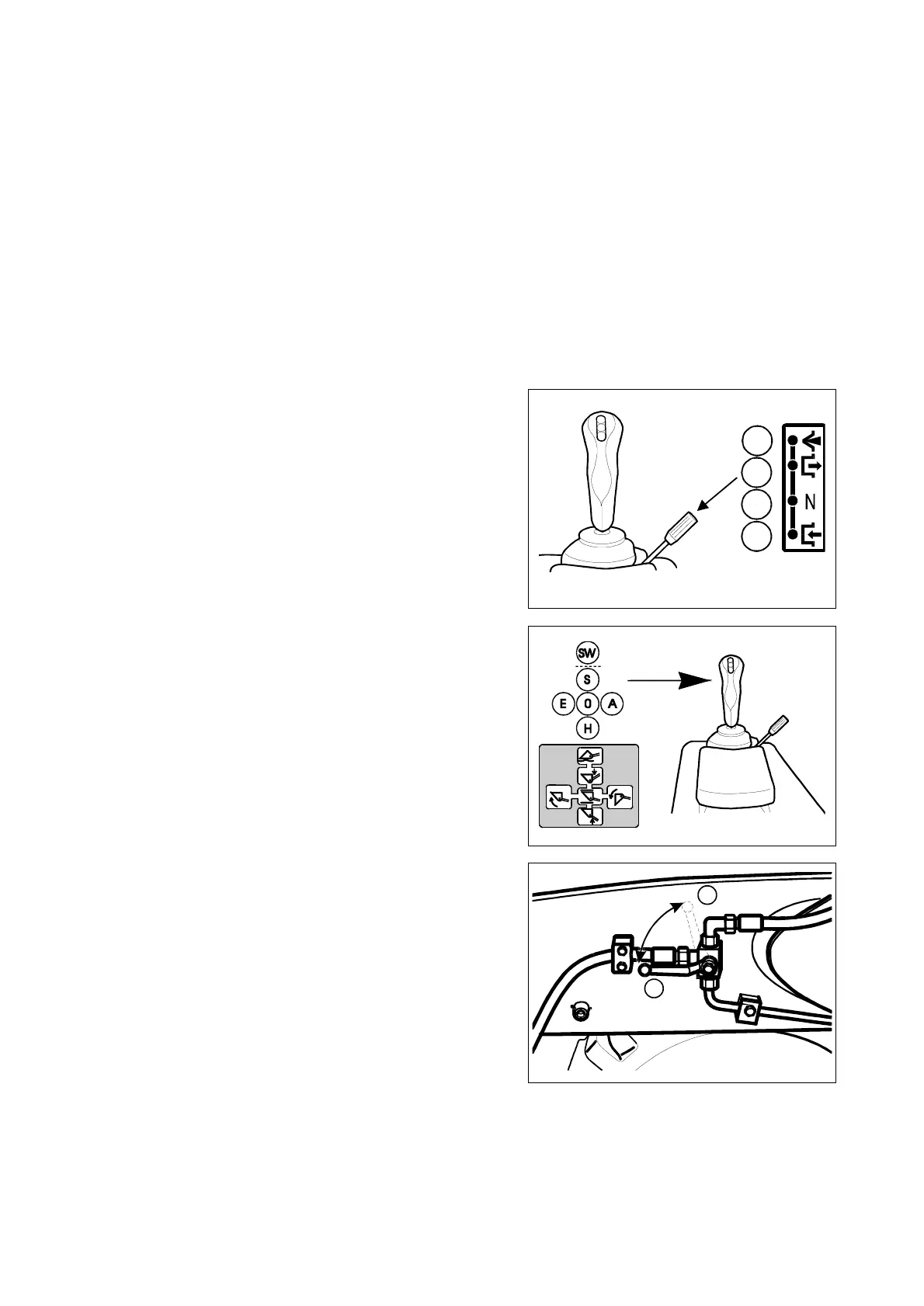

2. Unlock the quick-change unit by setting the control lever for
special equipment into position ‘1’ (fig. 75_042).
3. Set the quick-change unit into the dumping position ‘A’ (fig.
75_016) using the multi-function lever, until the quick-
change unit is unhooked of the pickup hooks of the work
unit.
4. Make sure that nobody is behind the machine and drive the
machine away from the work unit.
PICKING UP THE MULTI-PURPOSE BUCKET
1. Set the change-over lever for the additional control unit into
position '2' (fig. 75_160).
2. Start the engine.
3. Unlock the quick-change unit by setting the control lever for
special equipment into position ‘1’ (fig. 75_042).
4. Lift the boom slightly by setting the multi-function lever into
position ‘H’ (fig. 75_016).
5. Tilt the quick-change unit slightly to the front by setting the
multi-function lever into position 'A' (fig. 75_016).
6. Drive the machine to the work unit until the quick-change
unit (1) is below the pickup hooks of the work unit. Then, lift
the boom until the work unit catches the quick-change unit.
7. Tip in the quick-change unit until the work unit is connected
to the limit stops on the the quick-change unit by setting the
multi-function lever into position ‘E’ (fig. 75_016).
8. Lock the quick-change unit by setting the control lever for
special equipment into position ‘2’ (fig. 75_042).
9. Switch off the engine.
10. Set the change-over lever for the supplementary control cir-
cuit in position ’1’ to its limit stop (fig. 75_160).
11. Set the control lever for special equipment to position ’1’ (fig.
75_042).
