TECHNICAL DATA
8-3
NOISE EMISSION LEVELS
No alterations may be made to the machine which could have an
influence on the noise emission levels
VIBRATION LEVEL
When used for its intended purpose, levels of vibration for the
earthworking machine transmitted from the operator's seat are
lower or equal to the test vibrations for the relative machinery
class in compliance with ISO 7096. The actual acceleration val-
ue of the upper limbs is less than 8.2 ft/s² (2.5 m/s²). The actual
acceleration value for the body is less than 2.5 ft/s² (0.76 m/s).
These values were determined using a representative machine
and with the help of the measurement procedures that are de-
fined in the directives ISO 2631/1 and ISO 5349.
LIMIT VALUES FOR SLOPES
MAXIMUM SLOPE ANGLE FOR OPERATING THE
MACHINE
If operating the machine on a slope, its angle must not exceed
30° uphill, downhill or sideways. If you angle the machine at
more than 30° during operation, the motor, transmission, hy-
draulic system or axles, will not be supplied with sufficient oil and
can be damaged.
Sound pressure level L
pA
=73dB/A
Sound power level L
WA
=97dB/A

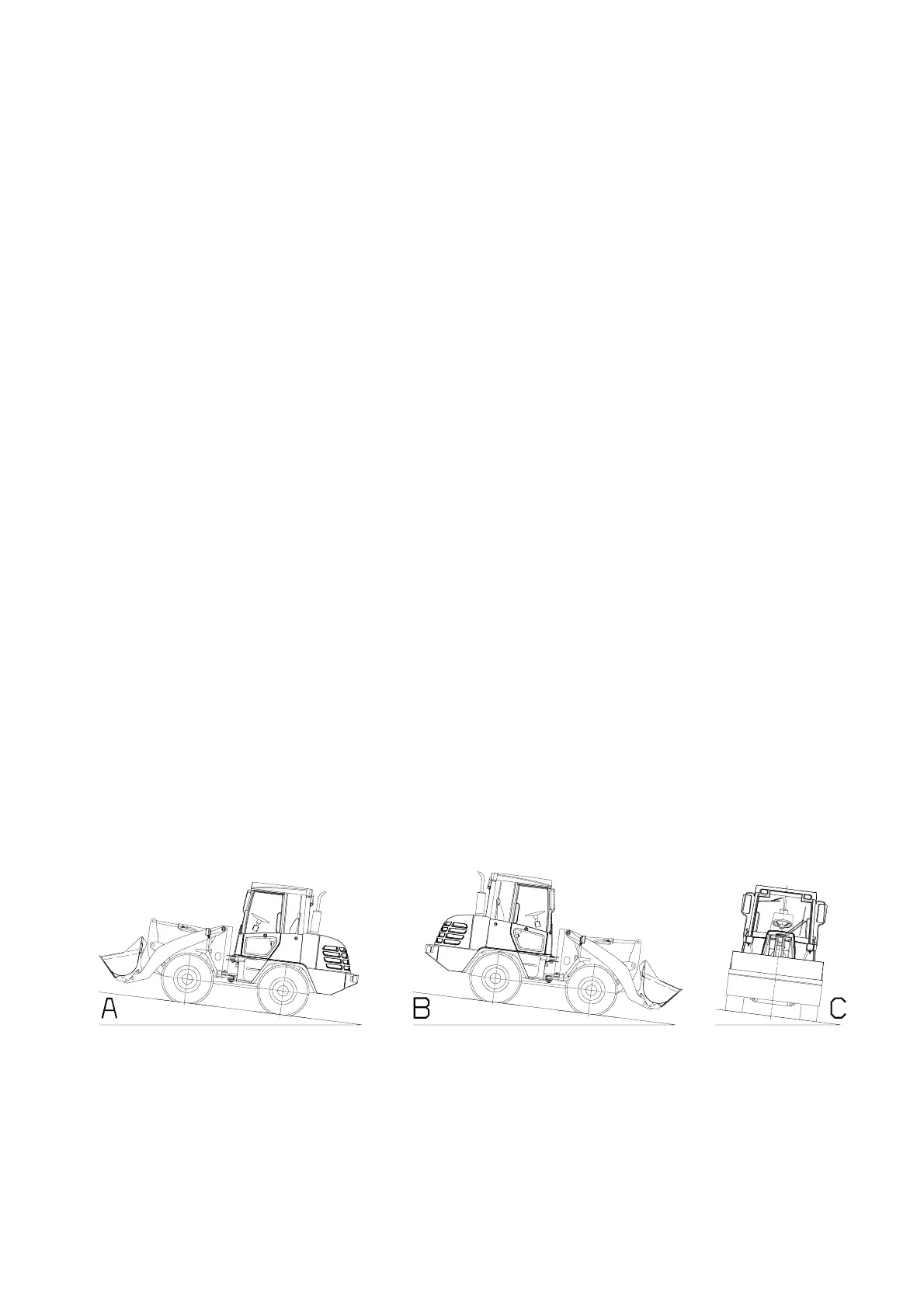

A uphill 30°
B downhill 30°
C sideways 30°
75_04
