MAINTENANCE EVERY 500 OPERATING HOURS
7-56
LUBRICATION
• If you perform maintenance operations at a machine
which is not properly parked and secured, severe acci-
dents may occur!
Park the machine on firm, level ground and secure it be-
fore starting the maintenance operations.
1. For maintenance operations, park and secure machine as
described in chapter "Preparing the Machine for Mainte-
nance".
2. Clean the grease nipples.
3. Use a grease gun to press sufficient grease into the grease
nipples.
4. Remove the old grease which is extruding at the bearings.

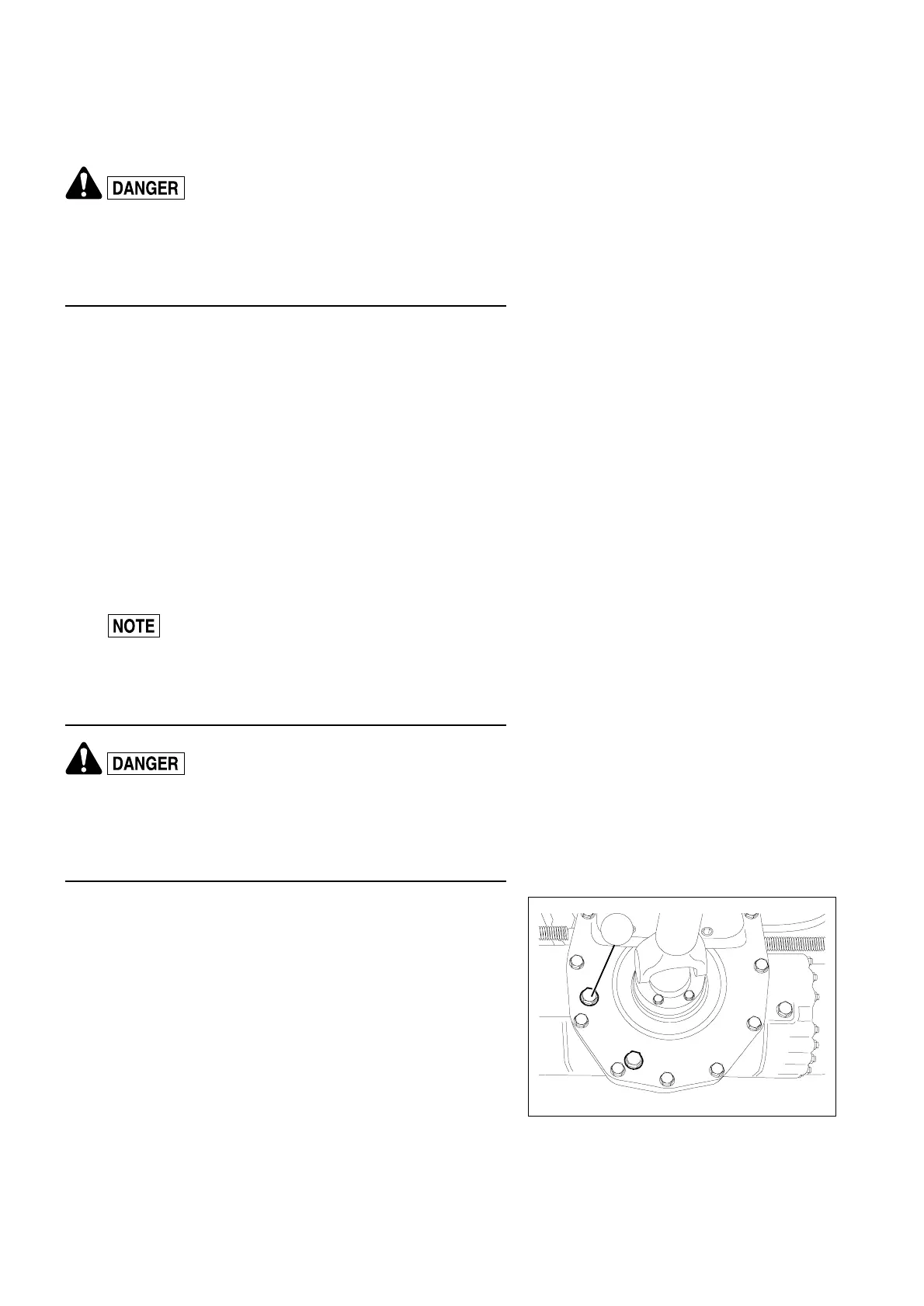

TRANSFER GEAR, CHECKING THE OIL LEVEL AND REFILLING OIL
☞
• If the engine is not running, the oil level in the transfer box
can significantly rise. Therefore, only check the gear oil
level with the engine running idle at operating tempera-
ture. The gearshift assembly must be in neutral position.
• Danger of injury! When the engine is running, you may
hurt yourself on the movable components inside the en-
gine room!
Do not perform any operation in the engine room with the
engine running.
1. For maintenance operations, park and secure machine as
described in chapter "Preparing the Machine for Mainte-
nance".
2. Clean the screw plug (1) and the adjacent environment.
3. Unscrew the screw plug.
4. Check the oil level. The oil level must be at the lower edge of
the control drill hole of the screw plug.
5. If the oil level is too low, fill up with oil using the control drill
hole of the screw plug.
6. Clean the screw plug and insert a new packing ring.
7. Re-tighten firmly the screw plug.
Door hinges (4 locations)
Bonnet hinges (2 locations)
75_252
1
