OPERATING THE MACHINE
5-35

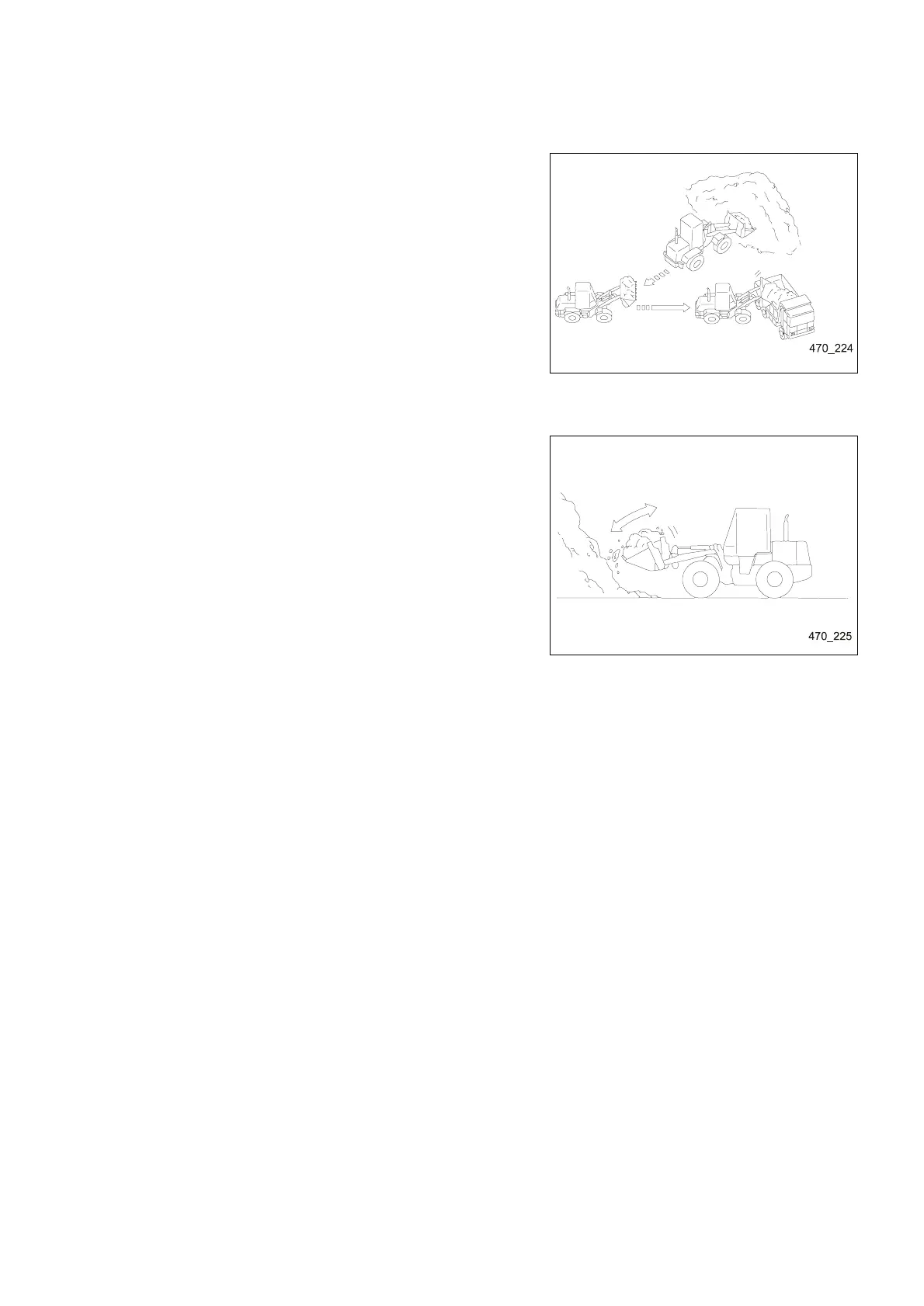

V-SHAPED LOADING
Position the dump truck in such a way that the angle between
the dump and the dump truck is approx. 60°. Fill the bucket and
shake it. This leads to a better distribution of the cargo in the
bucket and prevents that material falls down to the back. Drive
the machine backwards from the heap and align the machine
withthedumptruck.Raisethebuckettoitsmaximumheight.
Drive up forward to the dump truck and unload the material.
Ifyoukeeptheturningangleofthemachineassmallaspossi-
ble, the work can be performed more efficiently.
PILING UP MATERIAL
Do not position the bucket in its maximum tip-in or dumping posi-
tion while piling up material. Instead, use the required mining an-
gle. The rear counterweight must not touch the ground.
