LOADING AND SECURING
102
Operating instructions • Load Carrier • 505410638-02 • 07/2019
1
2

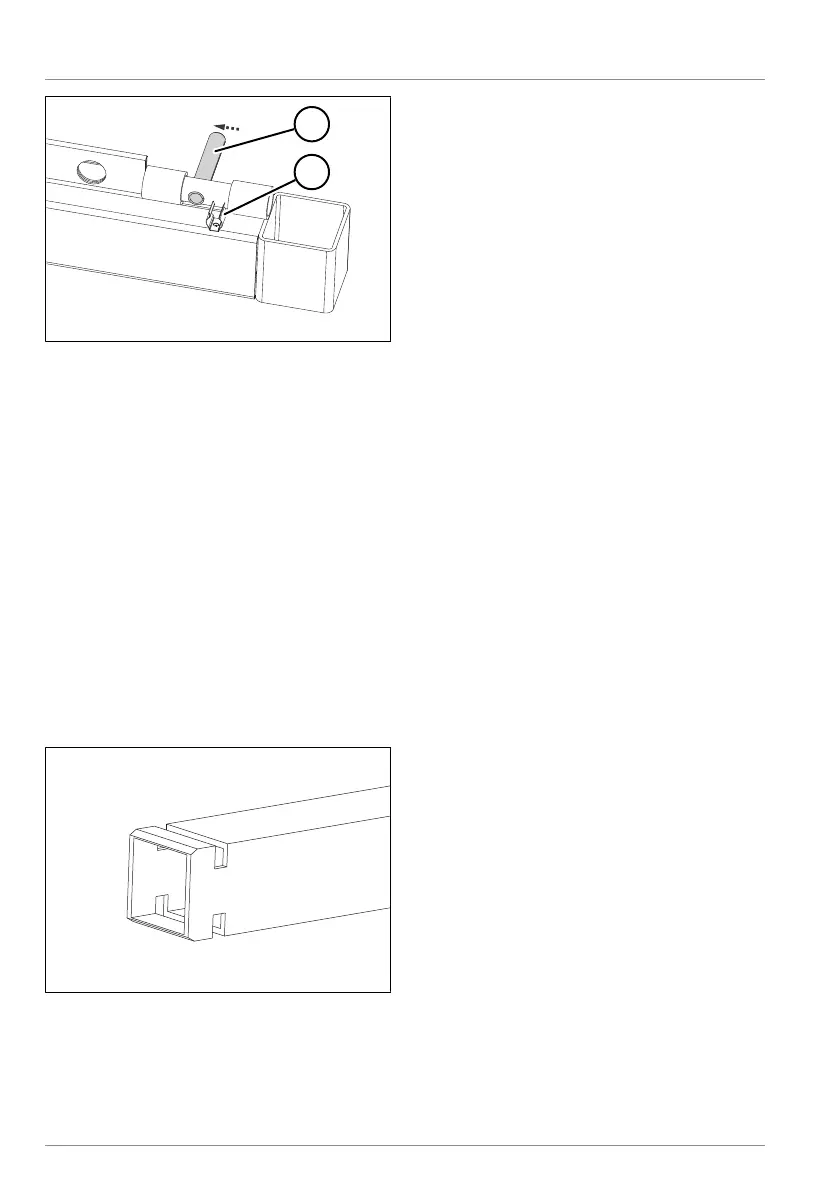

Fig.8-16: Pulling out the locking lever
1 Locking lever
2 Clamping bracket
► Pull the locking lever out of the clamp-
ing bracket of the Multi Block beam.
► Push the retainer bolt completely in to-
wards the centre of the Multi Block
beam.
► Insert the Multi Wall support into the
square profiles of the plug-in brackets.
► Move the retainer bolt to the lock posi-
tion.
► Press the locking lever into the clamp-
ing bracket.
► Install the second Multi Wall support in
the same way.
Fig.8-17: Recesses on the Multi Wall trans-
verse beam
► Insert the Multi Wall transverse beam
with the recesses into the square
openings of the Multi Wall support and
fasten.
► Press down the transverse beam until
the retainer plates of the supports grip
into the recesses of the transverse
beams.
► Additionally secure the Multi Wall sys-
tem with diagonal lashing.
ü The Multi Wall system has been inser-
ted.
Removing the Multi Wall system
► Remove the diagonal lashing.
► Remove the Multi Wall transverse
beam.
► Move the locking lever to the release
position.
► Remove the Multi Wall supports from
the plug-in bracket.
► Slide the retainer bolt out of the middle
of the Multi Block beam and release it.
► Press the locking lever on the clamp-
ing bracket of the Multi Block beam.
► Place the Multi Wall supports and the
Multi Wall transverse beam in the stor-
age box.
► Remove the Multi Block system (see
"8.7.5 Using the Multi Block system",
pg.99).
ü The Multi Wall system is removed.
8.7.7 Using the Multi Fix system
KRONE trailers can be equipped with the
Multi Fix load securing system. The Multi
Fix system secures pipes, round steels, or
sheets with a load weight up to 25t. The
Multi Fix system consists of footing beams,
sliding shoes, support beams, and one or
two safety nets. The footing beam is split
into two parts and is attached during in-
stallation. The footing beams can be vari-
ably fastened to the Multilock external
frame (see "8.7.1 Using the Multi-Lock external
