RUNNING GEAR OPERATION
Operating instructions • Load Carrier • 505410638-02 • 07/2019
31

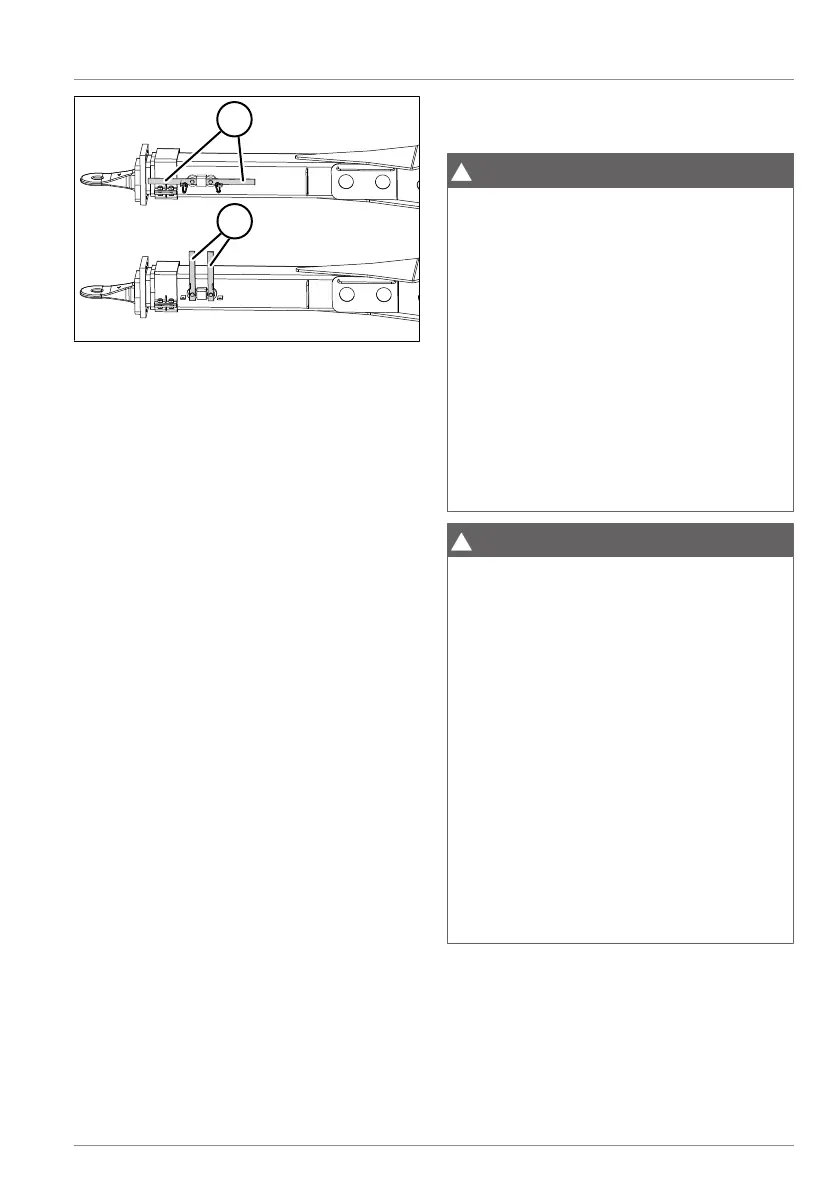

Fig.5-12: Hand lever on the drawbar wale
1 Hand lever secured with spring snaps
2 Hand lever swivelled upwards
► Unhook the spring snap from the se-
curing eyelets of the hand lever.
► Swivel the hand lever upwards.
► Pull out the plug-in bolts.
► Place the drawbar wale in the desired
position by shifting it in or out.
► Slide in the plug-in bolts.
► Swivel the hand lever downwards.
► Hook the spring snap into the securing
eyelets of the hand lever.
► Place the flat washer on the plug-in
bolt.
► Secure the plug-in bolts with safety
split pins.
ü The length of the drawbar wale is set.
ü The plug-in bolts are properly secured.
5.6 Supply and control connec-
tions
DANGER
Disconnected supply and control con-
nections pose a risk of accident!
Driving without the supply and control con-
nections being connected between the
tractor unit and the trailer affects the driv-
ing and brake behaviour and is prohibited
by law. There is a risk of accidents due to
the malfunction.
Before each trip:
► Connect the compressed air supply.
► Connect the electrical power supplies
for the vehicle lighting.
► Connect the electrical power supplies
for the brake system.
WARNING
Damaged or inadequate supply and
control connections pose a risk of acci-
dent!
Damaged or inadequate supply and con-
trol connections between the tractor unit
and trailer affect driving and braking beha-
viour and can lead to accidents.
► Ensure that all compressed air con-
nections are properly connected and
not leaking.
► Ensure proper functioning of the
couplings.
► Replace damaged rubber seals or
damaged coupling heads on the
tractor unit and trailer.
► Ensure that the EBS plug is properly
locked.
