SUPERSTRUCTURE OPERATION
58
Operating instructions • Load Carrier • 505410638-02 • 07/2019

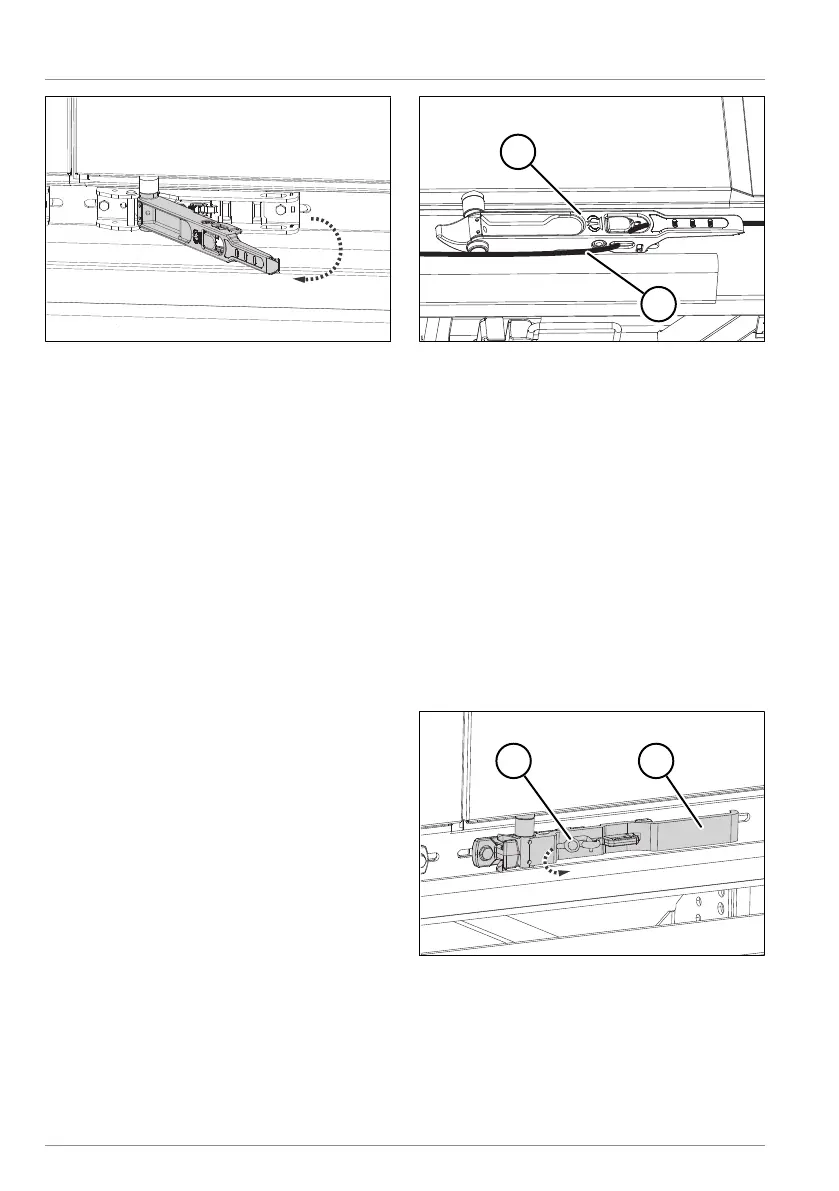

Fig.6-2: Swivelling out the door lock lever
► Swivel out the door lock lever so that
the tension bolts push the door open.
► Open the door leaf.
► Both door lock levers should then be
moved back to their original position.
► Secure the swivelled open door leaves
with door stops (see "6.1.3 Door stop and
Door Fix", pg.59).
ð The right-hand door lock is
opened.
► Open the left door lock in the same
way.
ü Both door locks are opened and
fastened.
Closing the door lock
► Release the left door stop.
► Close the left door leaf.
► Swivel in the door lock lever so that
the tension bolts pull the door closed.
If there are two door lock levers, close
both at the same time.
► Firmly press the door lock lever so that
the lock engages.
1
2
Fig.6-3: Threading the curtain rope
through the door lock
1 Door lock
2 Curtain rope
► If necessary, install the curtain rope.
ð The left-hand door lock is closed.
► Close the right door lock in the same
way.
ü Both door locks are closed.
6.1.2 Door latch of dual-action
design
Opening the door locks
► If necessary, remove the curtain rope.
1 2
Fig.6-4: Door lock with two-handed opera-
tion
1 Anti-tilt device
2 Door lock lever
