Krone LOAD CARRIER User Manual

SUPERSTRUCTURE OPERATION
80
Operating instructions • Load Carrier • 505410638-02 • 07/2019
1
3
2

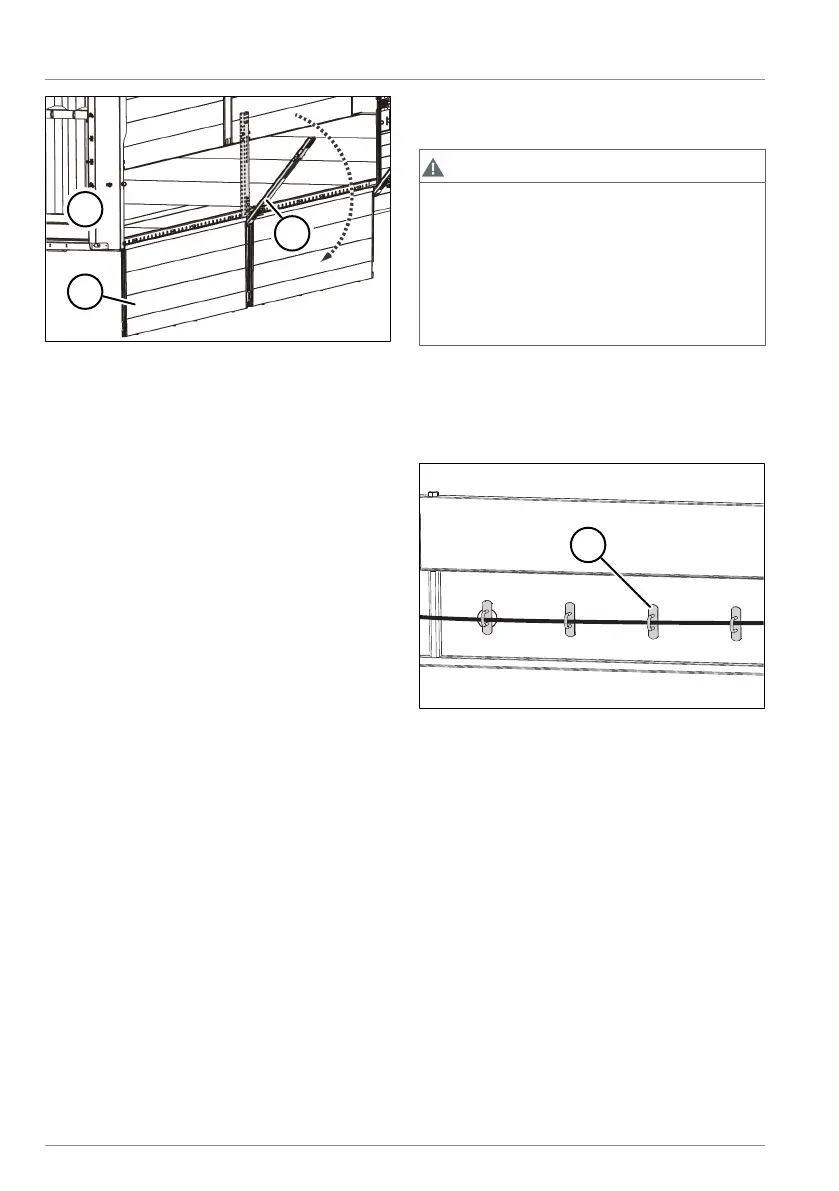

Fig.6-42: Folded down bottom part of the
post
1 Front wall
2 Bottom part of the post
3 Folded down board wall
► Fold down the bottom part of the post.
► Lift the bottom part of the post out of
the post retainer.
► Slide the upper part of the post out to
the side of the bracket on the external
beam of the roof frame.
ü The post has been removed.
Inserting fold-down posts
► Slide the top part of the post into the
bracket from the side.
► Lift the bottom part of the post into the
post retainer.
► Fold up the locking lever on the bottom
part of the post.
► Connect the bottom part of the post to
the joint with the top part of the post.
► Fold in the complete post to the
vehicle.
► Completely fold the locking lever into
the post until the lock on the locking
lever engages.
ü The post has been inserted.
► Fold up the board walls and lock them.
6.3.2 Opening and closing the side
curtain/rear curtain
CAUTION
Risk of injury due to unfastened curtain
rope ends!
Unfastened curtain rope ends can flap
around, injure people, and cause material
damage.
► Secure the ends of the curtain ropes
after closing the curtain.
There are ring-reinforced curtain eyes for
the curtain cramps on the board, rear and
front walls. The curtain rope pulled through
the curtain cramps fastens the curtain to
the vehicle.
1
Fig.6-43: Curtain cramps on the rear wall
1 Curtain cramp
Opening the curtain
► Remove the curtain rope.
► Throw the ends of the curtain rope
over the roof.
► Tie the ends of the curtain rope to the
curtain.
► Pull up the curtain from the other side
of the vehicle with the curtain rope.
► If required, push up the corners of the
curtain with a plug-in lath.
ü The curtain is open.
Closing the curtain
► Let the curtain down.
