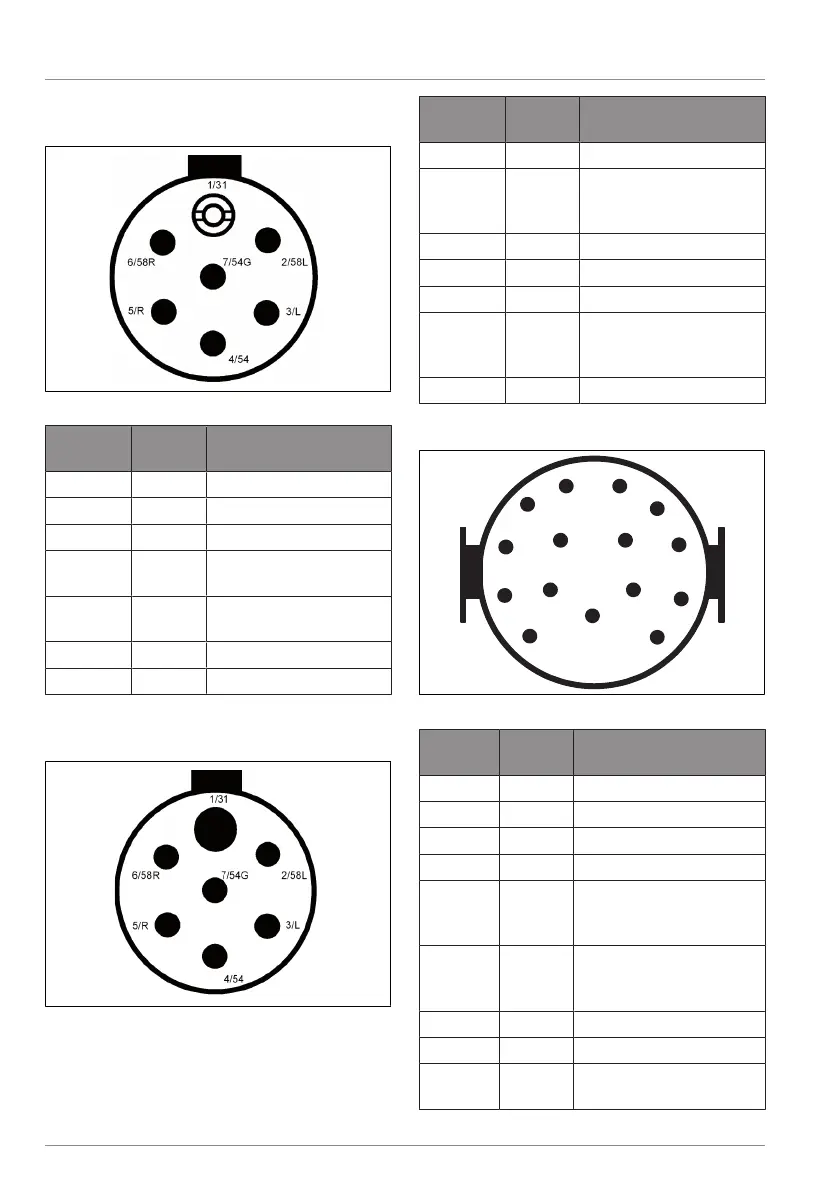

13.2.2 Socket S (white) ISO3731,
7‑pin
Fig.13-1: Socket ISO S 3731, 7-pin
Contact
no.
Colour Function
1/31 White Ground
2/58L Black Unassigned
3/L Yellow Reversing light
4/54 Red Permanent power (+24
V)
5/R Green Steering axle lock (op-
tional)
6/58R Brown Lift axles (optional)
7/54G Blue Rear fog light
13.2.3 Socket N (black) ISO1185, 7-
pin
Fig.13-2: Socket ISO N 1185, 7-pin
Contact
no.
Colour Function
1/31 White Ground
2/58L Black Rear, boundary and li-
cence plate lights, left-
hand side
3/L Yellow Direction indicator, left
4/54 Red Brake light
5/R Green Direction indicator right
6/58R Brown Rear, boundary and li-
cence plate lights,
right-hand side
7/54G Blue Unassigned
13.2.4 Socket ISO 12098, 15-pin
8
1
2
3
4
5
7
9
10
11
12
13
14
15
6
Fig.13-3: Socket ISO12098, 15-pin
Contact
no.
Colour Function
1 Yellow Direction indicator, left
2 Green Direction indicator right
3 Blue Rear fog light
4 White Ground
5 Black Rear, boundary and li-
cence plate lights, left-
hand side
6 Brown Rear, boundary and li-
cence plate lights, right-
hand side
7 Red Brake light
8 Pink Reversing light
9 Orange Permanent power (+24
V)
