RUNNING GEAR OPERATION
Operating instructions • Load Carrier • 505410638-02 • 07/2019
47
Folding up the side collision protection
► Pull out the spring pin on both plug-in
bolts.
► Pull out the plug-in bolts.
► Fold up the side collision protection.
► Insert the plug-in bolts into the drilled
holes.
► Secure the plug-in bolts with the spring
pins.
ü The side collision protection is folded
up and secured.
Folding down the side collision protec-
tion
► Pull out the spring pin on both plug-in
bolts.
► Pull out the plug-in bolts.
► Fold down the side collision protection.
► Insert the plug-in bolts into the drilled
holes.
► Secure the plug-in bolts with the spring
pins.
ü The side collision protection is folded
down and secured.
5.15 Spare wheel bracket
WARNING
Risk of accident from an unsecured
spare wheel!
An unsecured spare wheel can fall off
when driving and cause serious accidents.
► Properly secure the spare wheel.
► Only transport wheels that are de-
signed for the spare wheel bracket.
► Check the spare wheel bracket for
damage.
► Immediately repair the spare wheel
bracket if defective.
CAUTION
Risk of injury due to a falling spare
wheel!
The weight of a falling spare wheel can
cause injuries.
► Work carefully when changing a spare
wheel.
KRONE trailers can be equipped with a
spare wheel bracket. Depending on the
equipment, the following versions are pos-
sible:
○ Spare wheel with basket storage (see
"5.15.1 Spare wheel with basket storage",
pg.47)
○ Spare wheel with winch (see "5.15.2
Spare wheel with winch", pg.48)
○ Spare wheel in the pallet storage box
(see "5.15.3 Spare wheel in the pallet stor-
age box", pg.49)
○ Spare wheel for twin and tractor
vehicle tyres (see "5.15.4 Spare wheel for
twin and tractor vehicle tyres", pg.49)
5.15.1 Spare wheel with basket stor-
age

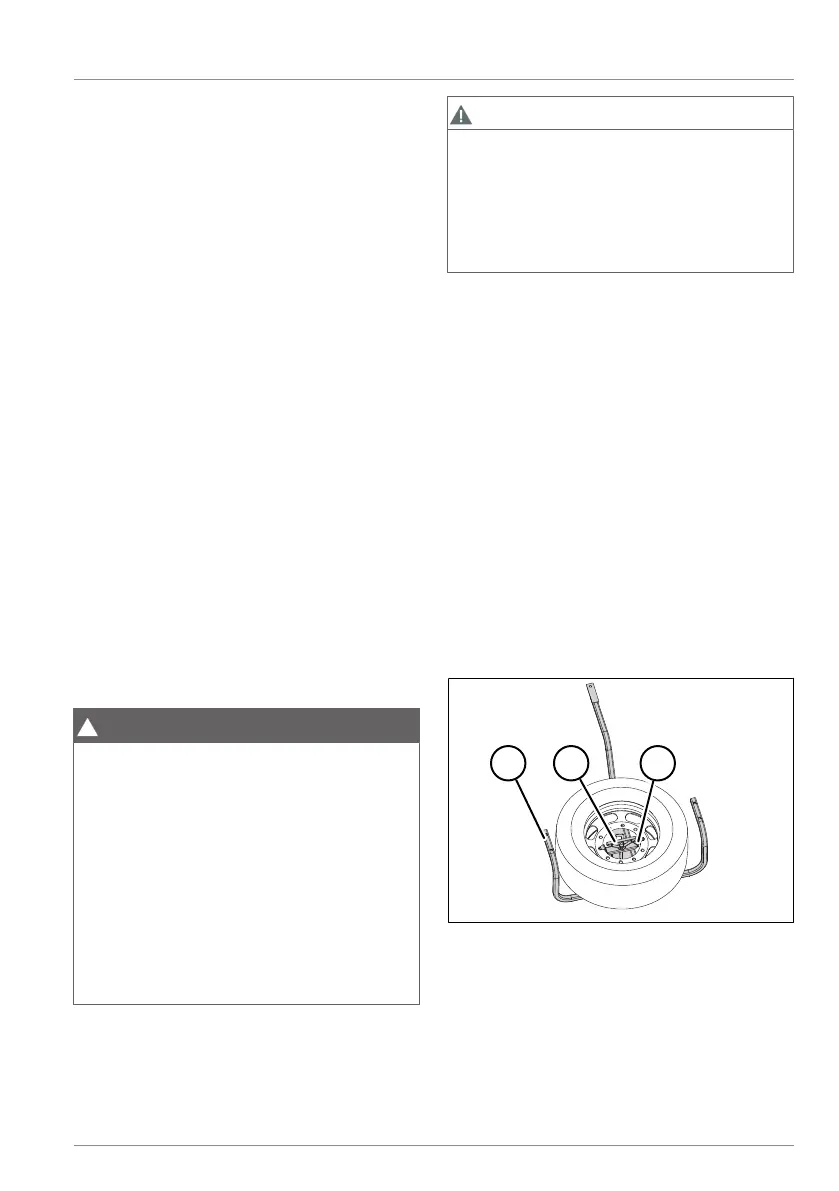

Fig.5-36: Spare wheel with basket storage
version 1
1 Storage basket
2 Rim holder
3 Securing device
