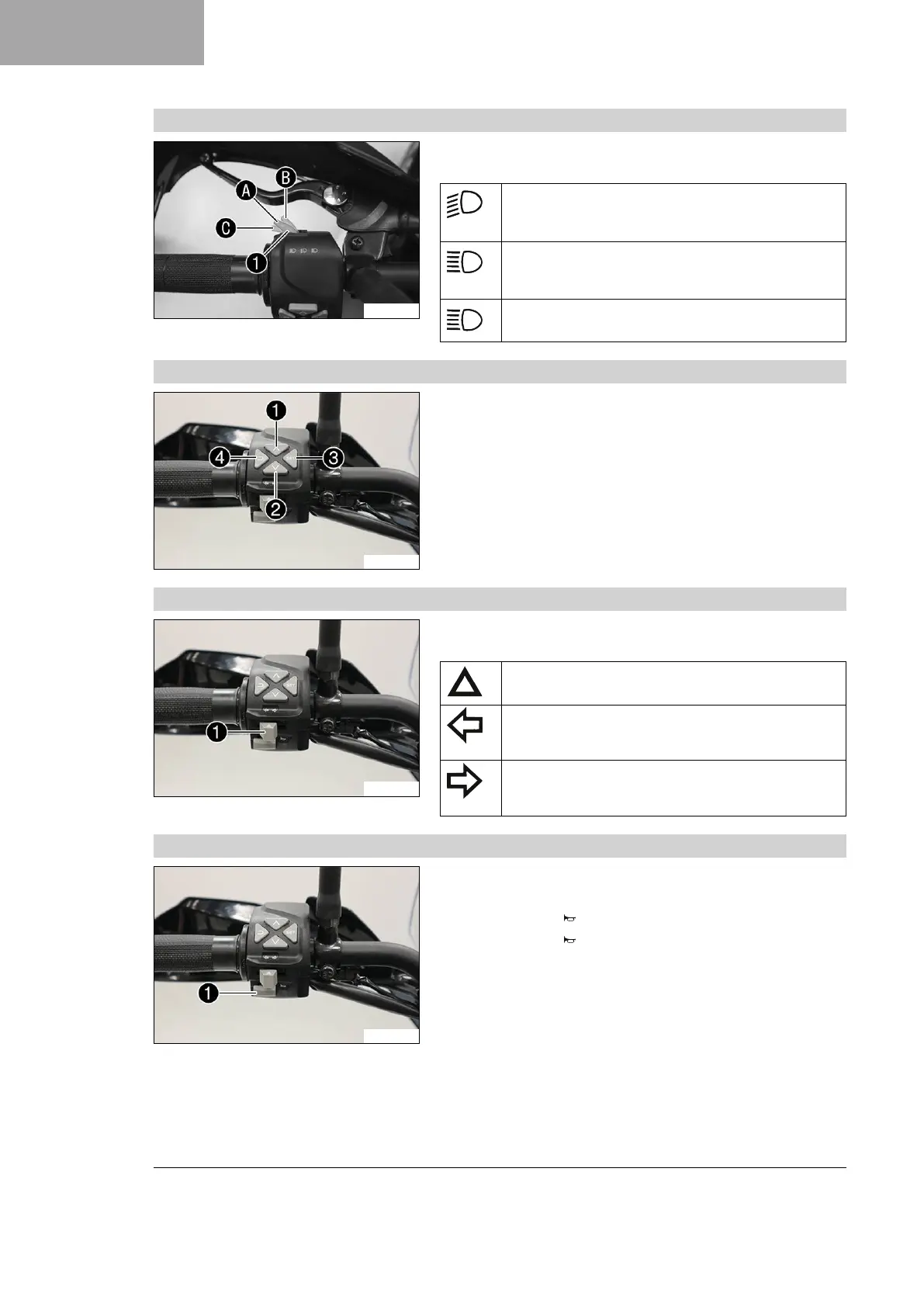

6.4.2 Light switch
S04123-10
Light switch
1
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch in position
A
. In this
position, the low beam and the tail light are switched
on.
High beam on – Push the light switch to position
B
.
In this position, the high beam and the tail light are
switched on.
Headlight flasher – Push the light switch into posi-
tion
C
.
6.4.3 Menu buttons
S04124-10
The menu buttons are fitted in the middle of the left combination
switch.
The menu buttons are used to control the display on the combina-
tion instrument.
Button
1
is the UP button.
Button
2
is the DOWN button.
Button
3
is the SET button.
Button
4
is the BACK button.
6.4.4 Turn signal switch
S04124-11
Turn signal switch
1
is fitted on the left side of the handlebar.
Possible states
Turn signal off – Turn signal switch pushed toward the
switch housing.
Left turn signal, on – Turn signal switch pressed to
the left. The turn signal switch returns automatically
to the central position after use.
Right turn signal, on – Turn signal switch pressed to
the right. The turn signal switch returns automatically
to the central position after use.
6.4.5 Horn button
S04124-12
Horn button
1
is fitted on the left side of the handlebar.
Possible states
• The horn button is in the basic position
• The horn button is pressed – The horn is operated in this
position.
