16.5 Changing the ABS fuses
Warning
Fire hazard Incorrect fuses overload the electrical system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
Info
Two fuses for the ABS are located under the passenger seat. These fuses protect the return pump and the
hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
– Remove the passenger seat. ( p. 63)
A00700-10

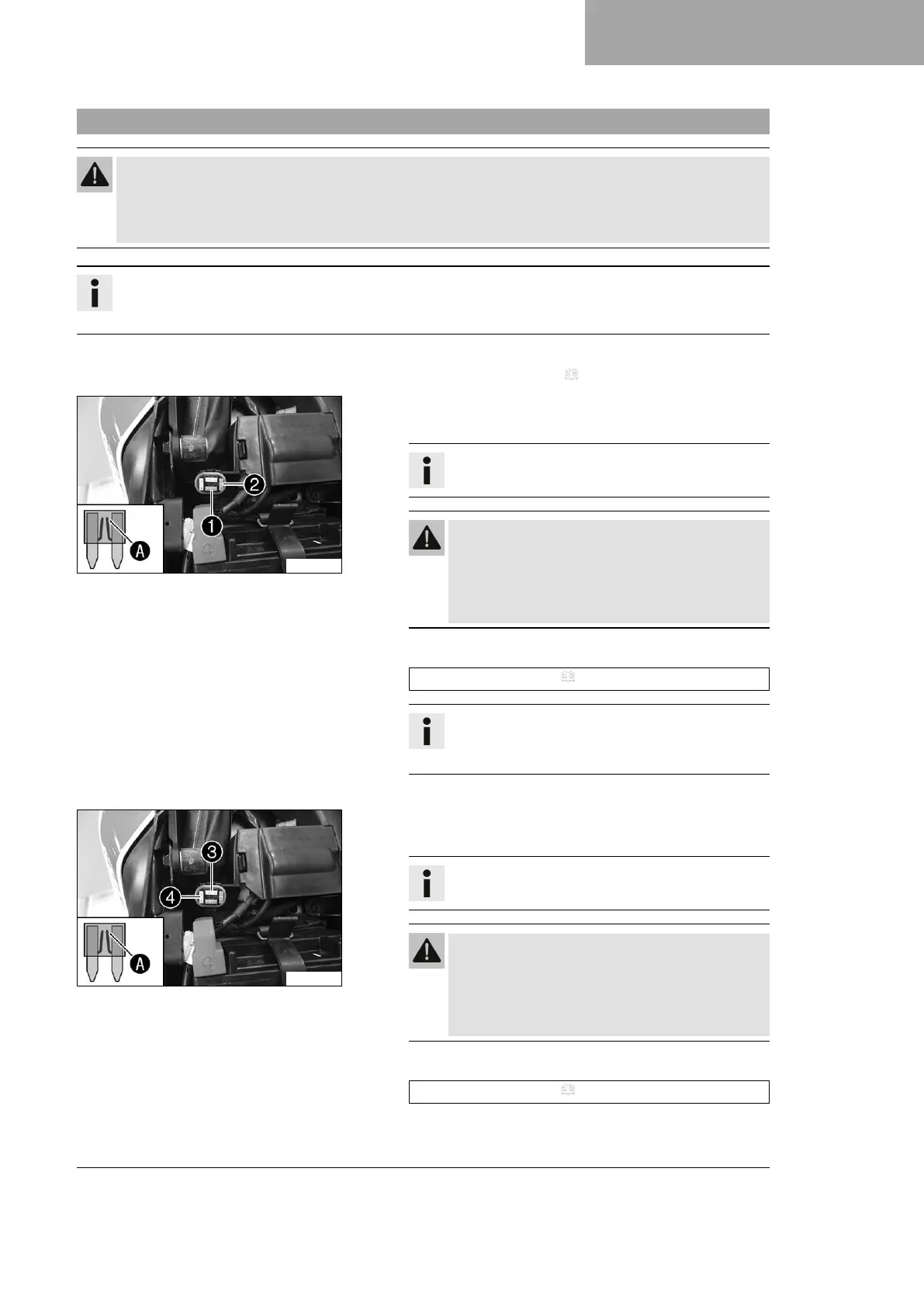

To change the fuse of the ABS hydraulic unit:
–
Take off the protection cap and remove fuse
1
.
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical
system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088015) ( p. 116)
Tip
Insert spare fuse
2
in the fuse box so that it is
available if needed.
– Mount the protection cap.
A00700-11
To change the fuse of the ABS return pump:
–
Take off the protection cap and remove fuse
3
.
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical
system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (90111088025) ( p. 116)
