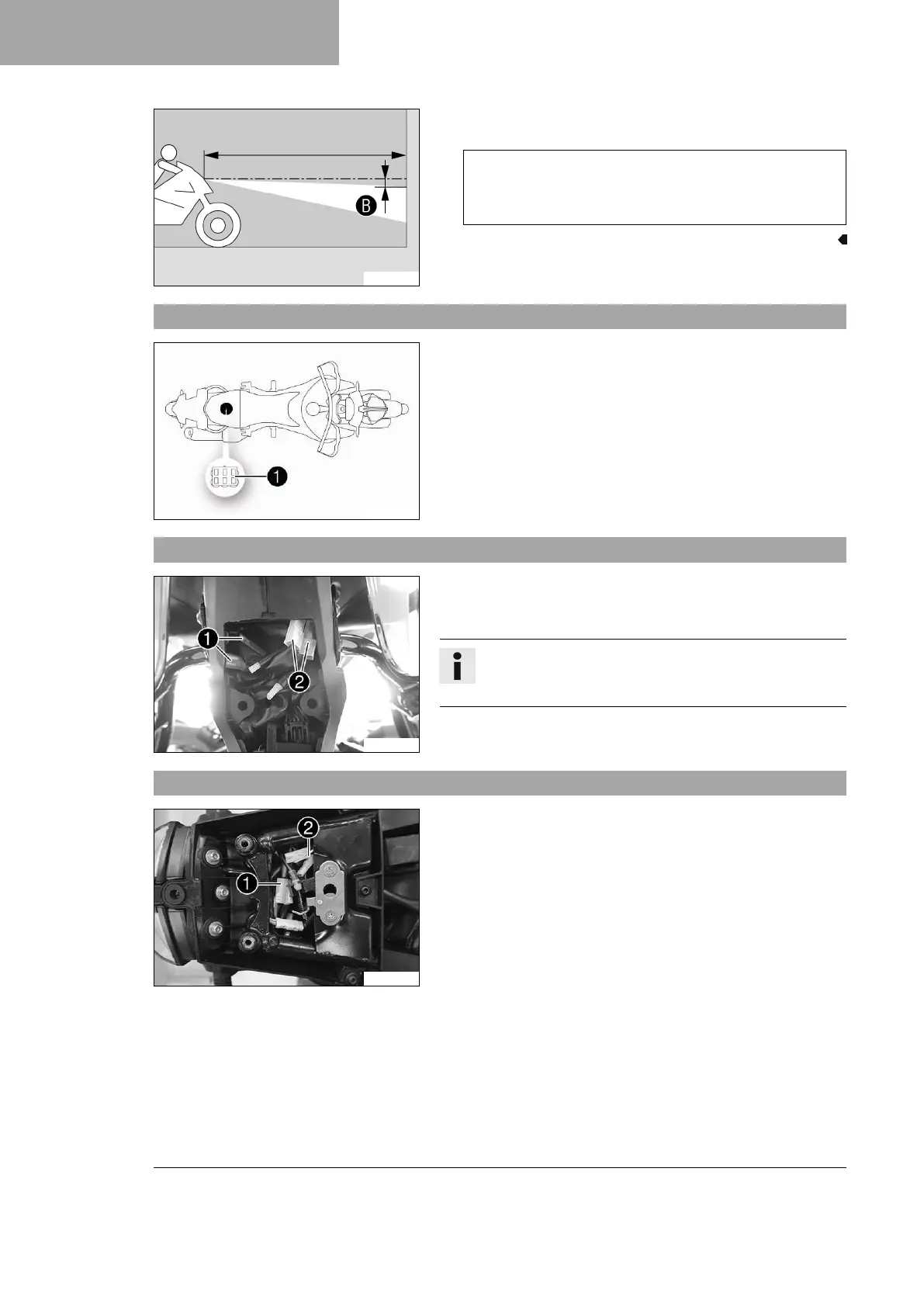

16 ELECTRICAL SYSTEM
94
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger if
applicable.
16.9 Diagnostics connector
A00702-10
Diagnostics connector
1
is located under the passenger seat.
16.10 Front ACC1 and ACC2
S04169-10
Installation location
–
The front power supplies ACC1
1
and ACC2
2
are located
behind the headlight.
Info
The front power supplies ACC1 and ACC2 can be accessed
under the cable cover of the headlight mask.
16.11 ACC1 and ACC2 rear
A00692-10
Installation location
–
The rear power supplies ACC1
1
and ACC2
2
are located
under the rear fairing next to the seat lock.
