17 COOLING SYSTEM
96
S04170-10

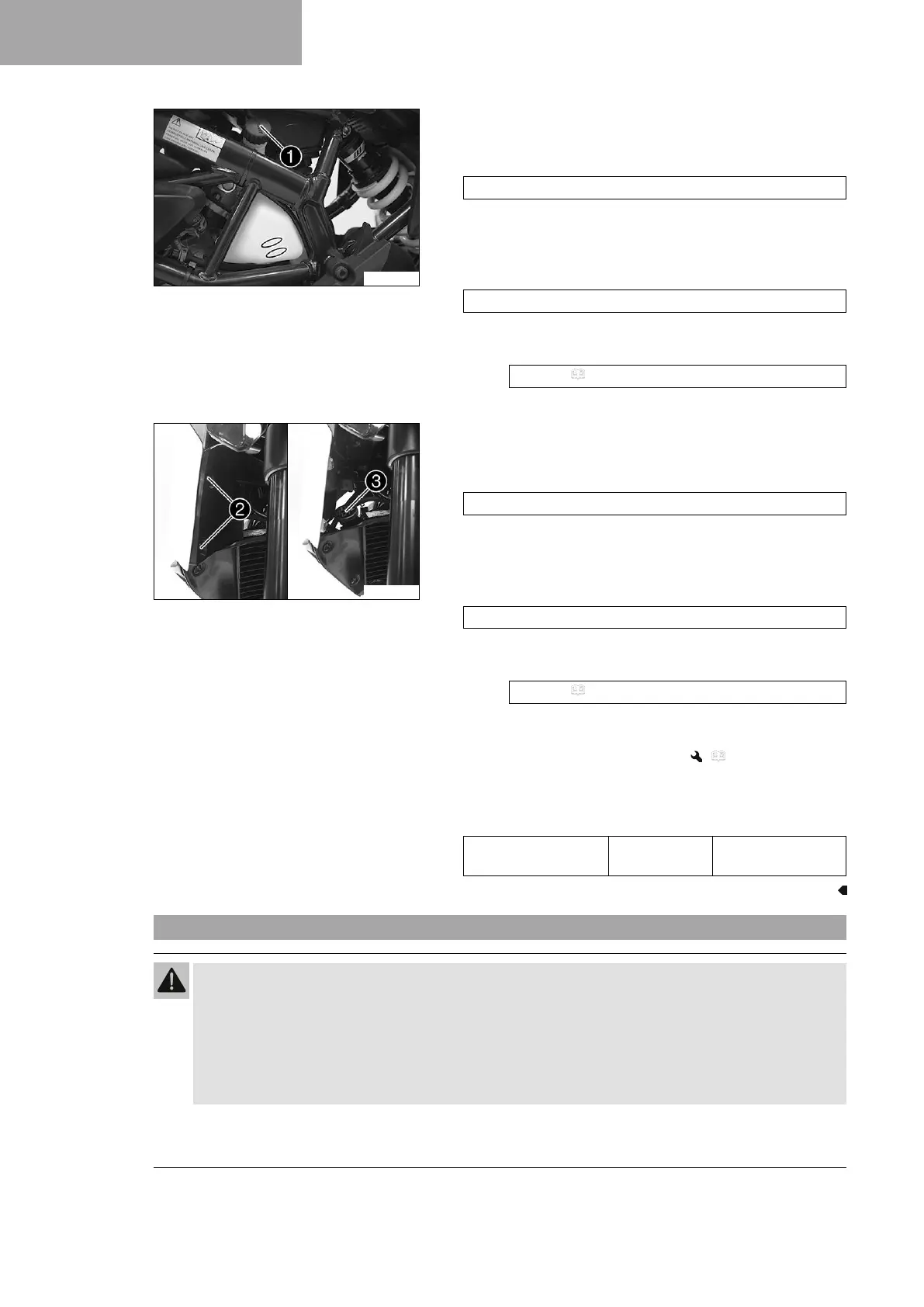

– Stand the motorcycle upright on a horizontal surface.
–
Remove cap
1
of the compensating tank.
– Check the antifreeze in the coolant.
−25 … −45 °C (−13 … −49 °F)
» If the antifreeze in the coolant does not match the speci-
fied value:
– Correct the antifreeze in the coolant.
– Check the coolant level in the compensating tank.
The coolant level must be between the two markings.
» If the coolant level does not match the specified value:
– Correct the coolant level.
Coolant ( p. 121)
– Mount the cap of the compensating tank.
S04173-10
–
Remove screws
2
and take off the cover.
–
Remove radiator cap
3
.
– Check the antifreeze in the coolant.
−25 … −45 °C (−13 … −49 °F)
» If the antifreeze in the coolant does not match the speci-
fied value:
– Correct the antifreeze in the coolant.
– Check the coolant level in the radiator.
The radiator must be filled completely.
» If the coolant level does not match the specified value:
– Check the coolant level and the reason for the loss.
Coolant ( p. 121)
» If you had to add more coolant than the specified amount:
> 0.20 l (> 0.21 qt.)
– Fill/bleed the cooling system. ( p. 98)
– Mount the radiator cap.
–
Position the cover, mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
17.3 Checking the coolant level
Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not open the radiator, the radiator hoses or other cooling system components if the engine or the
cooling system are at operating temperature.
– Allow the cooling system and the engine to cool down before you open the radiator, the radiator hoses
or other components of the cooling system.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
