13 SERVICE WORK ON THE CHASSIS

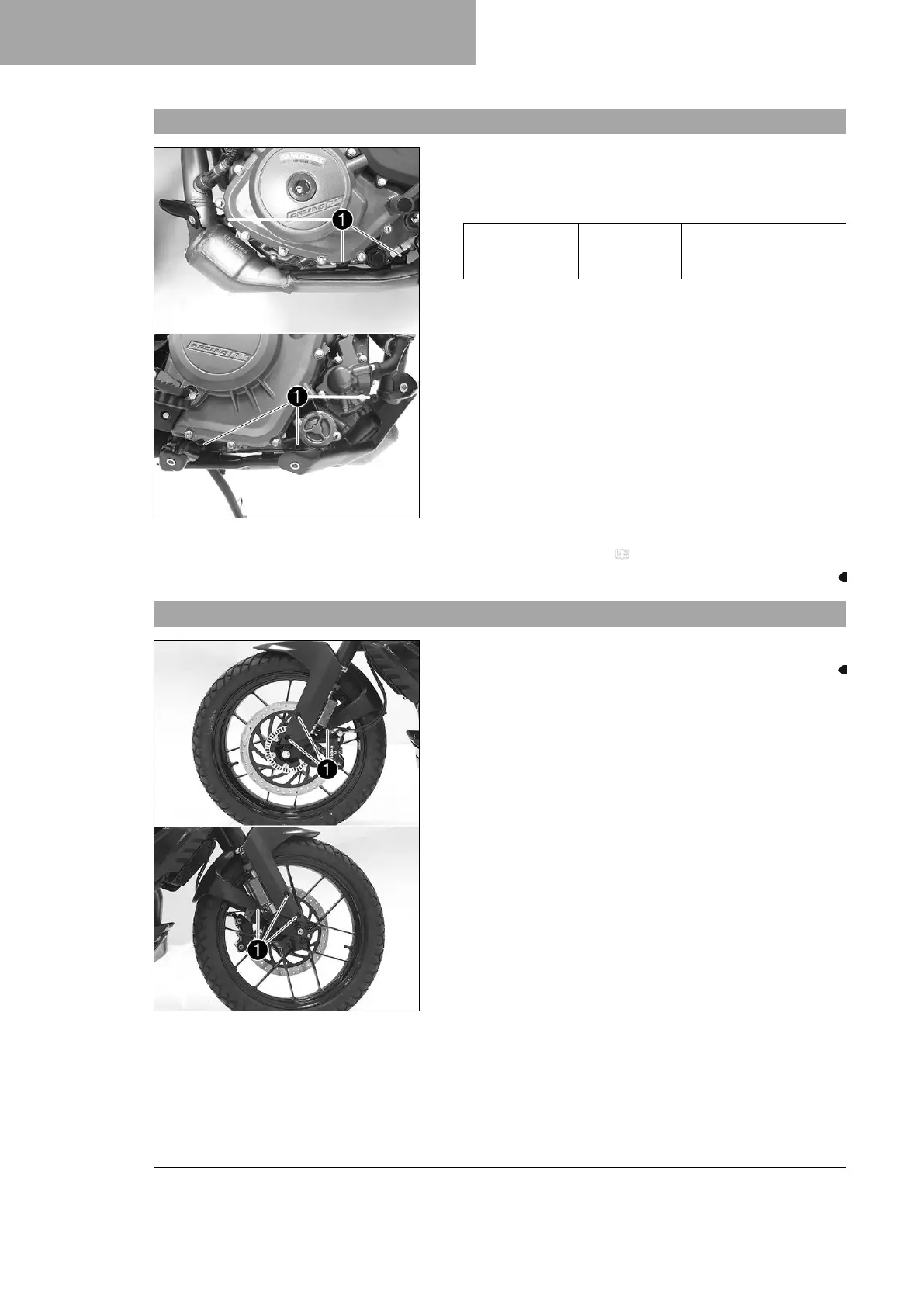

13.18 Installing the engine guard retaining bracket

A00691-10

Main work

– Position the engine guard retaining bracket, mount and tighten

screws

Guideline

Screw, engine

guard retaining

bracket

M6 9 Nm (6.6 lbf ft)

Loctite

243™

Finishing work

– Install the motor guard. ( p. 69)

13.19 Removing front fender

A00704-10

–

Remove screws

. Take off the front fender.
