KTM 390 ADVENTURE EU 2022 User Manual

ERGONOMICS 8
41

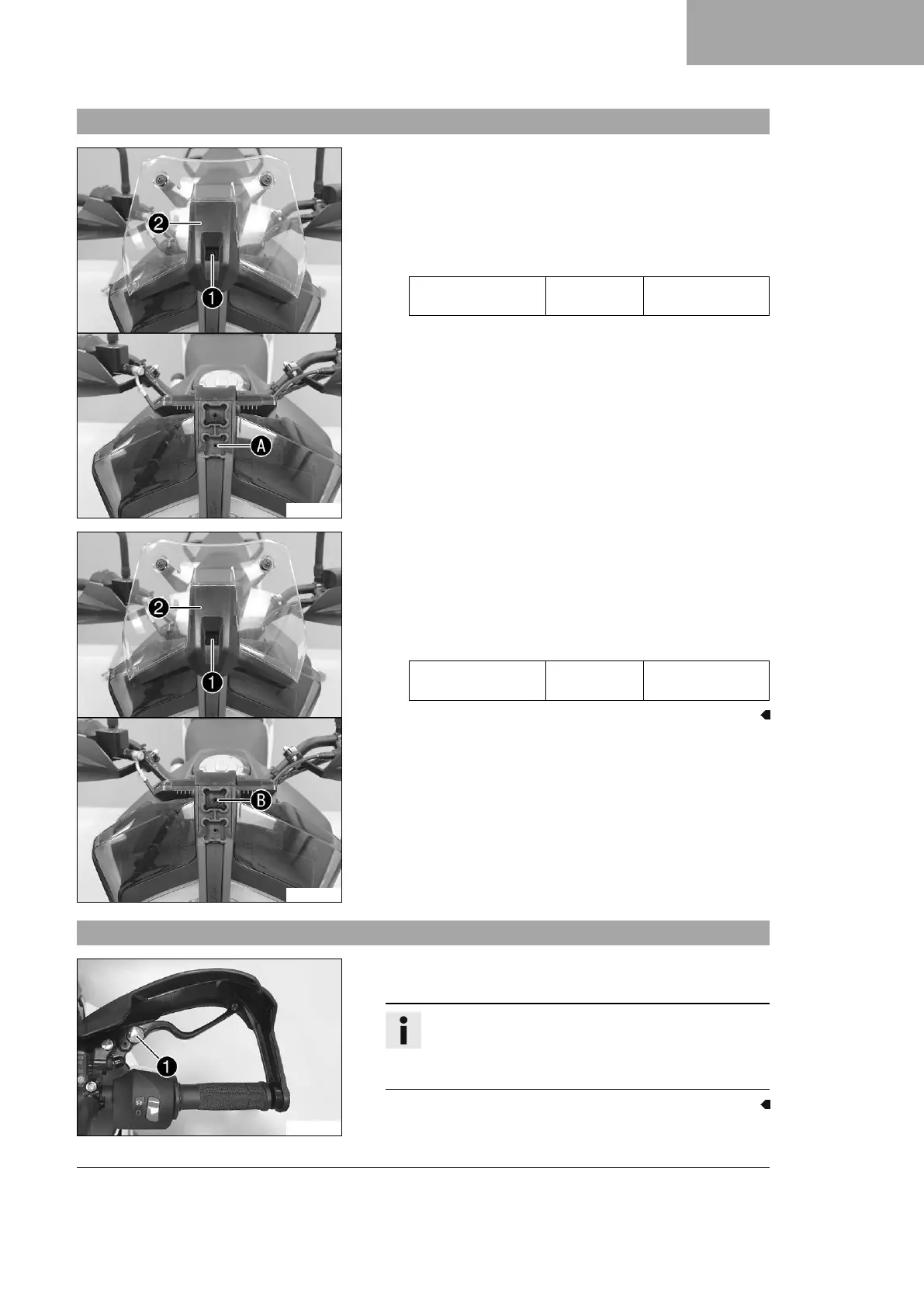

8.2 Adjusting the windshield
S04129-10
Condition
Low position
–
Remove screw
1
and windshield
2
.
–
Position windshield
2
in lower recess
A
.
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
S04129-11
Condition
High position
–
Remove screw
1
and windshield
2
.
–
Position windshield
2
in upper recess
B
.
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
8.3 Adjusting the basic position of the hand brake lever
S04143-12
– Adjust the basic position of the hand brake lever to your hand
size by turning adjusting wheel
1
.
Info
Push the hand brake lever forward and turn the adjust-
ing wheel.
Do not make any adjustments while riding.
