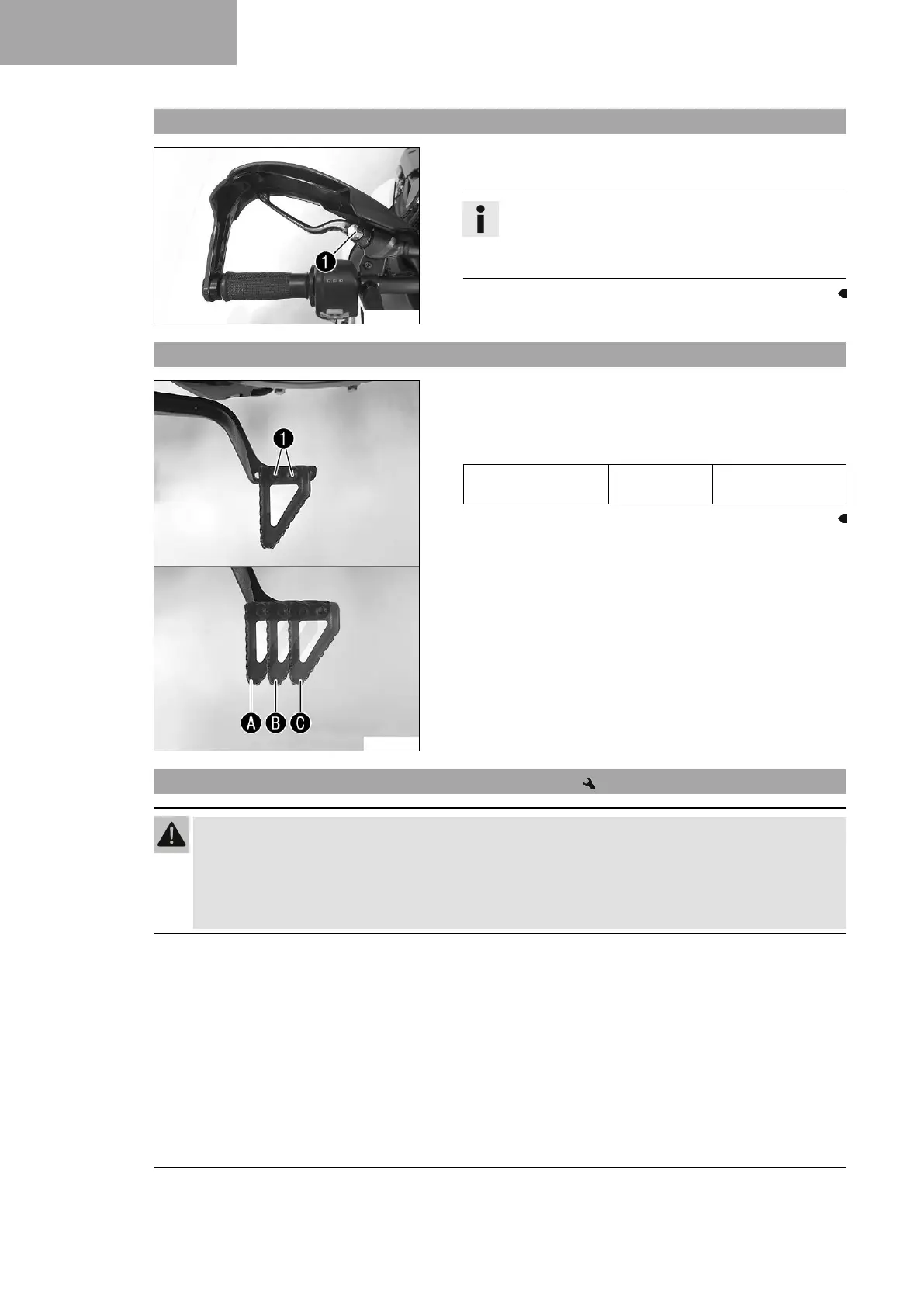

8.4 Adjusting the basic position of the clutch lever
S04142-11
– Adjust the basic position of the clutch lever to your hand size
by turning adjusting wheel
1
.
Info
Push the clutch lever forward and turn the adjusting
wheel.
Do not make any adjustments while riding.
8.5 Adjusting foot brake lever stub
S04152-10
–
Remove screws
1
with the foot brake lever stub.
–
Move the foot brake lever stub into desired position
A
,
B
or
C
. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
8.6 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
