15 WHEELS, TIRES
82
F00861-11
–

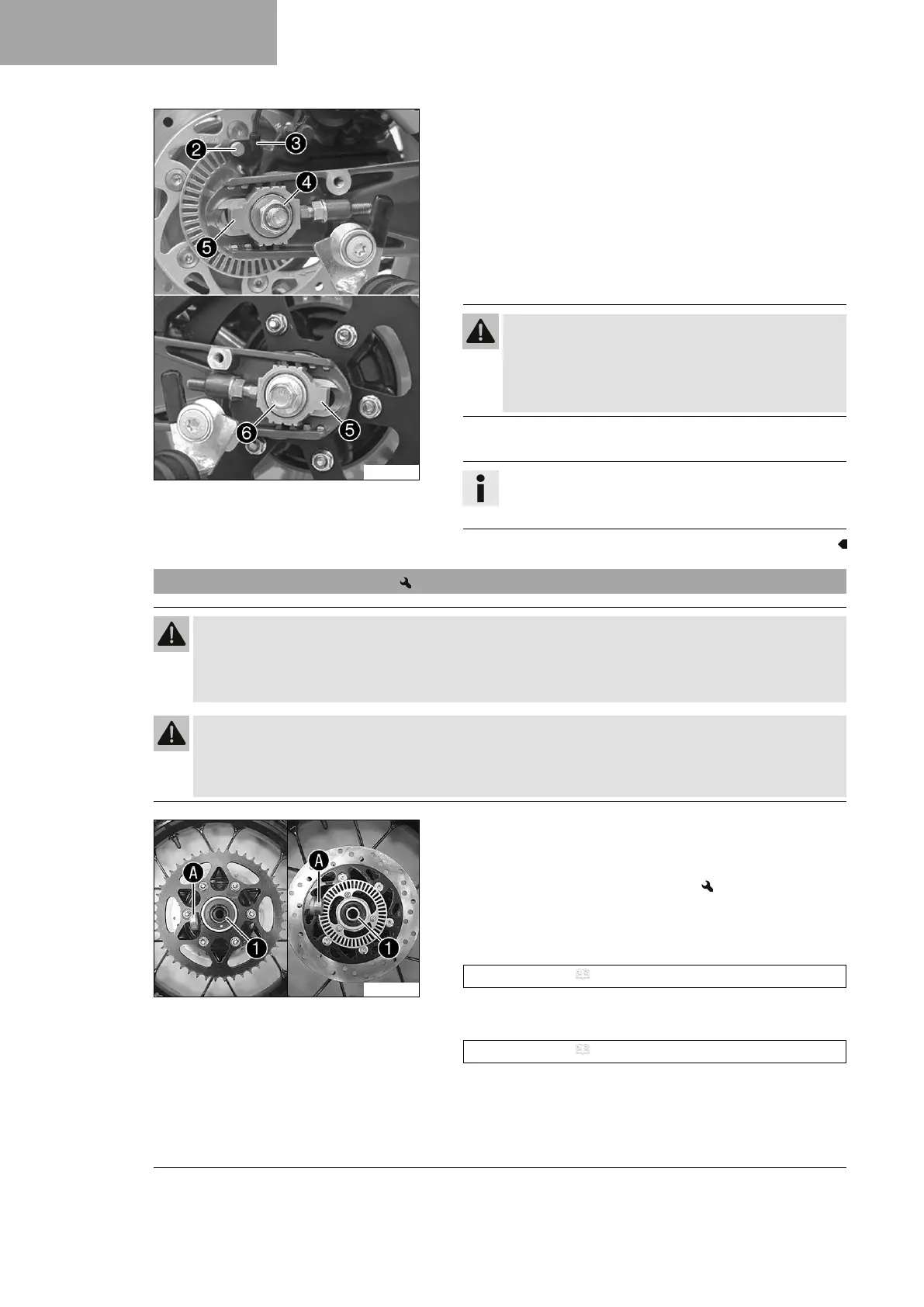

Remove screw
2
and pull wheel speed sensor
3
out of the
hole.
–
Remove nut
4
and washer.
–
Take off chain adjuster
5
.
–
Holding the rear wheel, withdraw wheel spindle
6
with the
washer and chain adjuster
5
.
– Push the rear wheel forward as far as possible and take the
chain off the rear sprocket.
– Push chain guard to the side.
Warning
Danger of accidents Damaged brake discs reduce the
braking effect.
– Always lay the wheel down in such a way that the
brake disc is not damaged.
– Pull the rear wheel back and take it out of the link fork.
Info
Do not operate the foot brake lever when the rear wheel
is removed.
15.4 Installing the rear wheel
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
Warning
Danger of accidents There is no braking effect to start with at the rear brake after installing the rear
wheel.
– Actuate the foot brake several times before going on a ride until you can feel a firm pressure point.
S04159-10
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the rear wheel bearing.
– Remove the spacers.
–
Clean and grease shaft seal rings
1
and contact surfaces
A
of the spacers.
Long-life grease ( p. 123)
– Clean the thread of the wheel spindle and axle nut.
– Clean and grease wheel spindle.
Long-life grease ( p. 123)
– Clean the contact areas on the brake caliper bracket and link
fork.
