8 ERGONOMICS
40

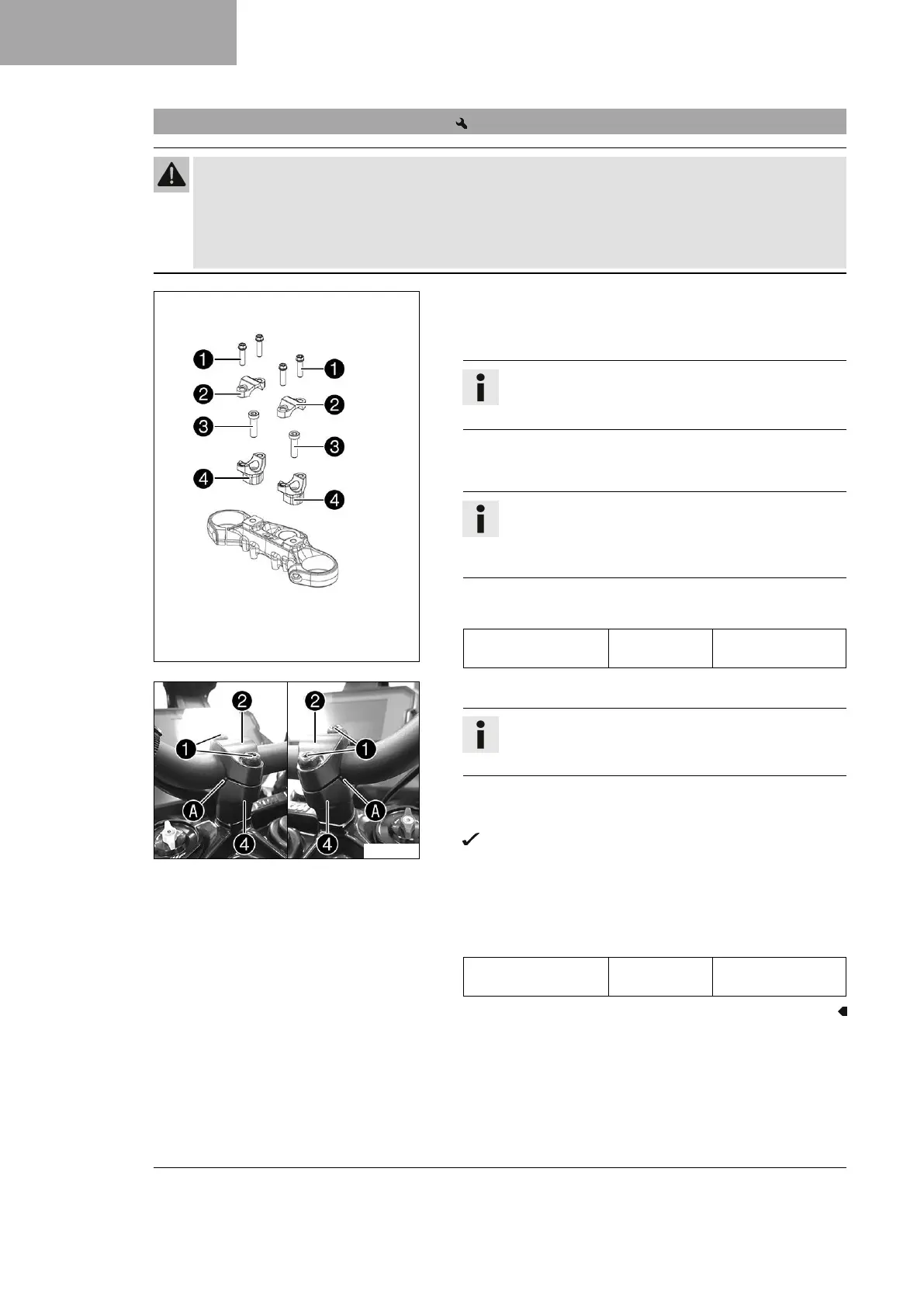

8.1 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
S04167-10
–
Remove screws
1
.
–
Take off the handlebar clamps
2
. Take off the handlebar,
place to one side and secure.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
3
. Take off handlebar supports
4
.
–
Place handlebar supports
4
in the required position.
Info
The handlebar supports are longer and higher on one
side.
Position the left and right handlebar supports evenly.
–
Mount and tighten screws
3
.
Guideline
Screw, handlebar
support
M10 40 Nm (29.5 lbf ft)
S04168-10
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position handlebar clamps
2
.
–
Mount screws
1
, but do not tighten yet.
The markings
A
on the handlebar are aligned centrally to
the handlebar support and handlebar clamp.
–
First bolt the handlebar clamp with screws
1
onto the longer,
higher side of handlebar support
4
so that both parts touch.
–
Tighten screws
1
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
