4 VIEW OF VEHICLE 9

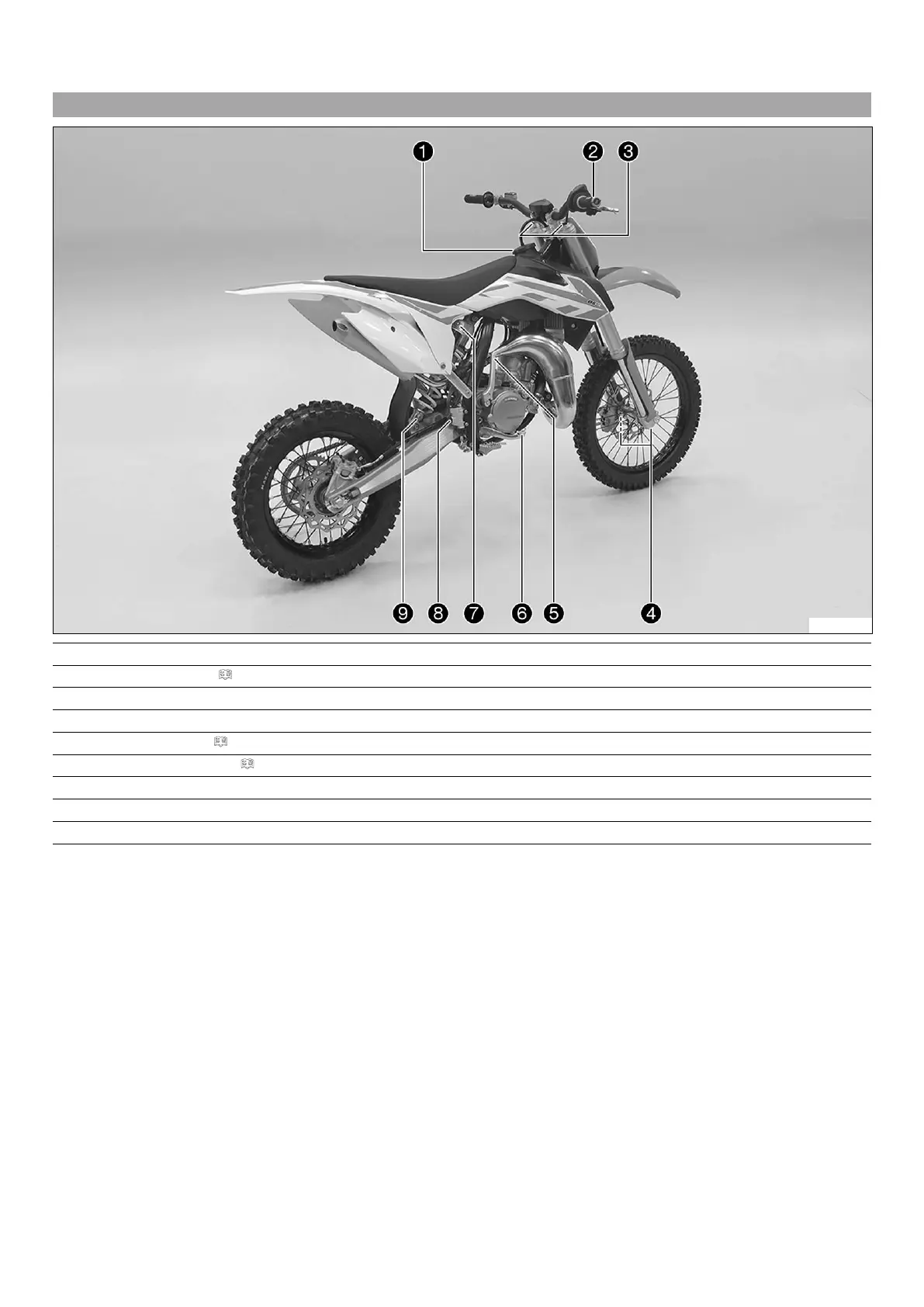

4.2 View of vehicle, rear right (example)

S01155-10

1 Filler cap

2 Throttle grip ( p. 11)

3 Fork rebound adjustment

4 Fork compression adjustment

5 Kick starter ( p. 13)

6 Foot brake lever ( p. 13)

7 Shock absorber compression adjustment

8 Level viewer for brake fluid, rear

9 Shock absorber rebound adjustment

Questions and Answers:

Need help?

Do you have a question about the KTM 85 SX 19/16 2017 and is the answer not in the manual?

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
