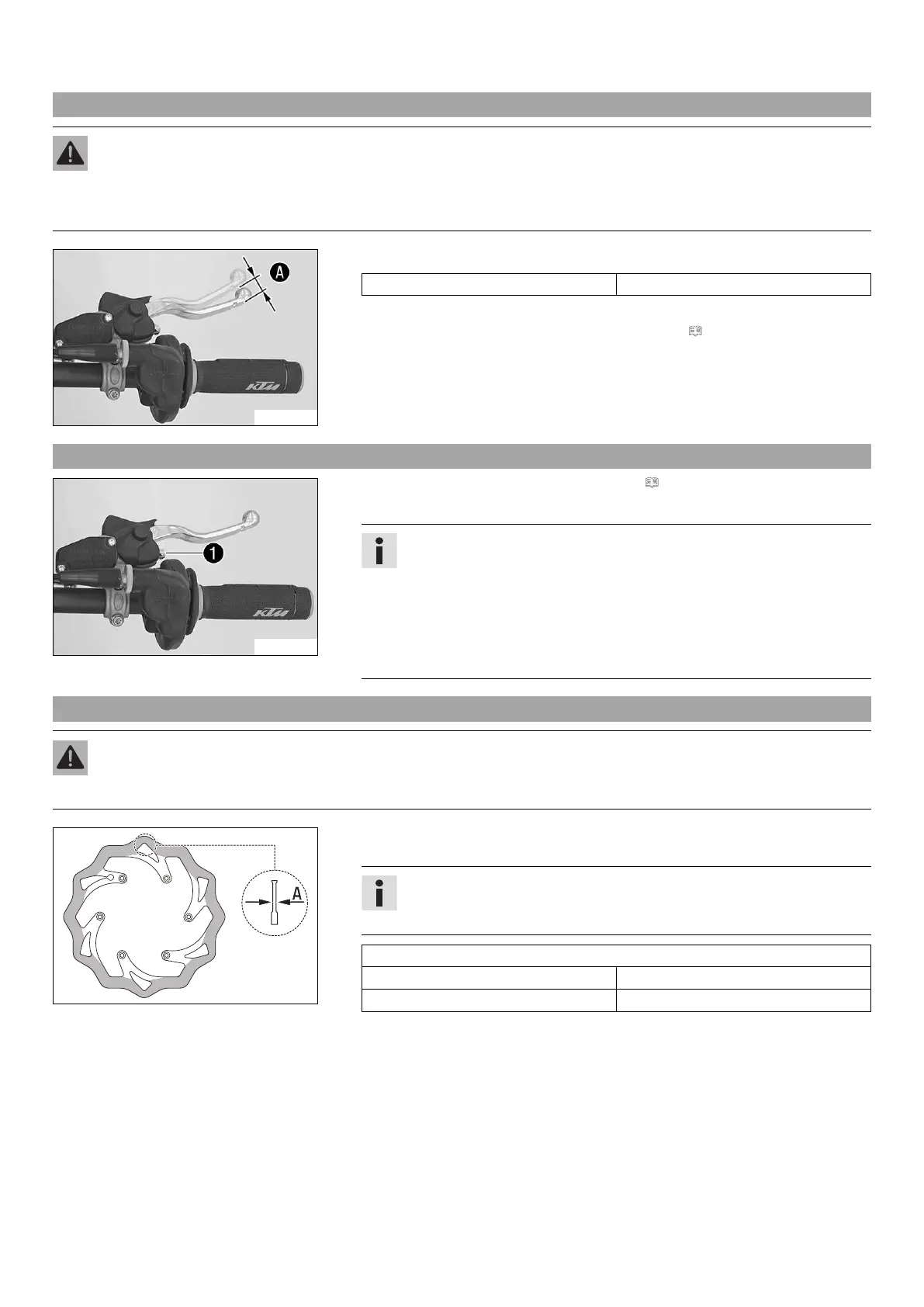

12 BRAKE SYSTEM 54
12.1 Checking the free travel of the hand brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the hand brake lever, pressure builds up on the front brake circuit.
– Set the free travel on the hand brake lever in accordance with the specification.
S01165-10
–
Push the hand brake lever forward and check free travel
.
Free travel of hand brake lever ≥ 3 mm (≥ 0.12 in)
» If the free travel does not meet specifications:
– Adjust the free travel of the handbrake lever. ( p. 54)
12.2 Adjusting the free travel of the handbrake lever
S01164-10
– Check the free travel of the hand brake lever. ( p. 54)
–
Adjust the free travel of the handbrake lever with adjustment screw
.
Info
Turn the adjusting screw clockwise to reduce free travel. The pressure point
moves away from the handlebar.
Turn the adjusting screw counterclockwise to increase free travel. The pres-
sure point moves towards the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply force.
Do not make any adjustments while riding!
12.3 Checking the brake discs
Warning
Danger of accidents Worn-out brake discs reduce the braking effect.
– Make sure that worn-out brake discs are replaced immediately. (Your authorized KTM workshop will be glad to help.)
400257-10
– Check the thickness of the front and rear brake discs at several places on the disk
to see if it conforms to measurement
.
Info
Wear reduces the thickness of the brake disc around the area used by the
brake linings.
Brake discs - wear limit
Front 3.5 mm (0.138 in)
Rear 3.5 mm (0.138 in)
» If the brake disc thickness is less than the specified value:
– Change the brake disc.
– Check the front and rear brake discs for damage, cracking and deformation.
» If the brake disc shows signs of damage, cracking, or deformation:
– Change the brake disc.
