14 COOLING SYSTEM 70
S01152-10

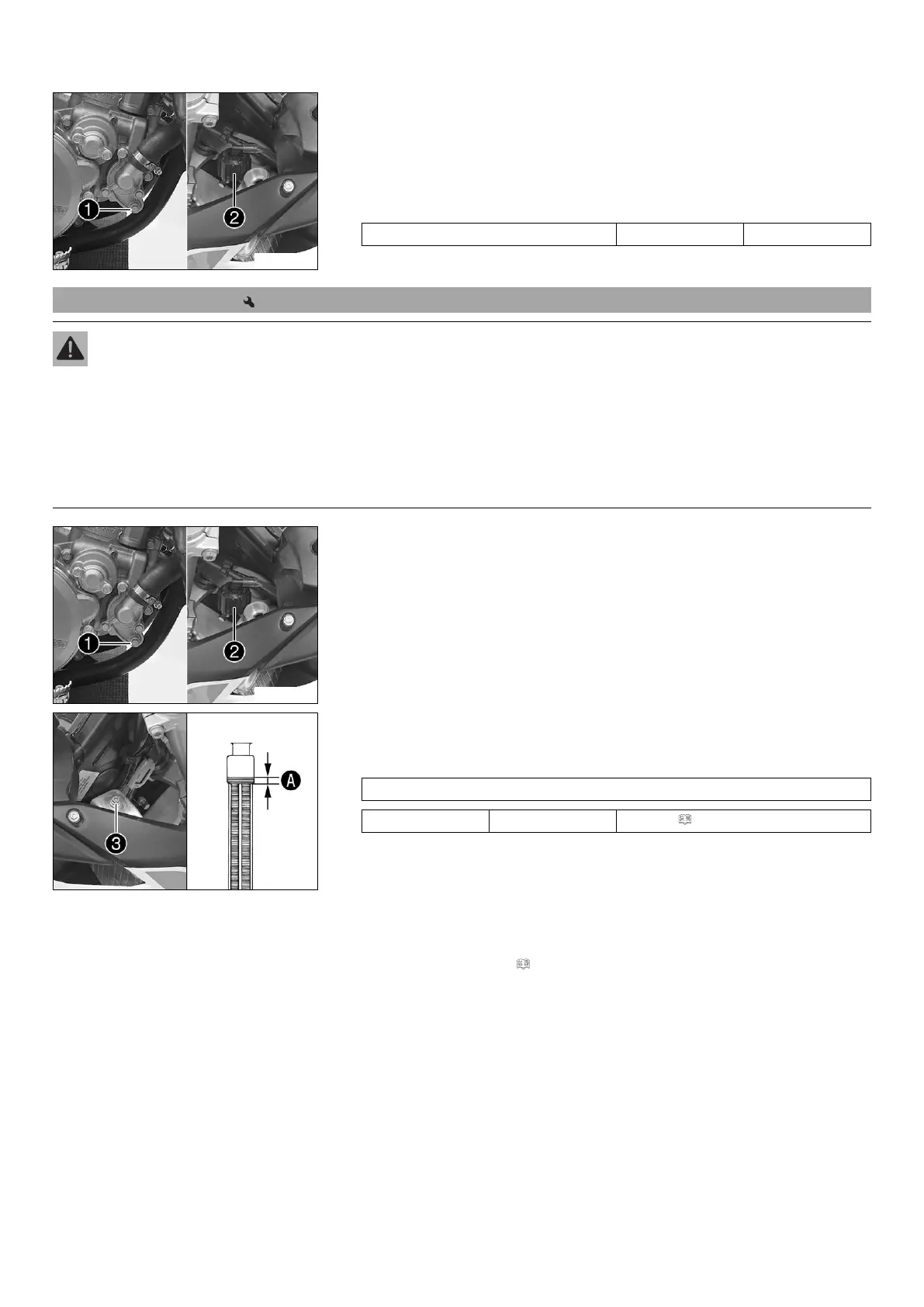

– Position the motorcycle upright.
– Place a suitable container under the water pump cover.
–
Remove screw

. Take off radiator cap

.
– Completely drain the coolant.
–
Mount and tighten screw

with a new seal ring.
Guideline
Screw, water pump cover M6 10 Nm (7.4 lbf ft)
14.5 Refilling coolant
Warning
Danger of poisoning Coolant is toxic and a health hazard.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.
S01152-10
Main work
–
Make sure that screw

is tightened.
– Position the motorcycle upright.
–
Take off radiator cap

.
S01151-10
–
Remove bleeder screw

.
–
Pour coolant in up to measurement

above the radiator fins.
Guideline
10 mm (0.39 in)
Coolant 1.0 l (1.1 qt.) Coolant ( p. 87)
–
Mount and tighten screws bleeder screw

.
– Mount the radiator cap.
Finishing work
– Take a short test ride.
– Check the cooling system for leaks.
– Check the coolant level. ( p. 69)
