KTM 85 SX 19/16 2017 User Manual

11 SERVICE WORK ON THE CHASSIS 36

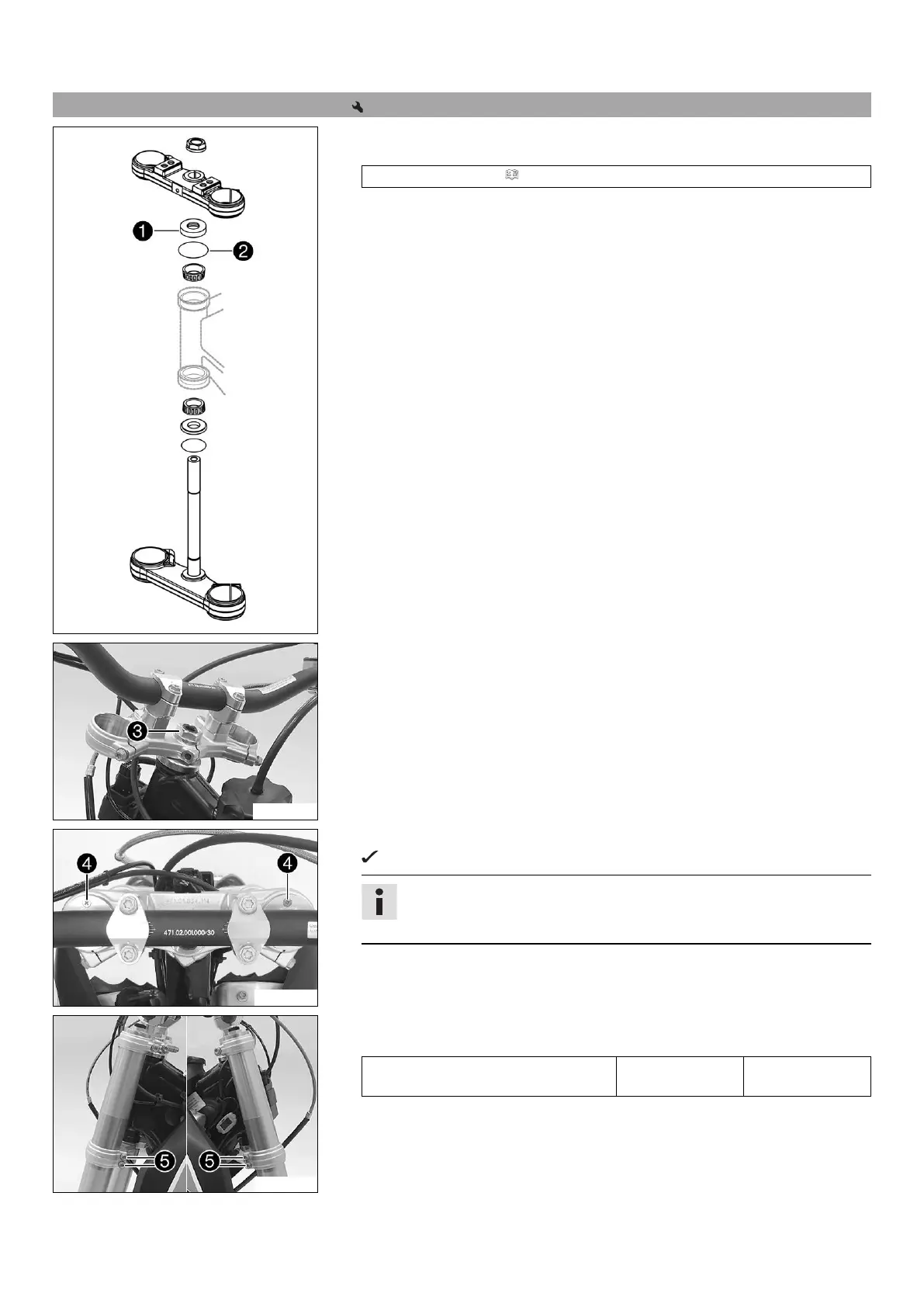

11.10 Installing the lower triple clamp
C00250-10
Main work
– Clean the bearing and sealing elements, check for damage, and grease.
High viscosity grease ( p. 89)
– Insert the lower triple clamp with the steering stem. Mount the upper steering head
bearing.
–
Slide on O-ring

.
–
Position protective ring

.
H01359-10
– Position the upper triple clamp with the handlebar.
–
Mount nut

, but do not tighten it yet.
S01180-10
– Position the fork legs.
Bleeder screws

are positioned toward the front.
Info
The second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
S01179-10
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
