KTM 85 SX 19/16 2017 User Manual

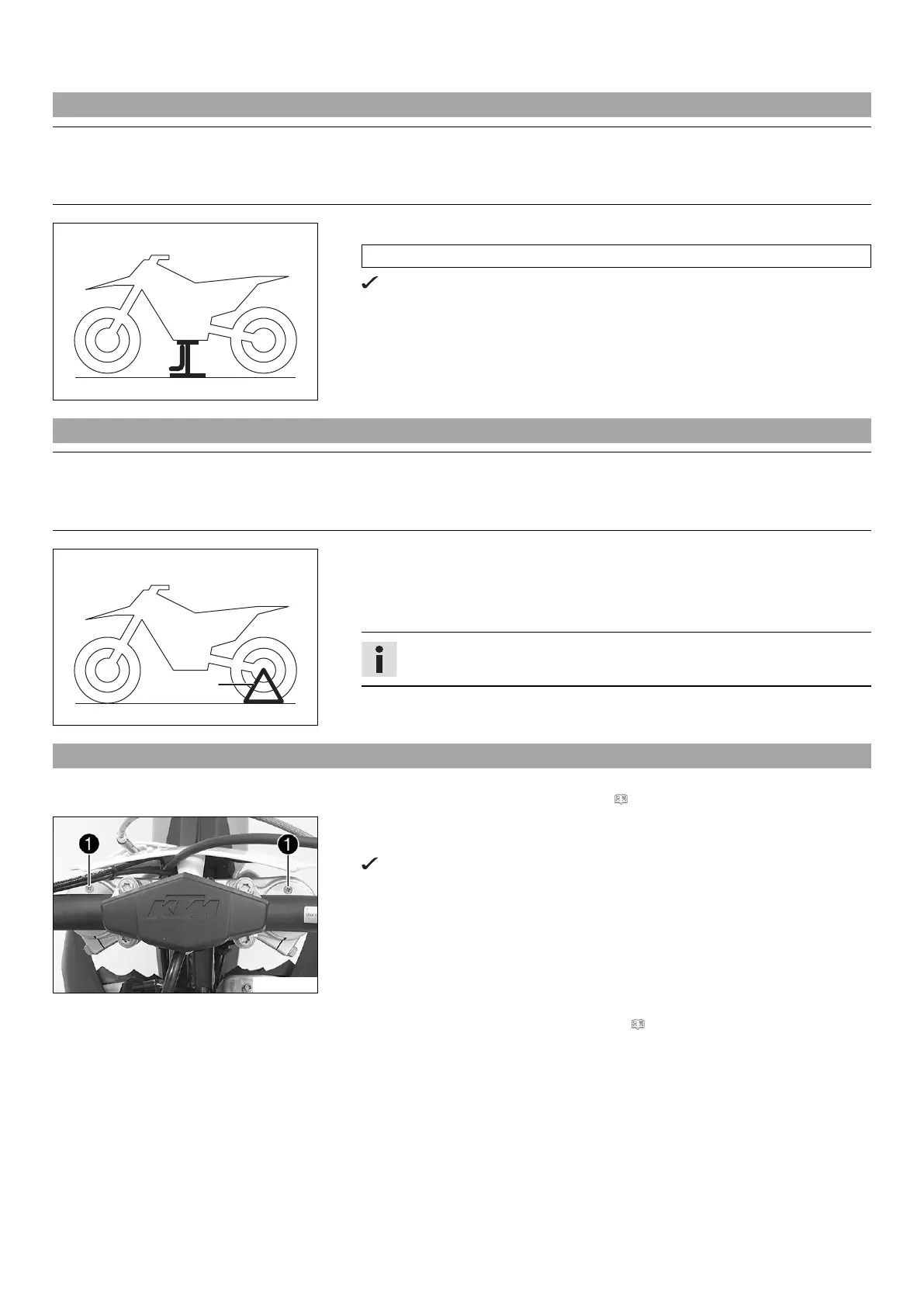

11 SERVICE WORK ON THE CHASSIS 32
11.1 Raising the motorcycle with the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
401942-01
– Raise the motorcycle at the frame underneath the engine.
Lift stand (78929955100)
Neither wheel is in contact with the ground.
– Secure the motorcycle against falling over.
11.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
0
0
11
402001-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, insert plug-in stand

into the left side of the wheel spin-
dle.
Info
Remove the plug-in stand before riding.
11.3 Bleeding the fork legs
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 32)
H01352-10
Main work
–
Release bleeder screws

.
Any excess pressure escapes from the interior of the fork.
– Tighten the bleeder screws.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
