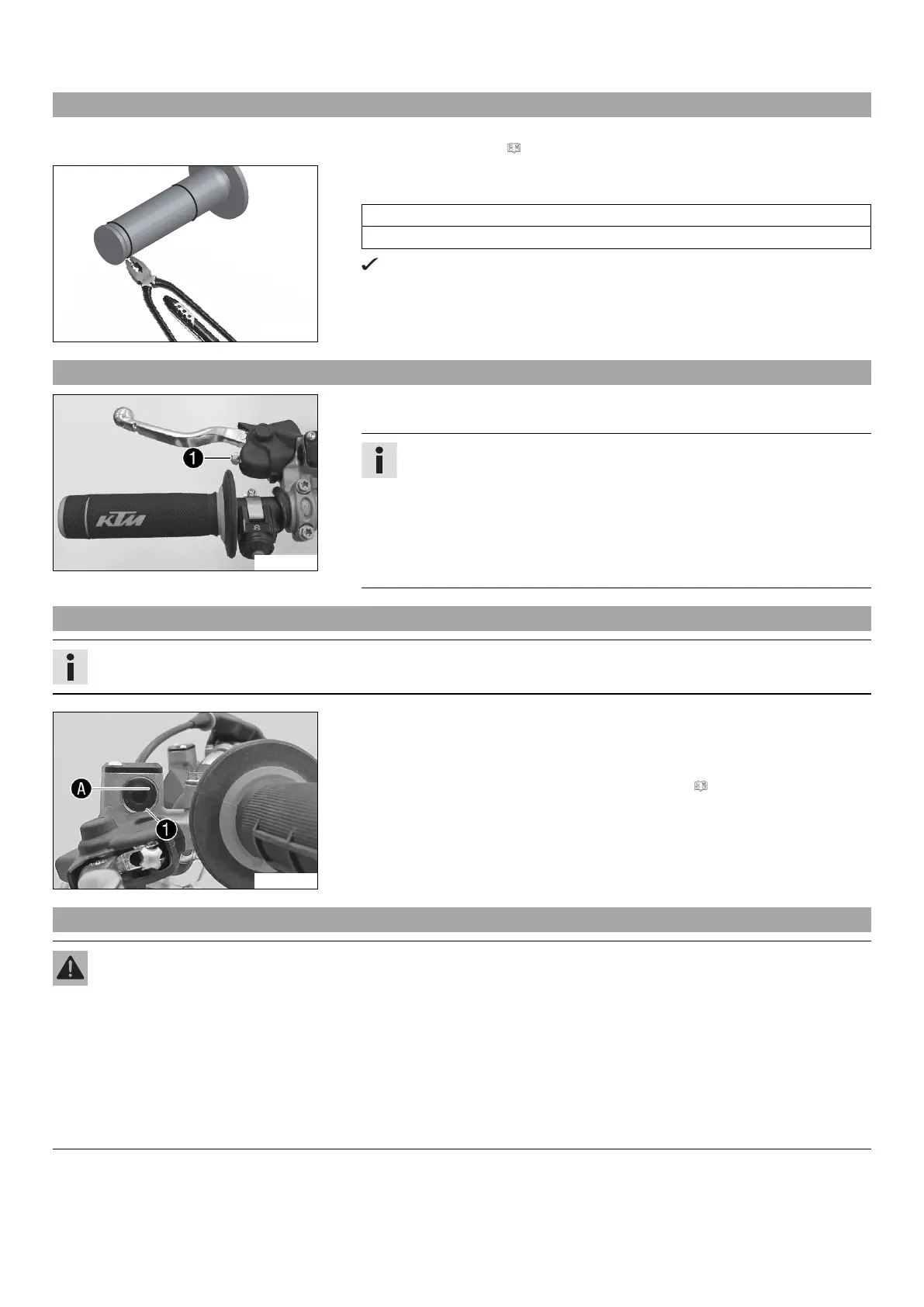

11 SERVICE WORK ON THE CHASSIS 51
11.42 Additionally securing the rubber grip
Preparatory work
– Check the rubber grip. ( p. 50)
401198-01
Main work
– Secure the rubber grip at two points using the securing wire.
Securing wire (54812016000)
Wire twister forceps (U6907854)
The twisted wire ends face away from the hands and are bent toward the rub-
ber grip.
11.43 Adjusting the basic position of the clutch lever
S01176-10
– Adjust the basic position of the clutch lever to the size of the rider's hand using
adjusting screw
.
Info
Turn the adjusting screw clockwise to increase the distance between the
clutch lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between
the clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply force.
Do not make any adjustments while riding!
11.44 Checking the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch facing discs.
C00259-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Check the fluid level in viewer
.
»
If the fluid has dropped below marking
in the viewer:
– Correct the fluid level of the hydraulic clutch. ( p. 51)
11.45 Correcting the fluid level of the hydraulic clutch
Warning
Skin irritation Brake fluid causes skin irritation.
– Keep brake fluid out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Do not allow brake fluid to come into contact with the skin, the eyes or clothing.
– Consult a doctor immediately if brake fluid has been swallowed.
– Rinse the affected area with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water immediately and consult a doctor if brake fluid comes into contact with the eyes.
– If brake fluid spills on to your clothing, change the clothing.
