KTM 85 SX 19/16 2017 User Manual

20 TECHNICAL DATA 83

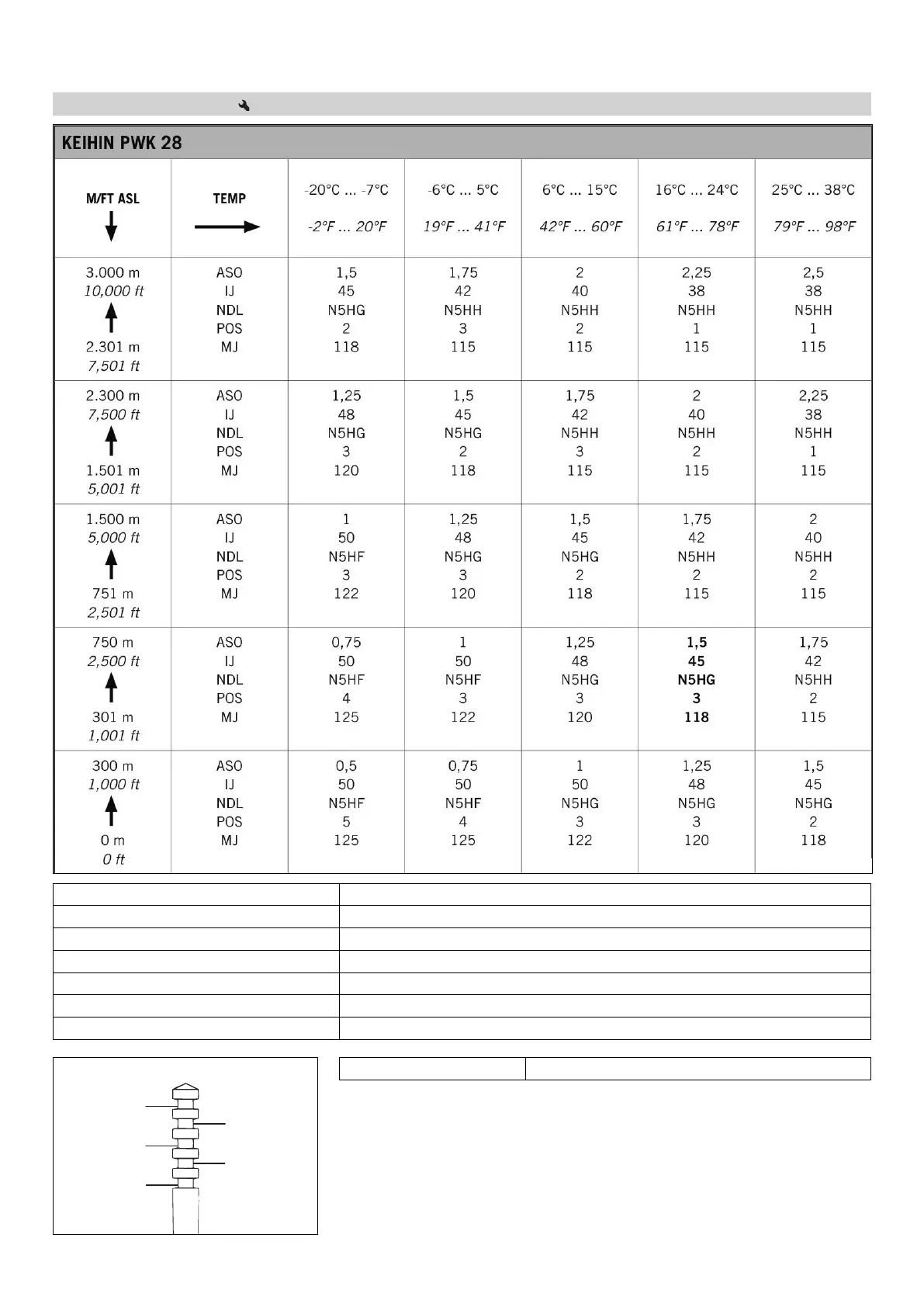

20.3.1 Carburetor tuning
401536-01
M/FT ASL Above sea level
TEMP Temperature
ASO Idle air adjusting screw open (rotations)
IJ Idling jet
NDL Jet needle
POS Needle position from above
MJ Main jet
0
0
44
0
0
33
0
0
55
0
0
22
0
0
11
B00075-10
1... 5 Needle position from above
The five possible needle positions are shown here.
The carburetor tuning depends on the defined ambient and operating conditions.

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
