KTM 85 SX 19/16 2017 User Manual

11 SERVICE WORK ON THE CHASSIS 40

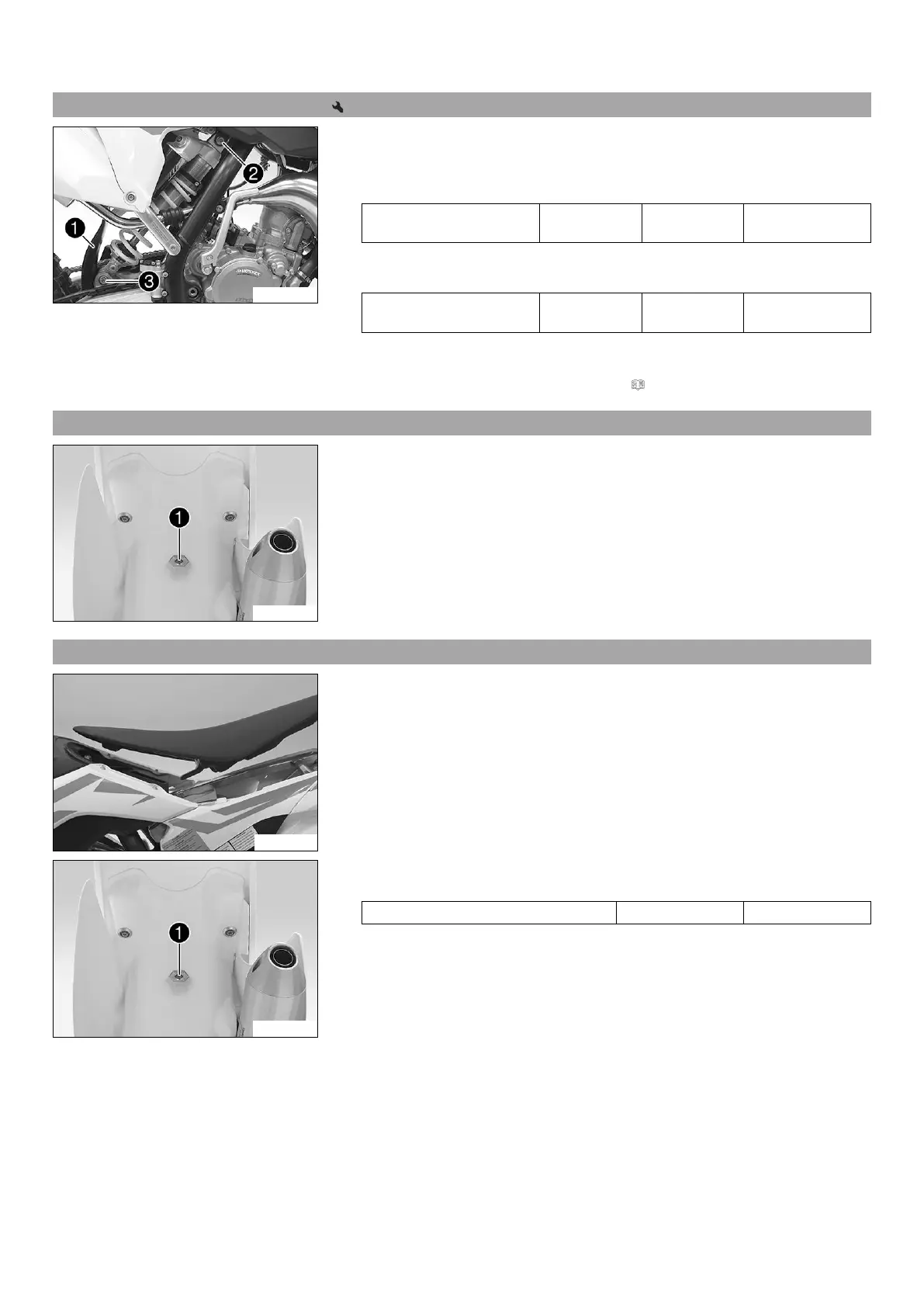

11.19 Installing the shock absorber
H01367-11
Main work
–
Push splash protector

to the side and position the shock absorber. Mount and
tighten screw

.
Guideline
Screw, top shock absorber M12 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw

.
Guideline
Screw, bottom shock
absorber
M12 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
– Attach brake line.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)
11.20 Removing the seat
H01368-10
–
Remove screw

.
– Raise the rear of the seat, pull the seat back, and lift it off.
11.21 Mounting the seat
S01175-10
– Mount the front of the seat on the collar bushing of the fuel tank, lower the seat at
the rear, and push the seat forward.
– Make sure that the seat is correctly locked in.
H01368-10
–
Mount and tighten screw

of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
