KTM 85 SX 19/16 2017 User Manual

11 SERVICE WORK ON THE CHASSIS 35

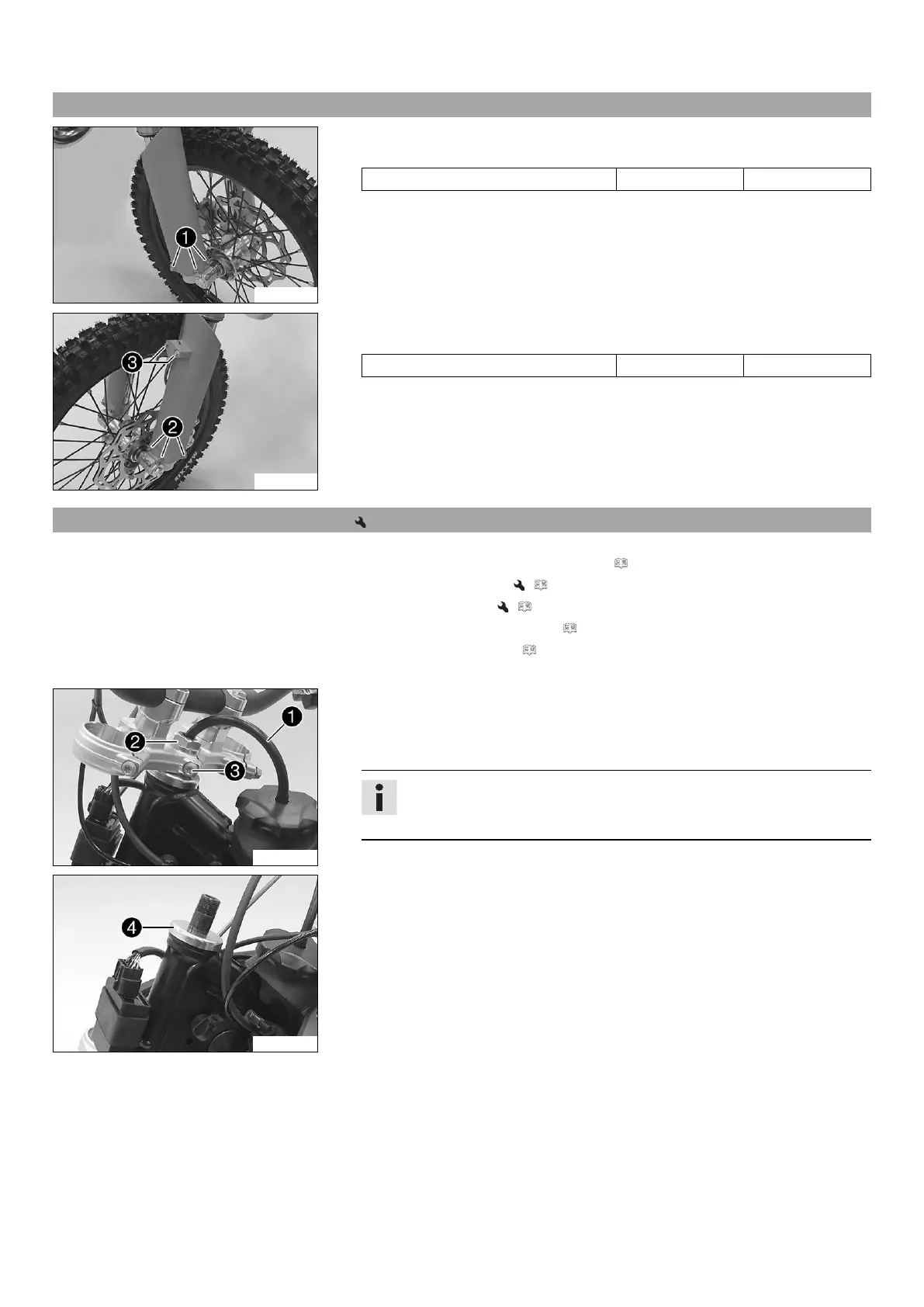

11.8 Installing the fork protector
S01160-11
–
Position the fork protection on the right fork leg. Mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
S01159-11
–
Position the fork protection on the left fork leg. Mount and tighten screws

.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–
Position the brake line and clamp. Mount and tighten screws

.
11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 32)
– Remove the front wheel. ( p. 64)
– Remove the fork legs. ( p. 33)
– Remove the start number plate. ( p. 39)
– Remove the front fender. ( p. 39)
– Remove the handlebar cushion.
H01357-10
Main work
–
Pull fuel tank breather

out of the steering stem.
–
Remove nut

. Remove screw

, pull off the upper triple clamp with the han-
dlebar in an upward direction, and hang it to the side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
H01358-10
–
Remove protective ring

.
– Take off the lower triple clamp with the steering stem in a downward direction.
– Remove the upper steering head bearing.

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
