KTM 85 SX 19/16 2017 User Manual

11 SERVICE WORK ON THE CHASSIS 34

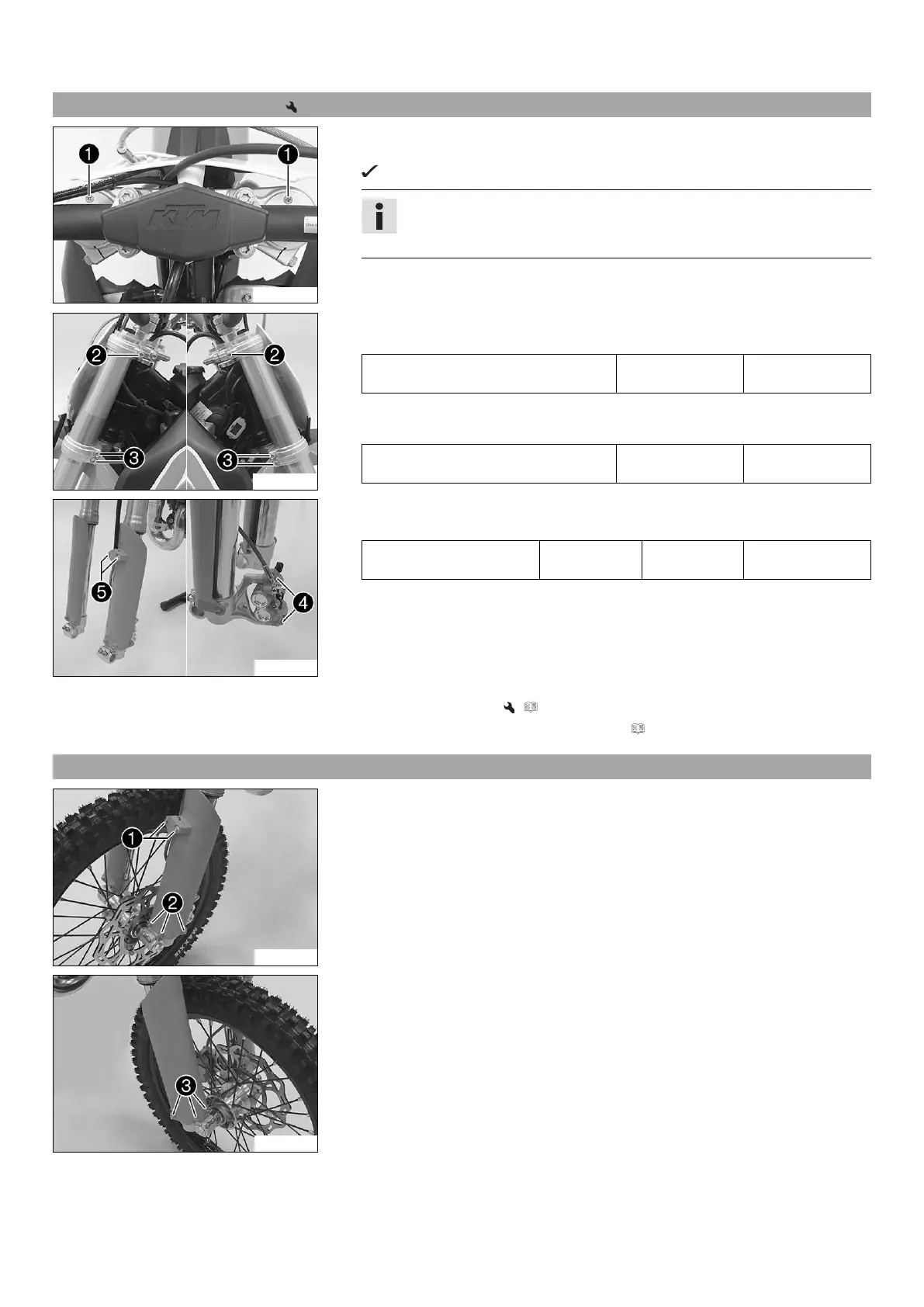

11.6 Installing the fork legs
H01352-10
Main work
– Position the fork legs.
Bleeder screws

are positioned toward the front.
Info
The second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
H01354-11
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
–
Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
S01158-11
–
Position the brake caliper with spacers and fit and tighten screws

.
Guideline
Screw of brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Position the brake line and clamp. Mount and tighten screws

.
Finishing work
– Install the front wheel. ( p. 64)
– Remove the motorcycle from the lift stand. ( p. 32)
11.7 Removing the fork protector
S01159-10
–
Remove screws

. Take off the clamp.
–
Remove screws

on the left fork leg. Take off the fork protector.
S01160-10
–
Remove screws

on the right fork leg. Take off the fork protector.

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
