KTM 85 SX 19/16 2017 User Manual

16 SERVICE WORK ON THE ENGINE 76
– Start the engine and check that it is oil-tight.
Finishing work
– Check the gear oil level. ( p. 75)

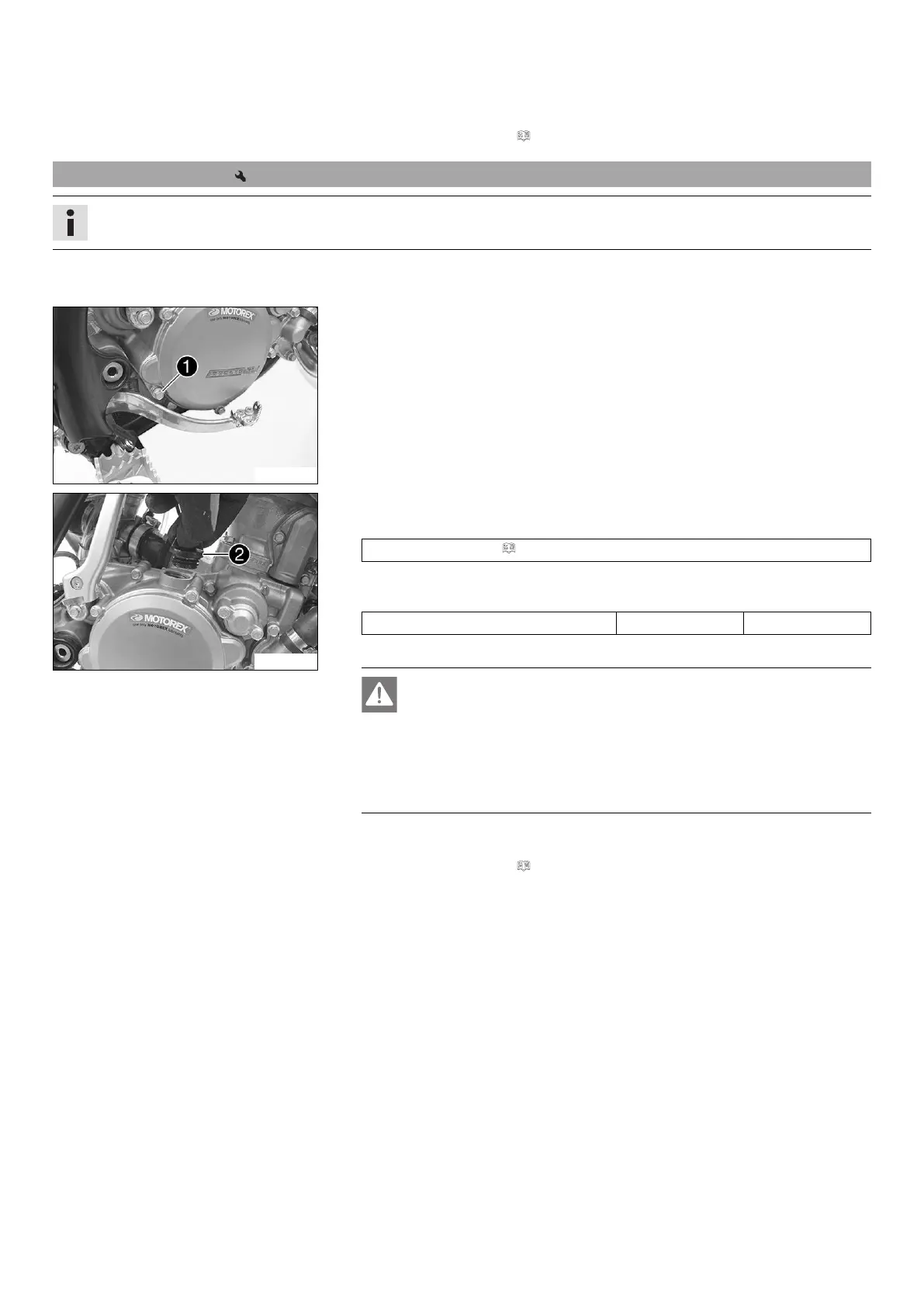

16.3 Adding gear oil
Info
Too little gear oil or poor-quality gear oil results in premature wear to the transmission.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
S01147-10
Main work
–
Remove screw

.
S01146-10
–
Remove filler plug

.
– Add gear oil until it flows out of the hole of the gear oil level screw.
Engine oil (15W/50) ( p. 87)
–
Mount and tighten screw

.
Guideline
Screw, engine case M6x25 10 Nm (7.4 lbf ft)
–
Mount and tighten filler plug

.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result
in unconsciousness and death.
– Always make sure there is sufficient ventilation when running the
engine.
– Use an effective exhaust extraction system when starting or running the
engine in an enclosed space.
– Start the engine and check that it is oil-tight.
Finishing work
– Check the gear oil level. ( p. 75)

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
