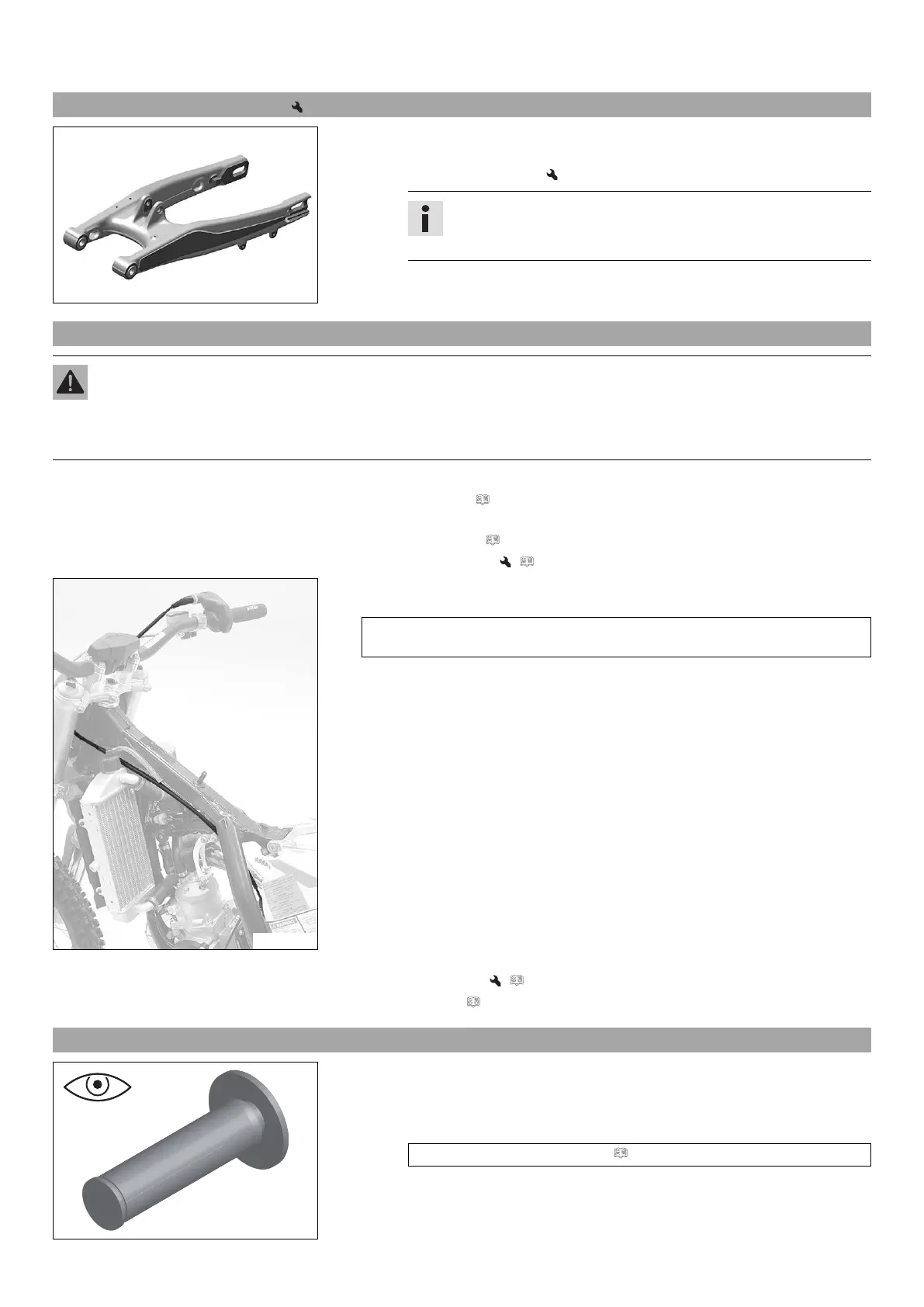

11 SERVICE WORK ON THE CHASSIS 50
11.39 Checking the swingarm
402152-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair of the swingarm is not
authorized by KTM.
11.40 Checking the routing of the throttle cable
Warning
Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specification.
Preparatory work
– Remove the seat. ( p. 40)
–
Turn tap handle
on the fuel tap to the OFF position.
(Figure S01157-10 p. 12)
– Remove the fuel tank. ( p. 44)
H01382-01
Main work
– Check the routing of the throttle cable.
The throttle cable must be routed to the carburetor on the left side above the
fuel tank bracket.
» If the throttle cable is not routed as specified:
– Correct the routing of the throttle cable.
Finishing work
– Install the fuel tank. ( p. 45)
– Mount the seat. ( p. 40)
11.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage and wear and to ensure they
are firmly seated.
» If a rubber grip is damaged, worn or loose:
– Change and secure the rubber grip.
Grip adhesive (00062030051) ( p. 89)
