11 SERVICE WORK ON THE CHASSIS 49
H01379-10

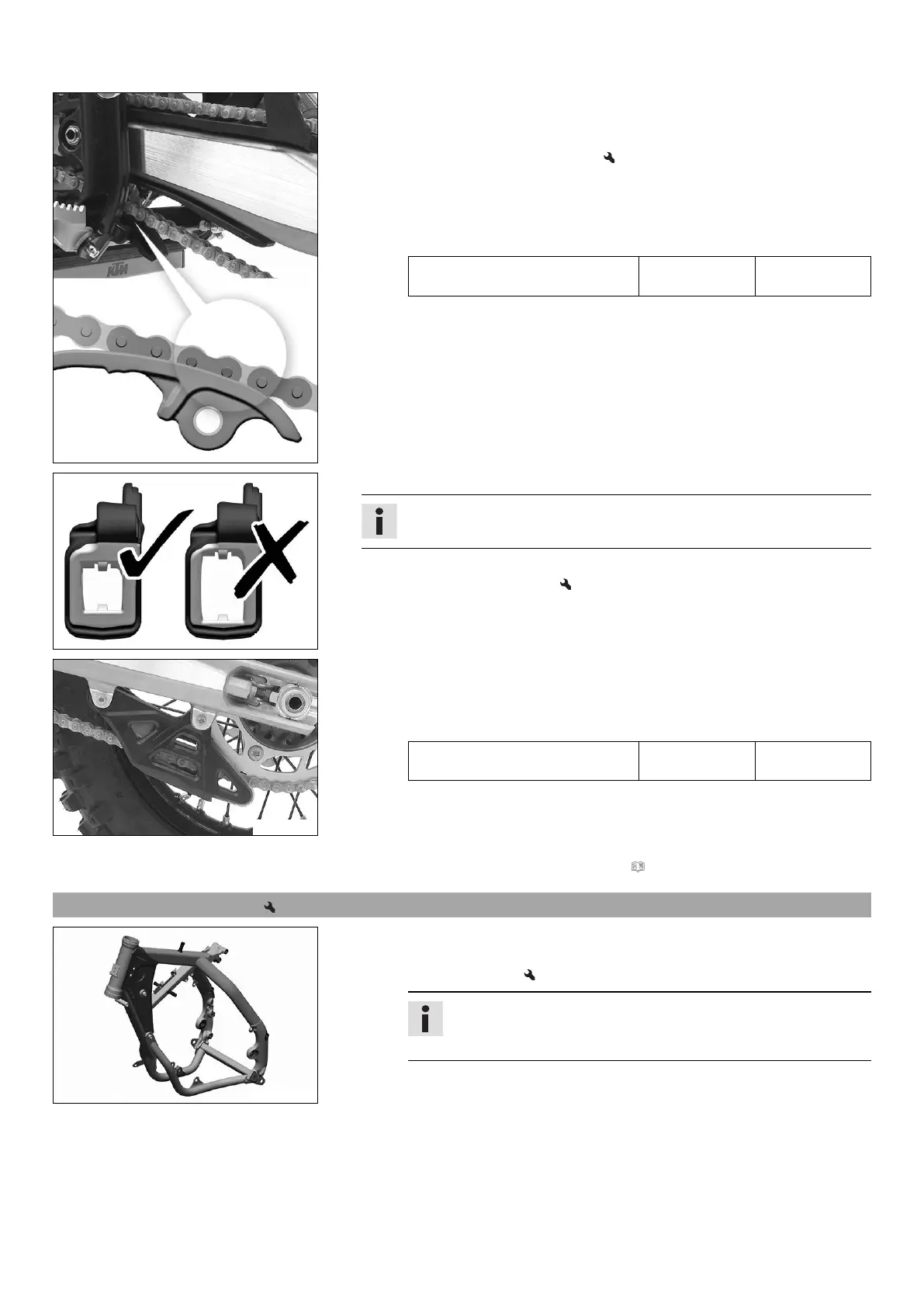

– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
piece:
– Change the chain sliding piece.
– Check the chain sliding piece for tightness.
» If the chain sliding piece is loose:
– Tighten the screw on the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
401760-01
– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide.
H01380-01
– Check the chain guide for tightness.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)
11.38 Checking the frame
401542-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a mechanical impact:
– Change the frame.
Info
Always replace a frame that has been damaged due to a mechanical
impact. Repair of the frame is not authorized by KTM.

KTM 85 SX 19/16 2017 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Clutch	Wet, multi-disc clutch, Formula hydraulics
Front Wheel	1.60 x 19"
Rear Wheel	2.15 x 16"
Seat Height	890 mm
Cooling System	Liquid cooled
Bore x Stroke	47 mm x 48.95 mm
Frame	Central tube frame, chrome molybdenum steel
Front Suspension	WP upside-down Ø 43 mm
Rear Suspension	WP monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Wheelbase	1, 290 mm ± 10 mm
Tank Capacity	5.2 liters
