7 COMBINATION INSTRUMENT

7.16.27 MTC

F02775-01

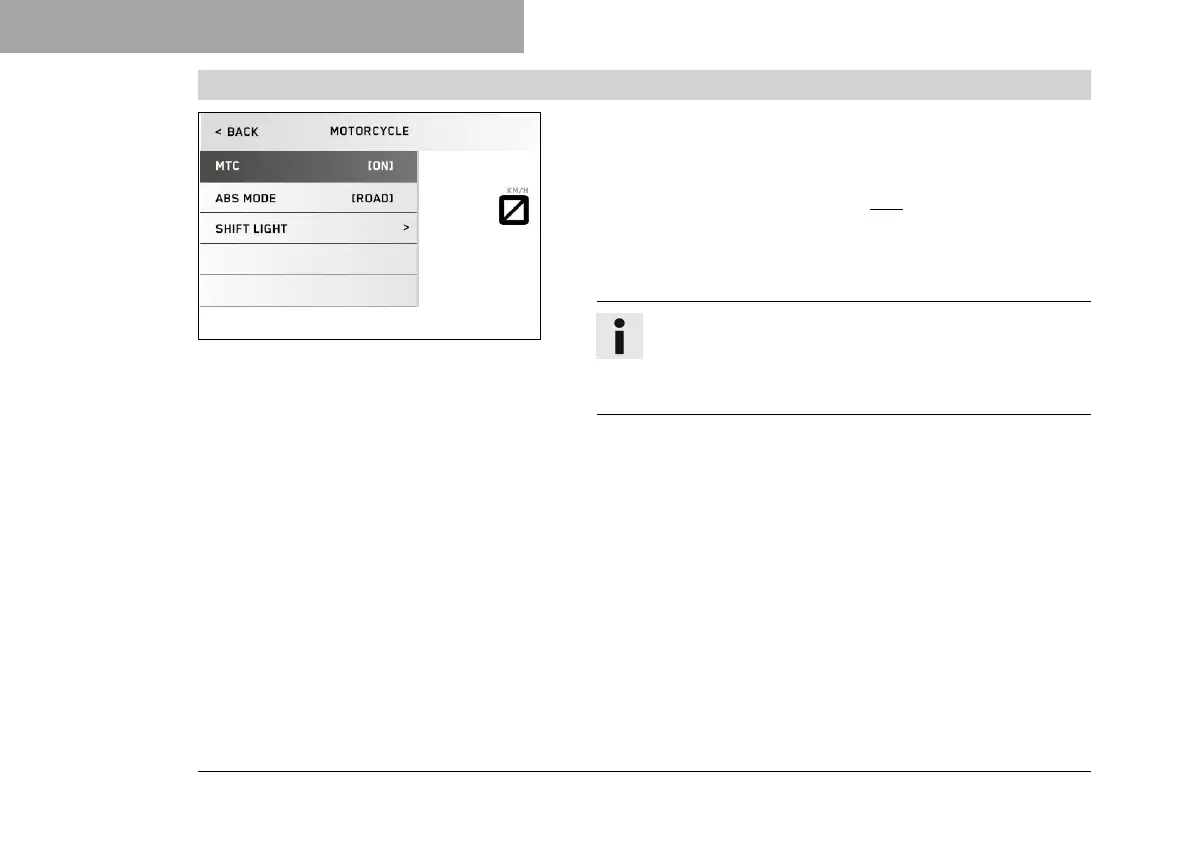

– Press the SET button when the menu is closed.

– Press the UP or DOWN button until the Motorcycle menu is

marked on the display. Press the SET button to open the menu.

– Press the UP or DOWN button until MTC is marked on the dis-

play.

– Keep the SET button pressed for 3-5 seconds to switch MTC on

or off.

Info

Do not open the throttle when switching on or off.

After the ignition is switched on, motorcycle traction

control is enabled again.
