16 ELECTRICAL SYSTEM

228

Fuse (75011088015) ( p. 286)

Tip

Put a spare fuse in the fuse box so that it is available if

needed.

– Check that the power consumer is functioning properly.

– Close the fuse box cover.

Finishing work

– Mount the passenger seat. ( p. 165)

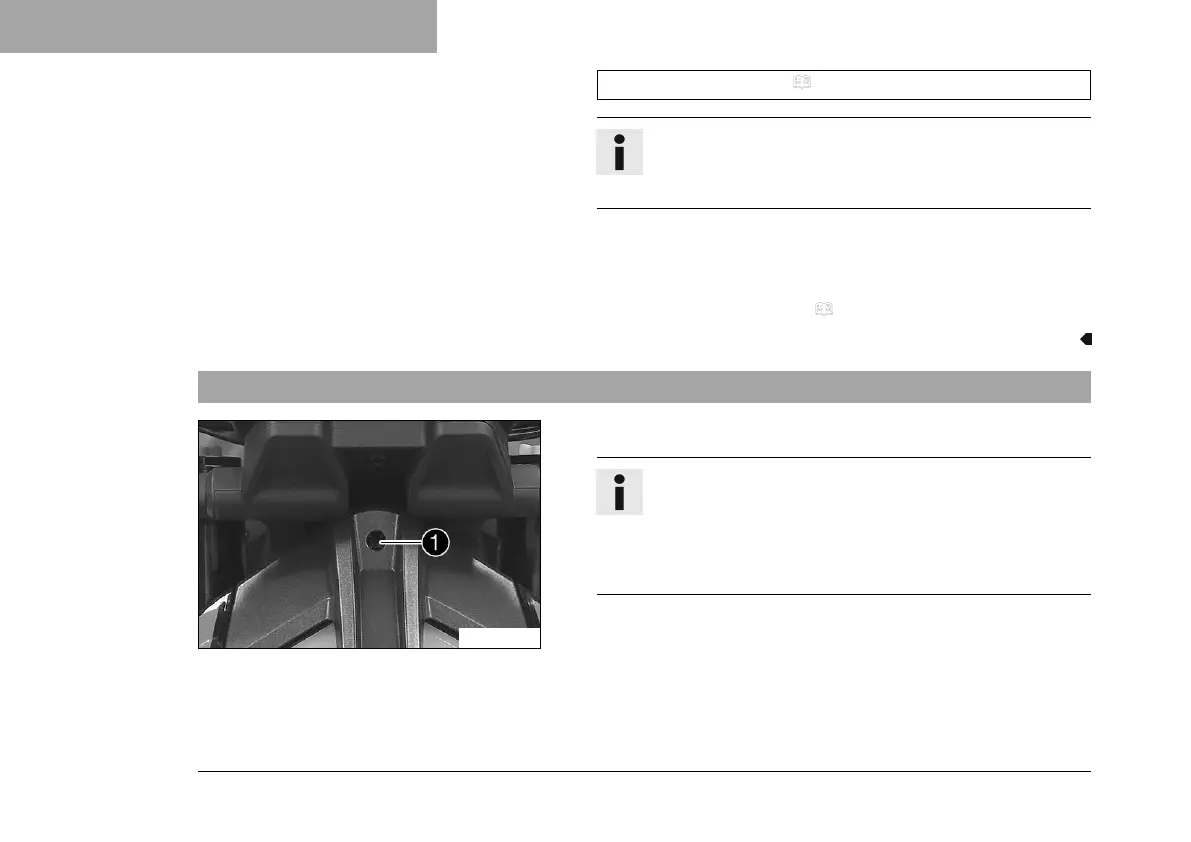

16.8 Loosening the headlight mask with the headlight

F02770-10

–

Completely unscrew adjusting screw

Info

The adjusting screw is fastened to the headlight mask

by a ball head holder.

Do not pull the adjusting screw out of the ball head

adjuster.
