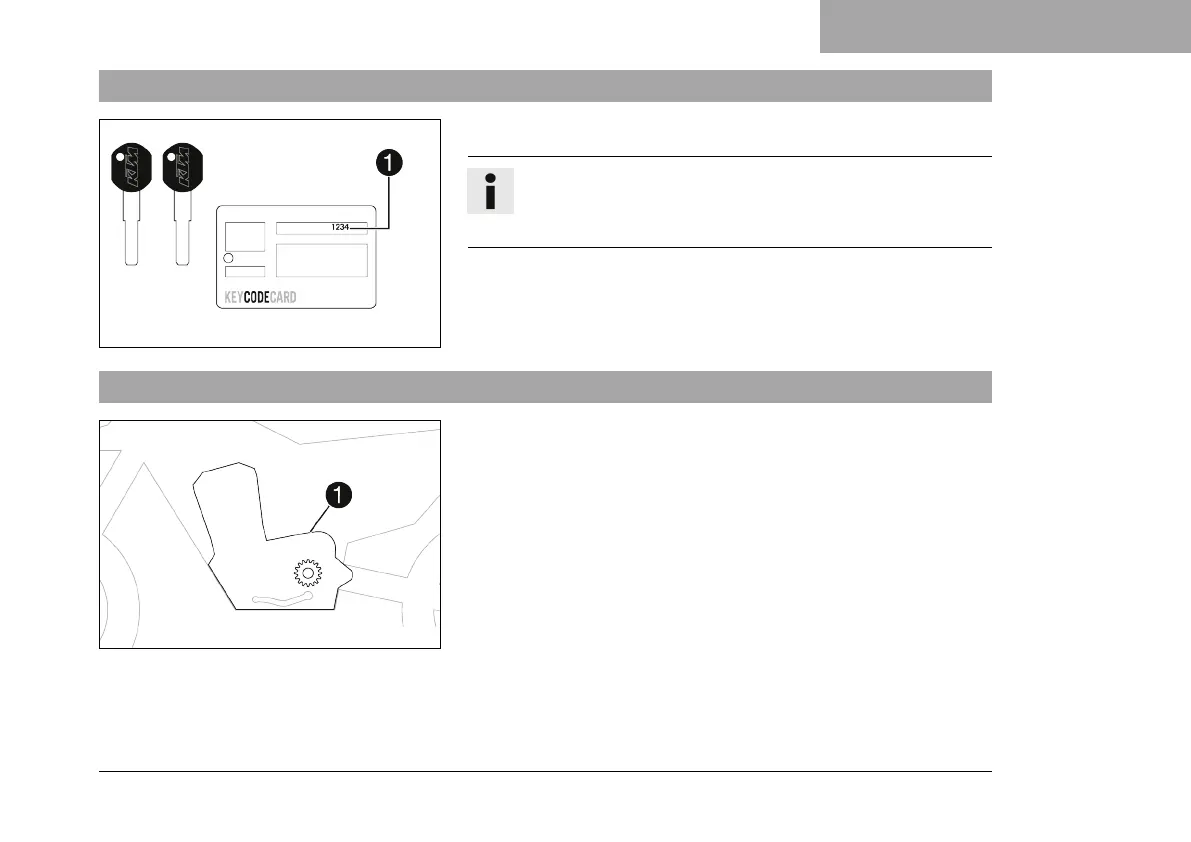

SERIAL NUMBERS 5

5.3 Key number

V01200-10

The key number

can be found on the KEYCODECARD.

Info

You need the key number to order a spare key. Keep

the KEYCODECARD in a safe place.

5.4 Engine number

H01047-10

The engine number

is stamped onto the engine case at the

top.

Default Chapter5
- Table of Contents5
1 Means of Representation12
- Symbols Used12
- Formats Used13
2 Safety Advice14
- Use Definition - Intended Use14
- Misuse14
- Degrees of Risk and Symbols15
- Overview of Labels16
- Reporting Safety Defects21
- Noise Emission Warranty22
- Operating Noise Warning22
- Manufacturer Warranty for the Exhaust Monitoring System22
- Consumer Rights23
- Tampering Warning24
- Safe Operation25
- Protective Clothing26
- Work Rules26
- Environment27
- Owner's Manual27
3 Important Notes28
- Manufacturer Warranty, Implied Warranty28
- Fuel, Auxiliary Substances28
- Spare Parts, Accessories28
- Service29
- Figures29
- Customer Service29
4 View of Vehicle32
- View of Vehicle, Front Left (Example)32
- View of Vehicle, Rear Right (Example)34
5 Serial Numbers36
- Vehicle Identification Number36
- Type Label36
- Key Number37
- Engine Number37
- Fork Part Number38
- Shock Absorber Article Number38
- Steering Damper Article Number39
6 Controls40
- Clutch Lever40
- Hand Brake Lever40
- Throttle Grip41
- Switches on the Left Side of the Handlebar41
- Combination Switch41
- Light Switch42
- Cruise Control System Tip Switch (Optional)43
- Menu Buttons46
- Turn Signal Switch47
- Horn Button48
- Switches on the Right Side of the Handlebar48
- Emergency off Switch/Electric Starter Button48
- Ignition and Steering Lock49
- Opening Fuel Tank Filler Cap50
- Closing the Fuel Tank Filler Cap52
- Seat Lock53
- Tool Set53
- Grab Handle54
- Passenger Foot Pegs55
- Shift Lever56
- Foot Brake Lever57
- Side Stand57
7 Combination Instrument59
- Combination Instrument 759
- Activation and Test59
- Day-Night Mode61
- Warnings62
- Indicator Lamps64
- Display68
- TRACK Display (Optional)70
- Heated Grip (Optional)71
- Cruise Control Indicator (Optional)72
- Fuel Level Display72
- Coolant Temperature Indicator73
- Trip Master74
- Time75
- ABS Display75
- Shift Warning Light76
- Menu77
- Favorites77
- Trip 178
- Trip 279
- General Info80
- Settings81
- Bluetooth ® (Optional)81
- Distance82
- Temperature83
- Pressure84
- Consumption85
- Language86
- Clock/Date86
- Drl87
- TPMS Warning89
- Quick Selector 190
- Quick Selector 291
- Set Favorites92
- Heated Grips (Optional)93
- Service94
- Extra Functions94
- Warnings95
- Ride Mode96
- Track (Optional)97
- Anti-Wheelie Mode (Optional)98
- Launch Control (Optional)99
- Heated Grips (Optional)99
- Mtc100
- MTC + MSR (Optional)101
- ABS Mode102
- Quickshifter + (Optional)103
- Shift Light103
- KTM MY RIDE (Optional)104
- Pairing (Optional)105
- Audio Player (Optional)107
  - Telephony (Optional)109
8 Ergonomics110
- Handlebar Position110
- Adjusting the Handlebar Position110
- Adjusting the Basic Position of the Clutch Lever112
- Adjusting the Basic Position of the Hand Brake Lever113
- Adjusting the Response of the Hand Brake Lever114
- Adjusting the Basic Position of the Foot Brake Lever115
- Checking the Basic Position of the Shift Lever117
- Adjusting the Basic Position of the Shift Lever118
9 Preparing for Use120
- Advice on Preparing for First Use120
- Running in the Engine122
- Loading the Vehicle122
10 Riding Instructions 10125
- Checks and Maintenance Measures When Preparing for Use125
- Starting the Vehicle126
- Starting off127
- Launch-Control (Optional)128
- Starting off with Launch Control (Optional)128
- Quickshifter + (Optional)130
- Shifting, Riding131
- Engine Traction Torque Control (MSR)137
- Applying the Brakes138
- Stopping, Parking140
- Transporting142
- Refueling143
11 Service Schedule146
- Additional Information146
- Required Work146
- Recommended Work149
12 Tuning the Chassis150
- Fork/Shock Absorber150
- Adjusting the Compression Damping of the Fork150
- Adjusting the Rebound Damping of the Fork152
- Compression Damping of the Shock Absorber153
- Adjusting the Low-Speed Compression Damping of the Shock Absorber154
- Adjusting the High-Speed Compression Damping of the Shock Absorber155
- Adjusting the Rebound Damping of the Shock Absorber157
- Adjusting the Spring Preload of the Shock Absorber158
13 Service Work on the Chassis160
- Raising the Motorcycle with the Rear Lifting Gear160
- Removing the Rear of the Motorcycle from the Lifting Gear160
- Lifting the Motorcycle with the Front Lifting Gear161
- Taking the Motorcycle off the Front Lifting Gear163
- Cleaning the Dust Boots of the Fork Legs164
- Removing the Passenger Seat166
- Mounting the Passenger Seat167
- Removing the Front Rider's Seat168
- Mounting the Front Rider's Seat169
- Checking the Chain for Dirt170
- Cleaning the Chain171
- Checking the Chain Tension173
- Adjusting the Chain Tension175
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide177
14 Brake System 14181
- Anti-Lock Braking System (ABS)181
- Checking the Brake Discs183
- Checking the Front Brake Fluid Level184
- Adding Front Brake Fluid185
- Checking the Front Brake Linings188
- Checking the Free Travel of the Foot Brake Lever189
- Checking the Rear Brake Fluid Level190
- Adding Rear Brake Fluid191
- Checking the Rear Brake Linings193
- Wheels, Tires 15195
- Removing the Front Wheel195
- Installing the Front Wheel197
- Removing the Rear Wheel201
- Installing the Rear Wheel204
- Checking the Rear Hub Damping Rubber Pieces207
- Checking the Tire Condition209
- Checking Tire Pressure211
- Using Tire Repair Spray213
16 Electrical System214
- Daytime Running Light (DRL)214
- Removing the 12-V Battery215
- Installing the 12-V Battery218
- Charging the 12-V Battery220
- Changing the Main Fuse223
- Changing the ABS Fuses226
- Changing the Fuses of Individual Power Consumers228
- Loosening the Headlight Mask with the Headlight230
- Mounting the Headlight Mask with the Headlight231
- Removing the Cover of the Headlight Mask Rack232
- Installing the Cover of the Headlight Mask Rack234
- Changing the Turn Signal Bulb236
- Checking the Headlight Setting237
- Adjusting the Headlight Range238
- Diagnostics Connector239
- Front ACC1 and ACC2240
- ACC1 and ACC2 Rear240
17 Cooling System 17241
- Checking the Antifreeze and Coolant Level242
- Checking the Coolant Level in the Compensating Tank244
- Draining the Coolant246
- Filling/Bleeding the Cooling System248
- Changing the Coolant250
18 Tuning the Engine 18253
- Ride Mode253
- Motorcycle Traction Control (Cornering MTC)254
- Slip Adjustment (Optional)255
- Throttle Response (Optional)255
19 Service Work on the Engine 19257
- Checking the Engine Oil Level257
- Adding Engine Oil262
- Checking the Free Travel of the Clutch Lever264
- Setting the Free Travel of the Clutch Lever265
20 Cleaning, Care266
- Cleaning the Motorcycle266
- Checks and Maintenance Steps for Winter Operation269
21 Storage 21271
- Preparing for Use after Storage273
22 Troubleshooting274
23 Technical Data278
- Engine278
- Engine Tightening Torques280
- Capacities286
- Engine Oil286
- Coolant286
- Fuel286
- Chassis286
- Electrical System288
- Tires289
- Fork289
- Shock Absorber290
- Chassis Tightening Torques292
24 Declarations of Conformity 24299
25 Substances300
26 Auxiliary Substances 26303
27 Standards 27305
28 Index of Special Terms306
29 List of Abbreviations 29307
30 List of Symbols308
- Red Symbols308
- Yellow and Orange Symbols308
- Green and Blue Symbols309
