16 ELECTRICAL SYSTEM
236
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 236)
16.14 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 235)
F02770-10
Main work
–

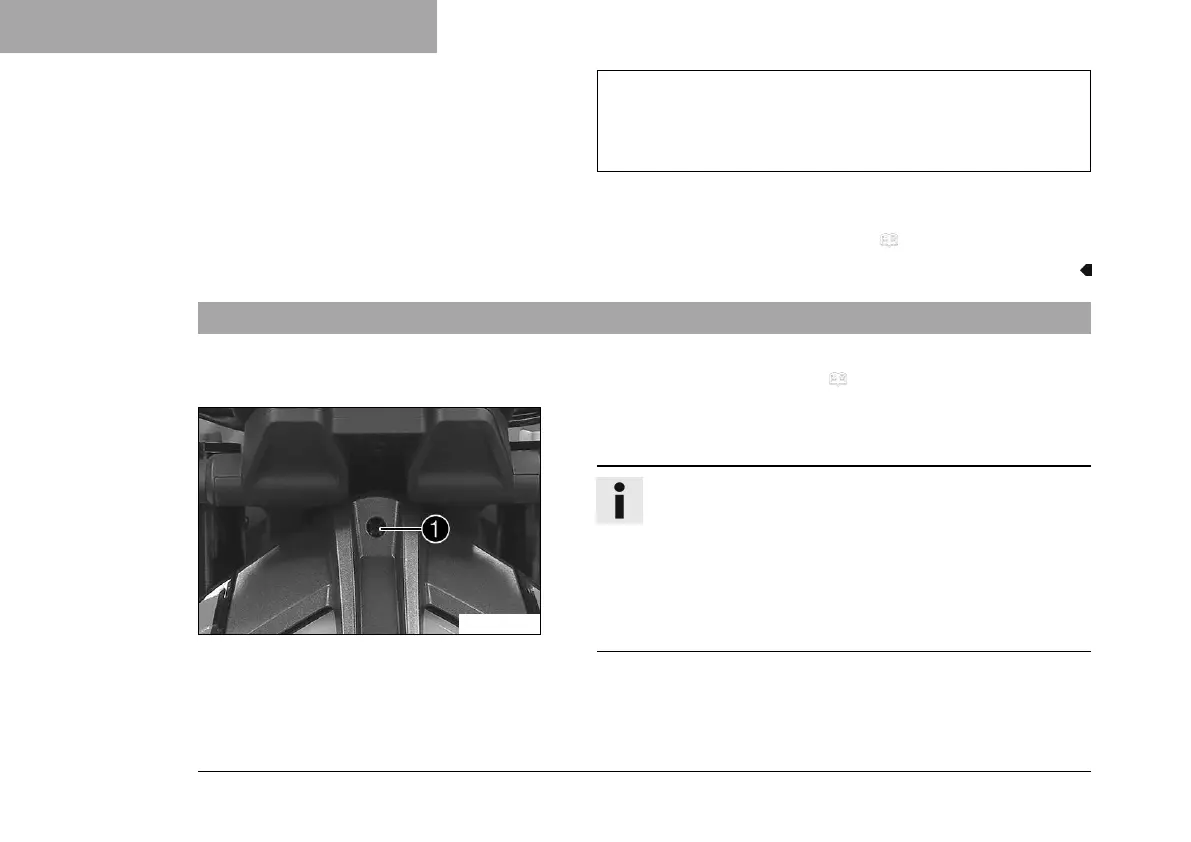

Turn adjusting screw
1
to adjust the headlight range.
Info
Turn clockwise to increase the headlight range; turn
counterclockwise to reduce the headlight range.
If you have a payload, you may have to correct the
headlight range.
Screw
1
also secures the headlight. Ensure the screw
is always screwed in far enough.
