8 ERGONOMICS
116
400692-10

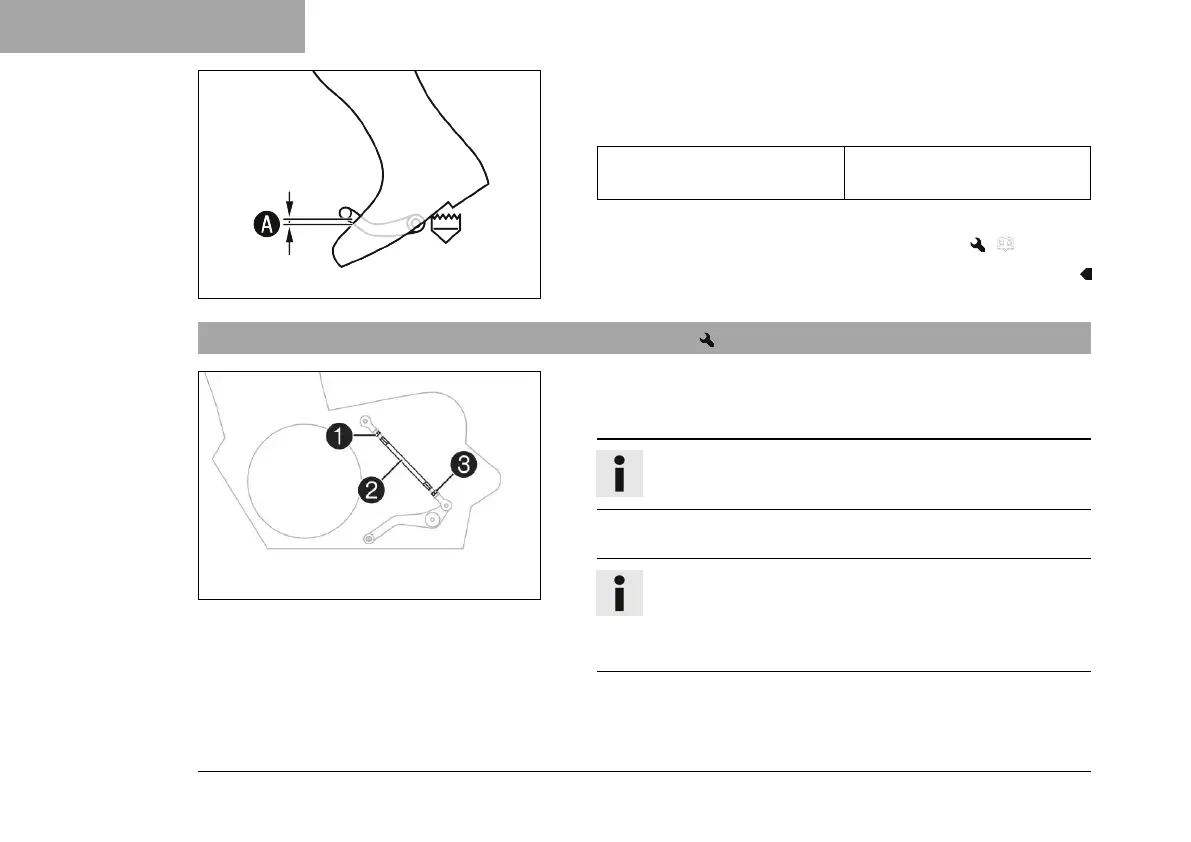

– Sit on the vehicle in the riding position and determine
distance
A
between the upper edge of your boot and the shift
lever.
Distance between shift lever
and upper edge of boot
10 … 20 mm (0.39 …
0.79 in)
» If the distance does not meet specifications:
– Set the basic position of the shift lever. ( p. 116)
8.8 Adjusting the basic position of the shift lever
H02668-10
–
Loosen nut
1
, holding threaded rod
2
.
–
Loosen nut
3
, holding threaded rod
2
.
Info
Nut
3
has a left-handed thread.
–
Turn threaded rod
2
to adjust the shift lever.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift procedure.
–
Tighten nut
3
while holding threaded rod
2
.
