8 ERGONOMICS
112

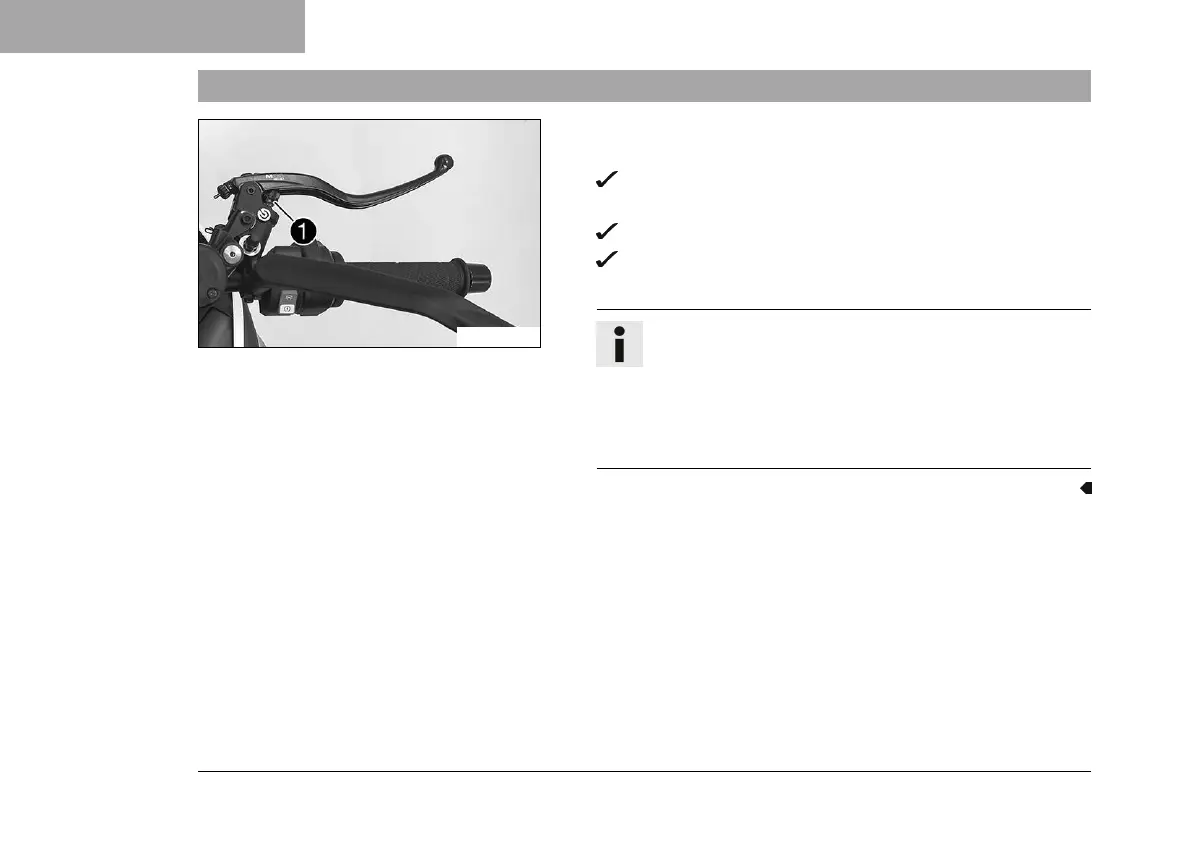

8.5 Adjusting the response of the hand brake lever
K01350-12
– Adjust the response of the hand brake lever with adjusting
screw
1
.
19 - Setting with large hand brake lever transmission ratio
(soft response, more lever travel, less lever force).
20 - Setting with balanced hand brake lever response.
21 - Setting with small hand brake lever transmission
ratio (hard response, less lever travel, more lever force).
Info
The transmission ratio and, therefore, the response of
the hand brake lever can be changed.
Only turn the adjusting screw by hand, and do not use
force.
Do not make any adjustments while riding.
