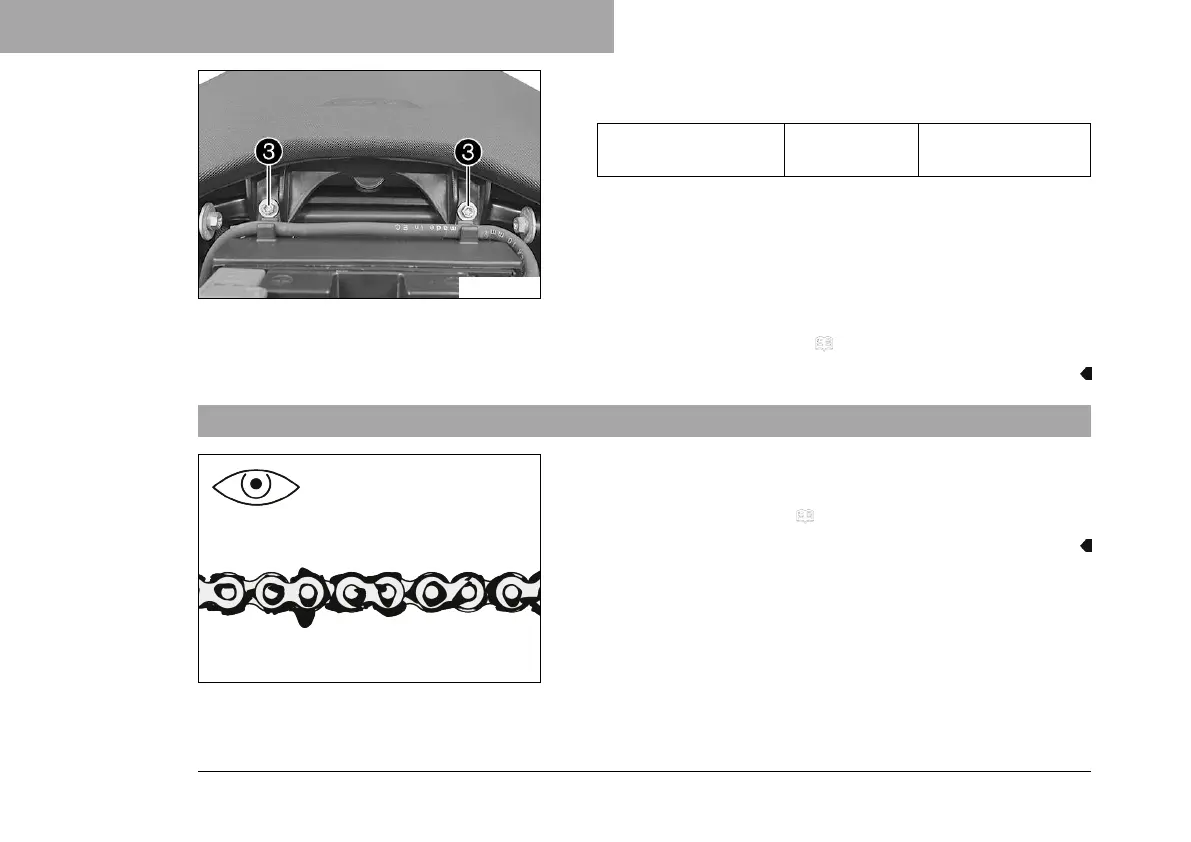

13 SERVICE WORK ON THE CHASSIS

168

V01239-11

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

– Finally, check that the front rider's seat is correctly mounted.

Finishing work

– Mount the passenger seat. ( p. 165)

13.10 Checking the chain for dirt

400678-01

– Check the chain for heavy soiling.

» If the chain is very dirty:

– Clean the chain. ( p. 169)
