SERVICE WORK ON THE ENGINE 19

263

– Check the routing of the clutch cable.

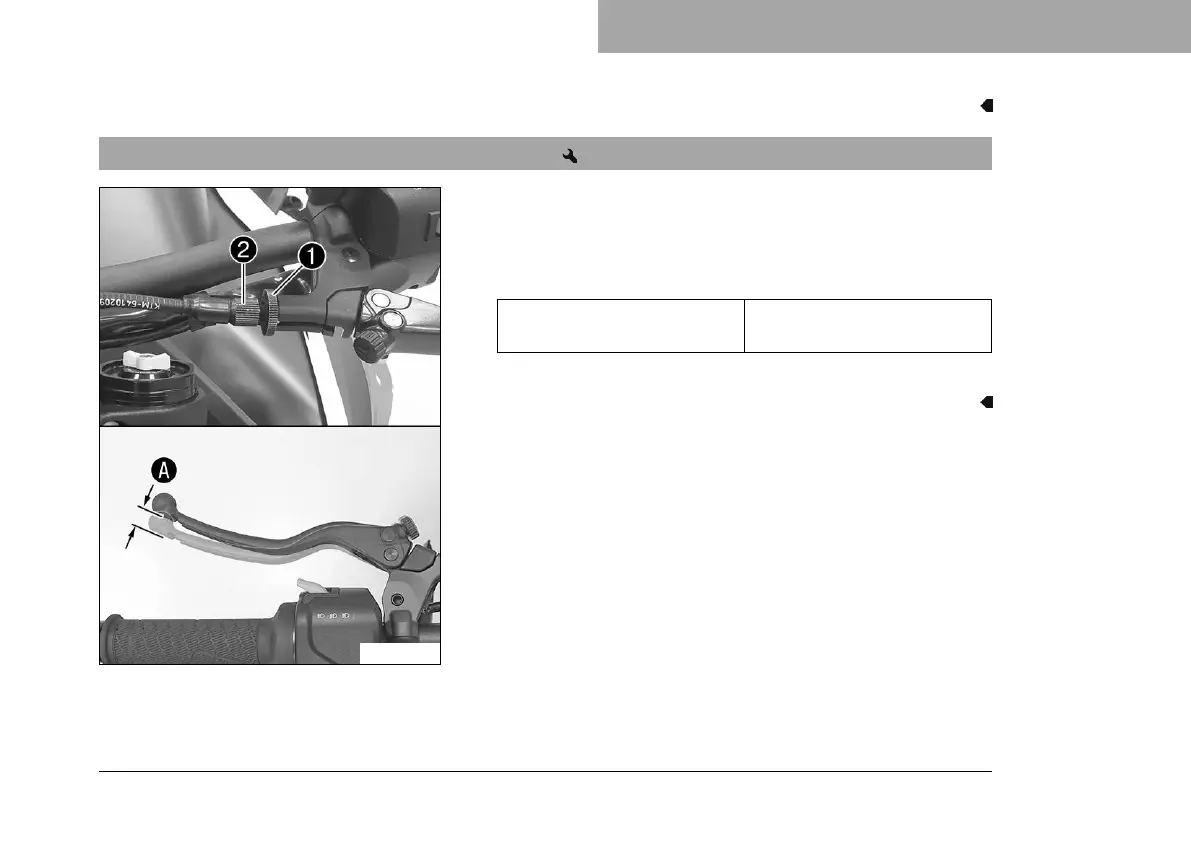

19.5 Setting the free travel of the clutch lever

F02781-10

– Move the handlebar to the straight-ahead position.

–

Loosen lock nut

–

Adjust the free travel

by turning adjusting screw

Guideline

Free travel of clutch

lever

5 mm (0.2 in)

–

Tighten lock nut

Default Chapter5
