FRONT LOADER
Check the fixed points on the body of the tractor where
the front loader must be installed.

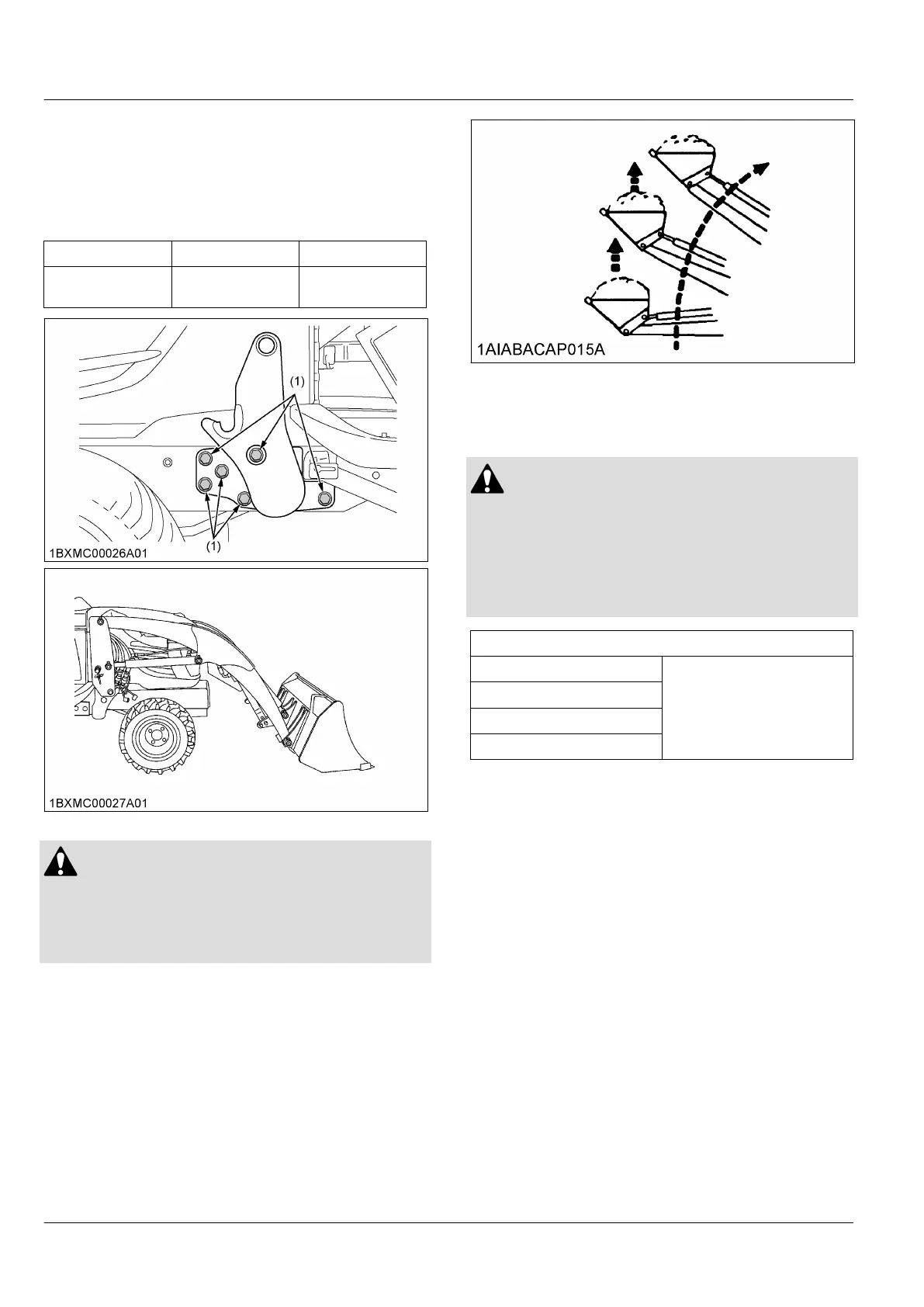

Install the frame of front loader to the frame of tractor
as shown in the following figures.
Location Bolt/Nut Required Torque
Main frames M14 bolts or nuts
147 N⋅m
(15.0 kgf⋅m)
(1) 6-M14 bolts
DANGER
To avoid serious injury or death:
• Pay special attention when lifting the load.
Keep the bucket correctly positioned to prevent
spillages.
IMPORTANT :
• Not all risks are listed.
• Refer to the front loader operator’s manual.
WEIGHT OF THE IMPLEMENTS
AS THE REAR BALLAST
WARNING
To avoid serious injury or death:
• For tractor stability and operator safety, add
the rear ballast to the rear of the tractor in
the form of 3-point counter weight and the rear
wheel ballast. The amount of the rear ballast will
depend on the application.
Implement as Counter Weight
Box Blade
Approx. 190 kg
Rear Blade
Rotary Tiller
Ballast Box
IMPLEMENT LIMITATIONS FRONT LOADER
