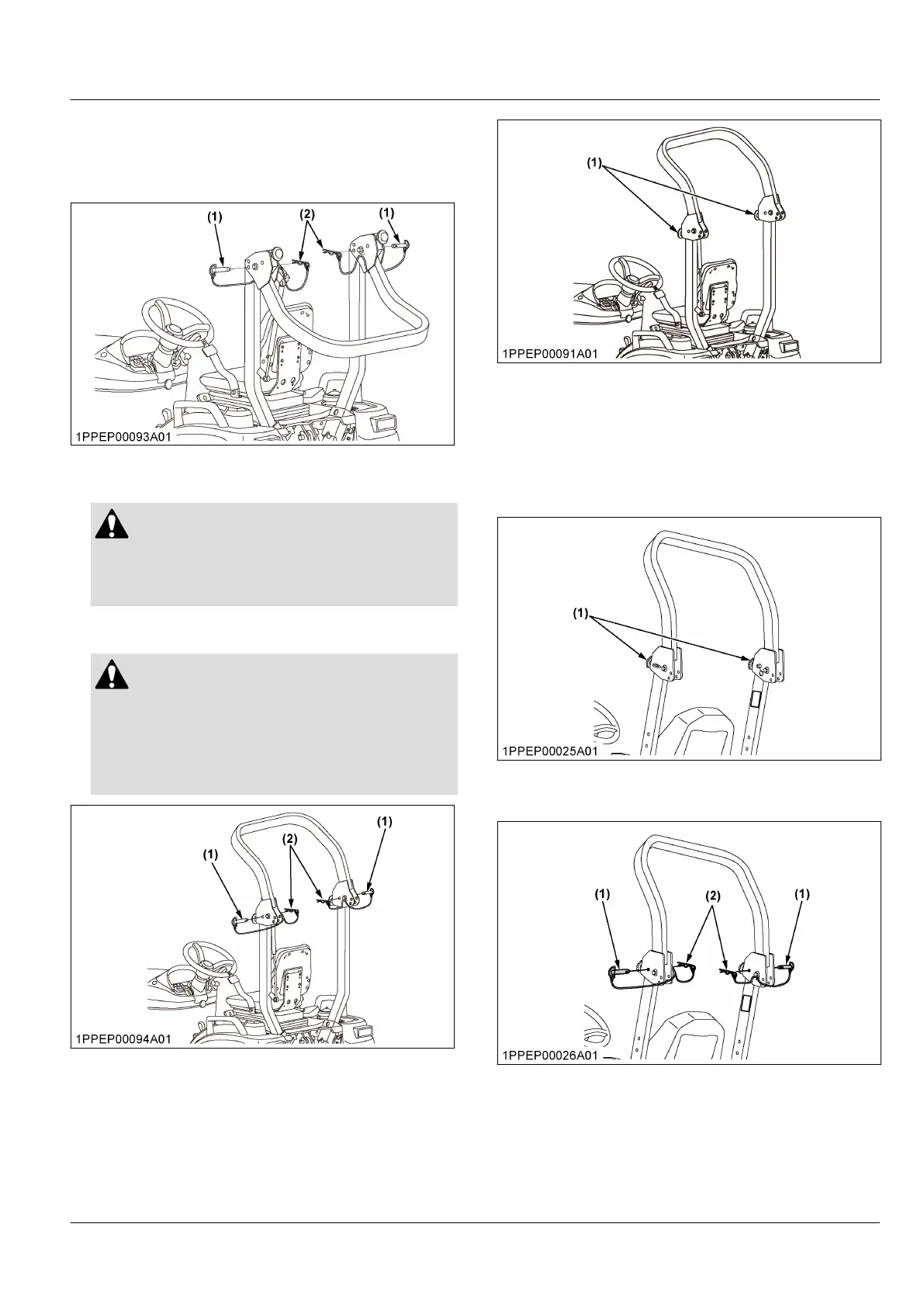

1.2 Raising the ROPS with damper to the
upright position
1. Remove both snap pins and set pins.
(1) Set pins (2) Snap pins
2. Raise the ROPS to the upright position.
CAUTION
To avoid personal injury:
• Hold the ROPS tightly with both hands and
raise the ROPS slowly and carefully.
3. Align the set-pin-holes and insert both set pins.
Secure the set pins with the snap pins.
CAUTION
To avoid personal injury:
• Make sure that both set pins are properly
installed as soon as the ROPS is in the
upright position and secured with the snap
pins.
(1) Set pins
(2) Snap pins
4. Tighten the holding-knob-bolts.
(1) Holding knob bolts
2. Model of the ROPS without
damper
2.1 Folding the ROPS without damper
1. Loosen the holding-knob-bolts.
(1) Holding knob bolts
2. Remove both set pins.
(1) Set pins
(2) Snap pins
OPERATION OF THE FOLDABLE ROPS OPERATING THE TRACTOR
BX231D
47
