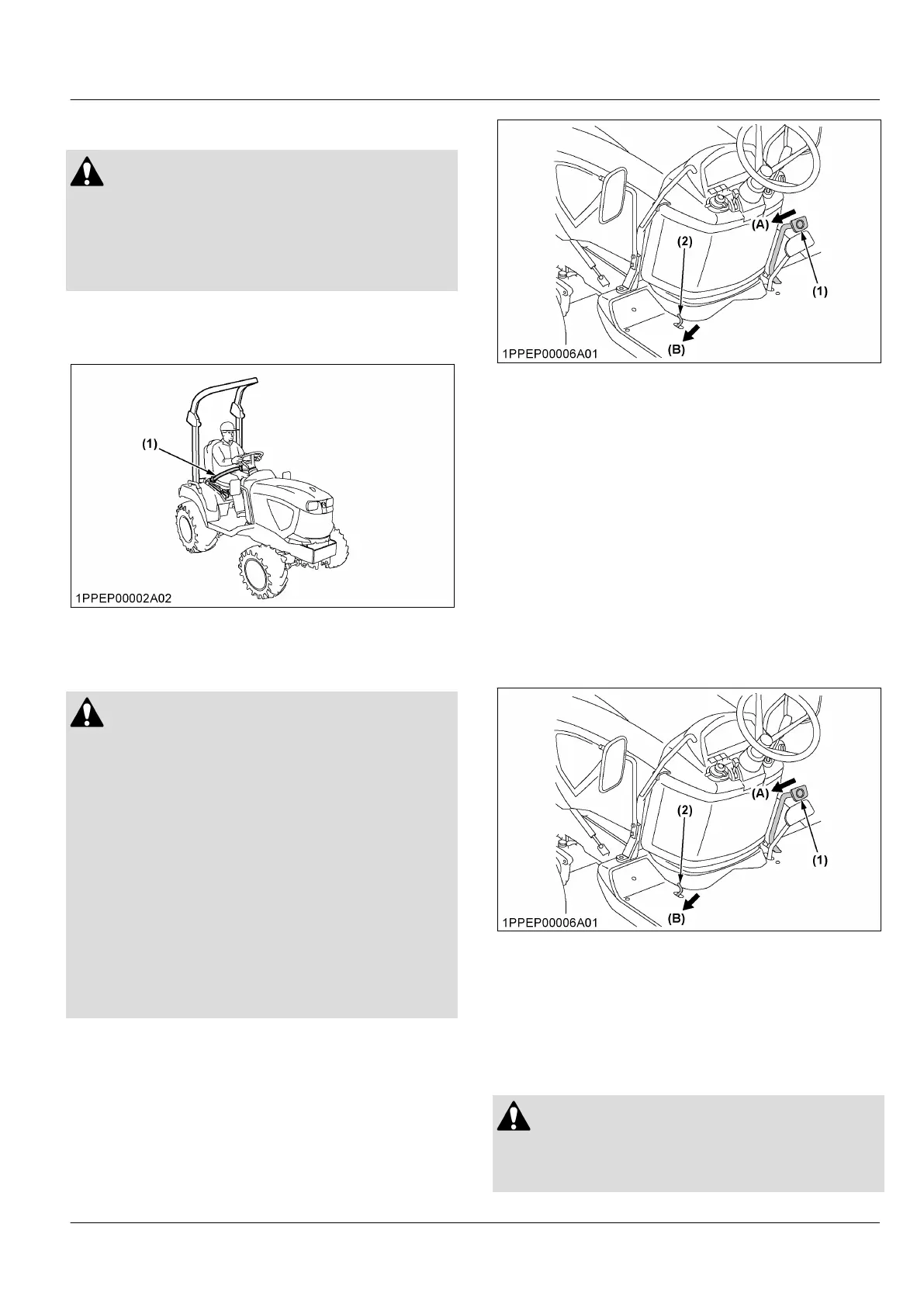

2. Seat belt
WARNING
To avoid serious injury or death:
• Always use the seat belt when the ROPS is
installed.
• Do not use the seat belt if the tractor is not
equipped with ROPS.
Adjust the seat belt for proper fit and connect it to the
buckle. The seat belt is auto-locking retractable type
(Deluxe type only).
(1) Seat belt
3. Brake pedal and parking brake
lock pedal
WARNING
To avoid serious injury or death:
• Do not brake suddenly.
An accident may occur as a result of a heavy
towed load shifting forward or loss of control.
• To avoid skidding and loss of steering control
when driving on icy, wet, or loose surfaces,
make sure that the tractor is correctly ballasted,
operated at reduced speed, and operated with
the front wheel drive engaged (if equipped).
• The braking characteristics are different
between a 2-wheel drive and 4-wheel drive.
Know the difference between 2-wheel drive and
4-wheel drive and use them carefully.
• Engage the 4-wheel drive when travelling down
a slope.
(1) Brake pedal
(2) Parking brake lock pedal
(A) Depress
(B) Push down parking brake
lock pedal while depressing
brake pedal
3.1 How to use the parking brake
NOTE :
• It is recommended that the operator practice
engaging and disengaging the parking brake on
a flat surface without the engine running before
operating the tractor for the first time.
To set the parking brake
1. Depress the brake pedal.
2. Latch the brake pedal on pushing and holding the
parking-brake-lock-pedal.
3. Release the brake pedal.
(1) Brake pedal
(2) Parking brake lock pedal
(A) Depress
(B) Push down the parking
brake lock pedal while de-
pressing the brake pedal
To release the parking brake
Depress the brake pedal again.
4. Emergency hand brake lever
WARNING
To avoid serious injury or death:
• Do not use the emergency-hand-brake during
normal operation. If the emergency-hand-brake
FOOT AND HAND CONTROLS
INSTRUMENT PANEL AND CONTROLS
