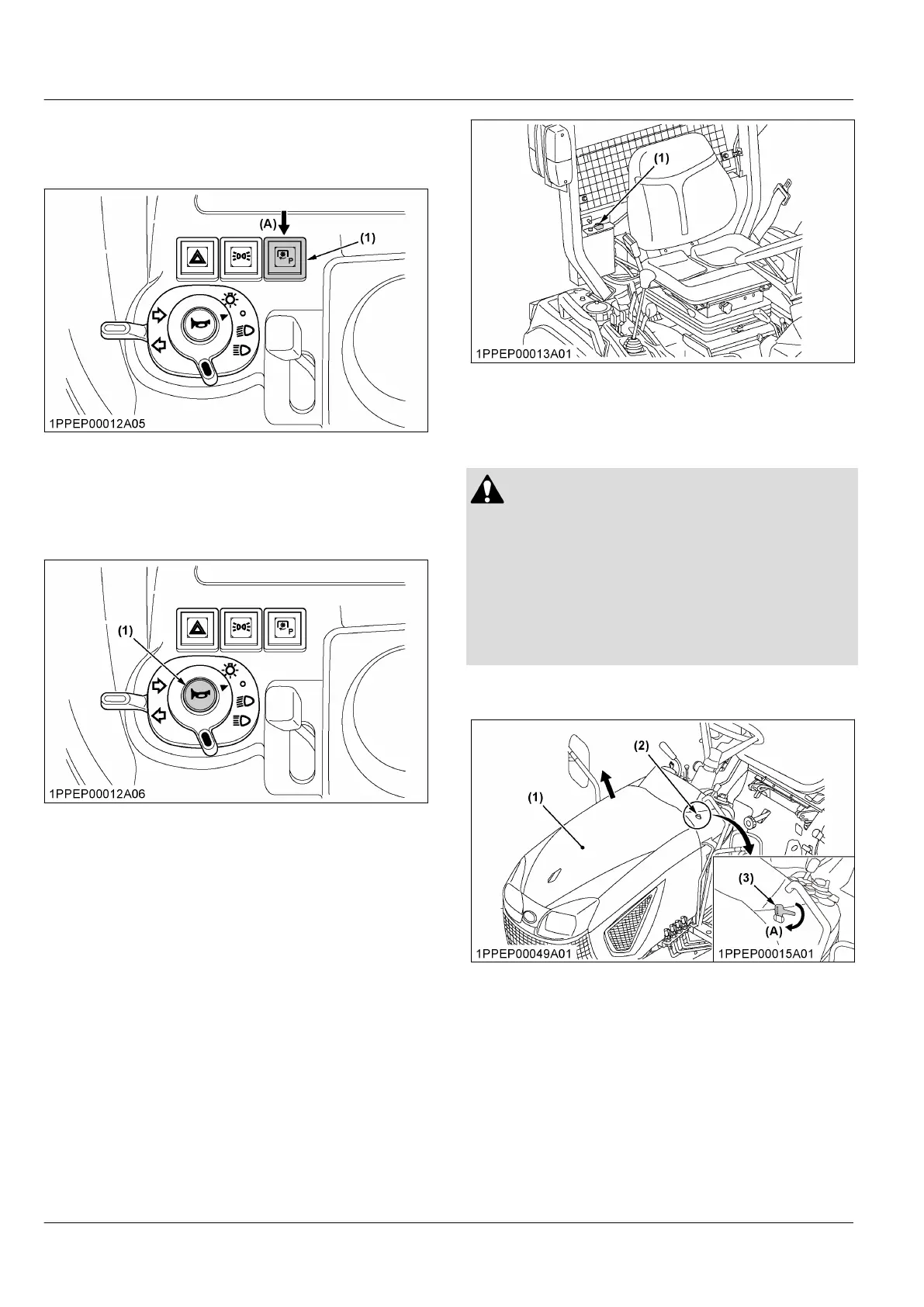

7. Stationary PTO switch
When you wish to get off the seat and operate the PTO,
push the stationary-PTO-switch.
(1) Stationary PTO switch (A) Push on-off
8. Horn button
The horn will sound when the key switch is in the on
position and the horn button pressed.
(1) Horn button
9. Beacon light switch [If equipped
with the beacon light and if not
equipped with the CAB]
1. To activate the beacon light, press the beacon-light-
switch.
2. To deactivate the beacon light, press the beacon-
light-switch again.
The beacon-light-switch is only operative, when the key
switch is at the on position.
(1) Beacon light switch
10. Bonnet open shaft
Bonnet-open-shaft is the shaft to open the bonnet.
WARNING
To avoid serious injury or death from contact with
moving parts:
• Never open the bonnet or engine side cover
while the engine is running.
• Do not touch the muffler or the exhaust pipes
while they are hot.
Touching the hot muffler or exhaust pipes could
cause severe burns.
1. Turn the shaft with your key or tool to release the
latch to open the bonnet, and open the bonnet.
(1) Bonnet
(2) Bonnet open shaft
(3) Key
(A) Turn
INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL, SWITCHES AND HAND CONTROLS
